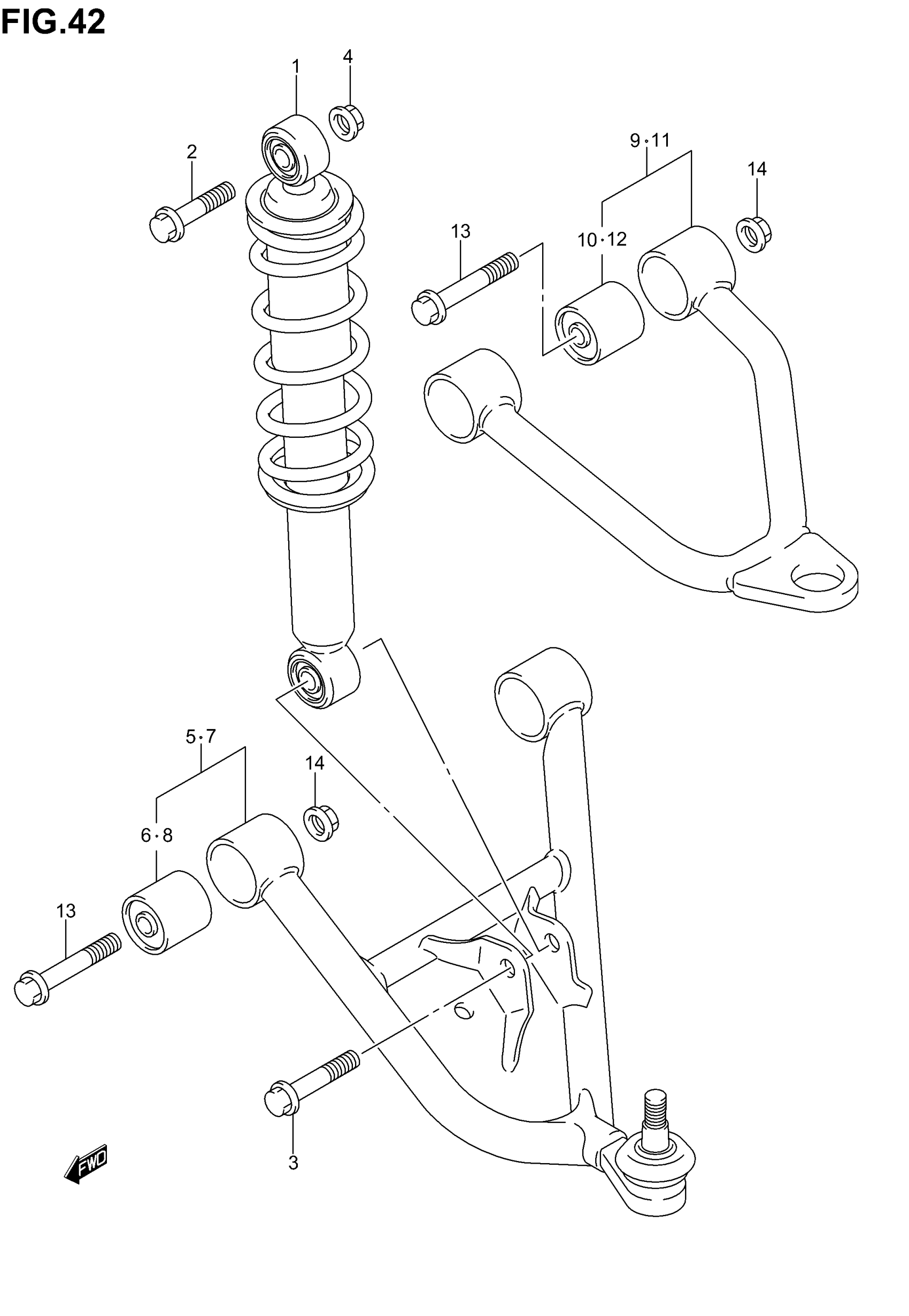

Suzuki LT-F250 (2006) SUSPENSION ARM (MODEL K2/K3/K4) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL K2/K3

52100-05G00-019

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL K4

52100-05G10-019

Unavailable

2

BOLT, UPPER

09103-10019

$2.63

3

BOLT, LOWER

09103-10126

$4.50

4

NUT

08319-31107

$2.73

5

ARM SET, SUSPEN | Includes Item(s) 6 This part replaces 52410-05810.

52410-05820

$282.95

6

BUSH (10X35.1X38)

09319-10055

$21.02

7

ARM SET,SUSPENS | Includes Item(s) 8 This part replaces 52420-05810.

52420-05820

Unavailable

8

BUSH (10X35.1X38)

09319-10055

$21.02

9

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 10 This part replaces 52430-05810.

52430-05811

Unavailable

10

BUSH (10X35.1X38)

09319-10055

$21.02

11

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 12 This part replaces 52440-05810.

52440-05811

Unavailable

12

BUSH (10X35.1X38)

09319-10055

$21.02

13

BOLT (10X60)

09103-10301

$5.98

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
