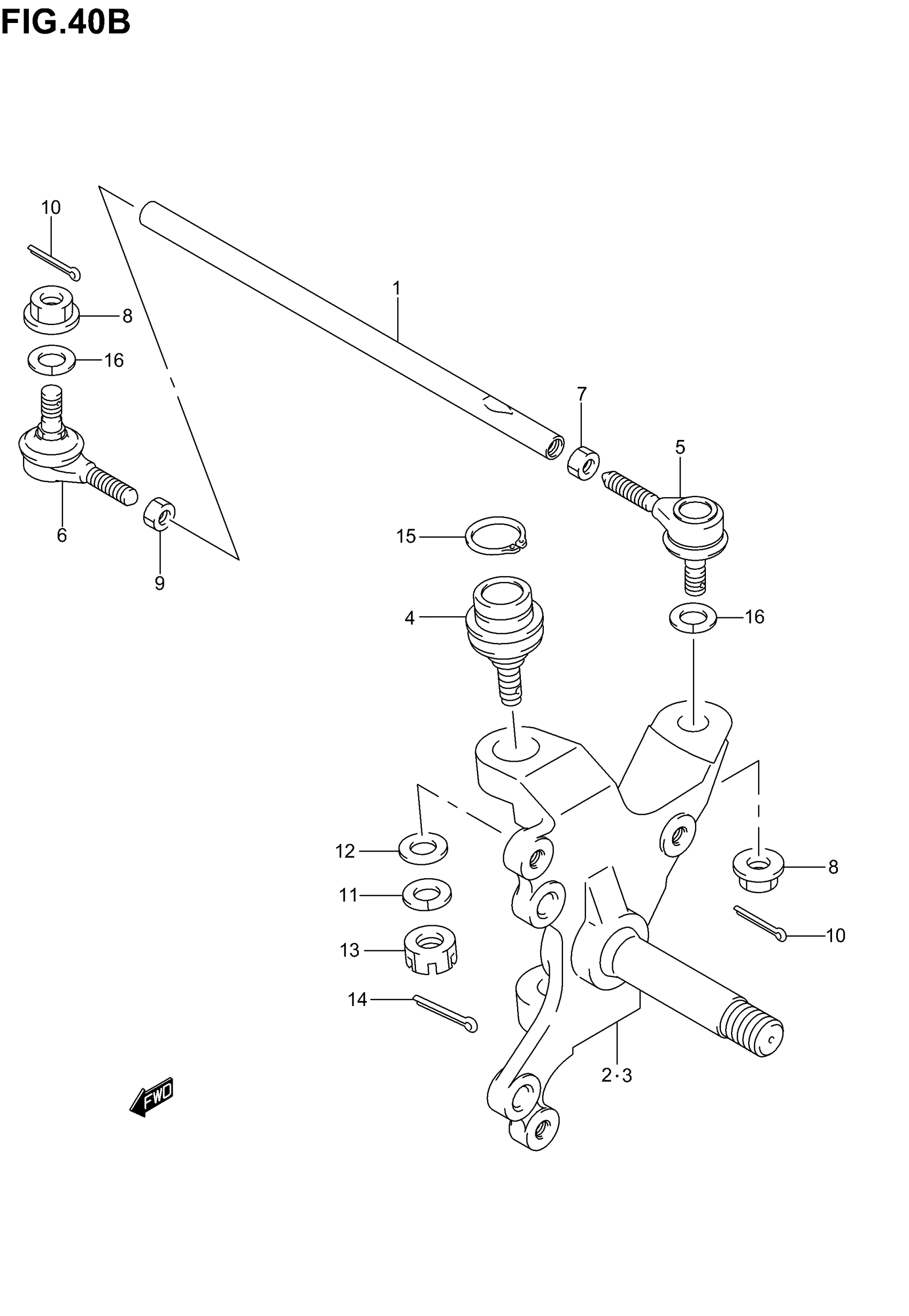

Suzuki LT-F250 (2006) STEERING KNUCKLE (MODEL K5/K6) Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-05G00

$26.38

2

KNUCKLE, STEERING RH

51230-05G20

$303.03

3

KNUCKLE, STEERING LH

51240-05G20

$303.03

4

END, KNUCKLE STEERING This part replaces 51210-31G00.

51210-31G10

$65.76

5

ROD, END RH

51260-21G00

$66.46

6

ROD, END LH

51270-21G00

$66.46

7

NUT, TIE ROD RH

09140-10043

$2.68

8

NUT This part replaces 08314-40103.

08314-4010B

$2.50

9

NUT, TIE ROD LH

09140-10027

$1.49

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

WASHER, KNUCKLE END

09162-10008

$3.04

12

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

13

NUT This part replaces 08314-40103.

08314-4010B

$2.50

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57

16

WASHER, ROD END

09162-10008

$3.04
