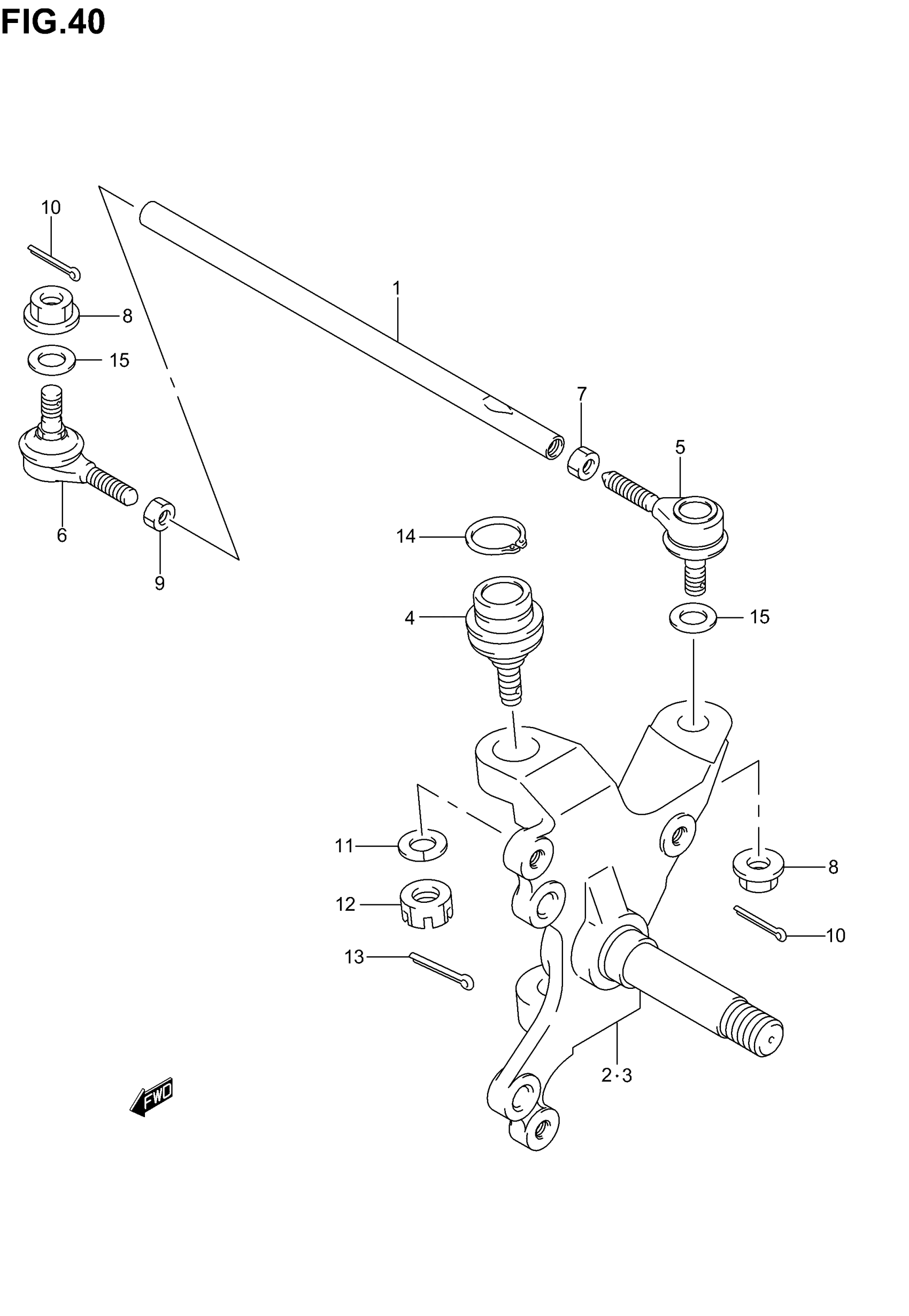

Suzuki LT-F250 (2006) STEERING KNUCKLE (MODEL K2/K3) Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-05G00

$26.38

2

KNUCKLE,STEERIN This part replaces 51230-05G00.

51230-05G01

Unavailable

3

KNUCKLE,STEERIN This part replaces 51240-05G00.

51240-05G01

Unavailable

4

END, KNUCKLE STEERING UPPER

51210-05G00

$84.32

5

ROD, END RH | MODEL K2

51260-25C00

Unavailable

5

ROD, END RH | MODEL K3

51260-07G01

$82.02

6

ROD, END LH | MODEL K2

51270-25C00

$81.52

6

ROD, END LH | MODEL K3

51270-07G01

Unavailable

7

NUT, TIE ROD RH

09140-10043

$2.68

8

NUT, ROD END

08319-31107

$2.73

9

NUT, TIE ROD LH

09140-10027

$1.49

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

WASHER,LOCK This part replaces 08321-01123.

08321-0112A

$2.10

12

NUT This part replaces 08314-40123.

08314-4012A

$2.50

13

PIN This part replaces 04111-30208.

04111-3020A

$1.50

14

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57

15

WASHER, ROD END | MODEL K3

09181-11001

$4.90
