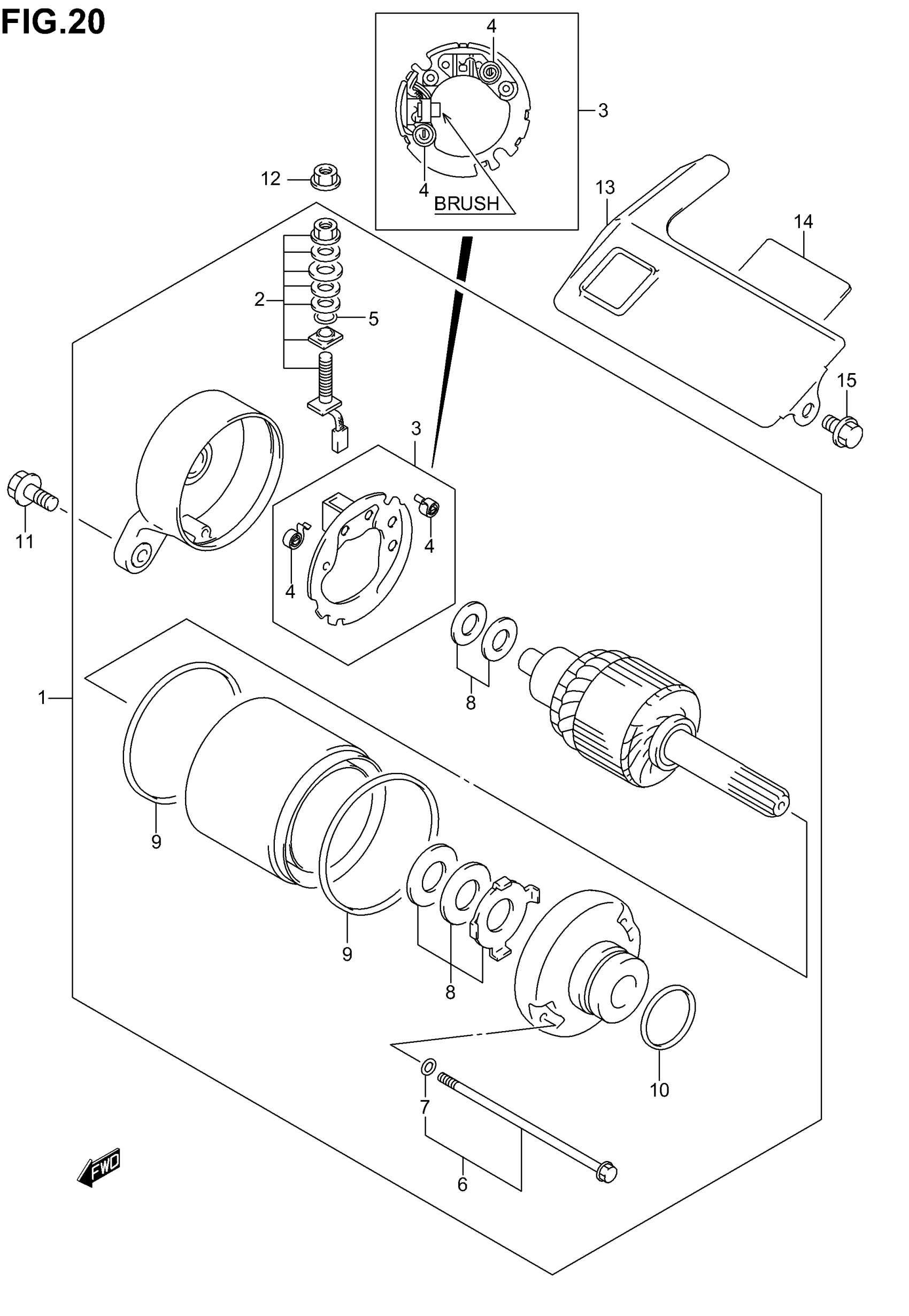

Suzuki LT-F250 (2006) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-02C10

$649.60

2

BRUSH TERMINAL SET

31130-13E00

$44.18

3

BRUSH HOLDER SET

31132-33E00

$67.07

4

SPRING, BRUSH

31135-31300

$4.96

5

O RING

31143-49040

$3.71

6

BOLT SET

31280-19F00

$20.45

7

O RING

31156-13E00

$4.35

8

WASHER SET

31170-19B10

$12.57

9

O RING

31264-13E00

$6.68

10

O RING (D:3.1,ID:24.4)

09280-25002

$1.99

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

COVER, STARTING MOTOR

31210-05G00

$9.42

14

CUSHION (50X42X2.0) | 30X50X2 This part replaces 51553-42AA0.

51553-15D40

$7.18

15

BOLT This part replaces 01547-06103.

01547-0610B

$2.45
