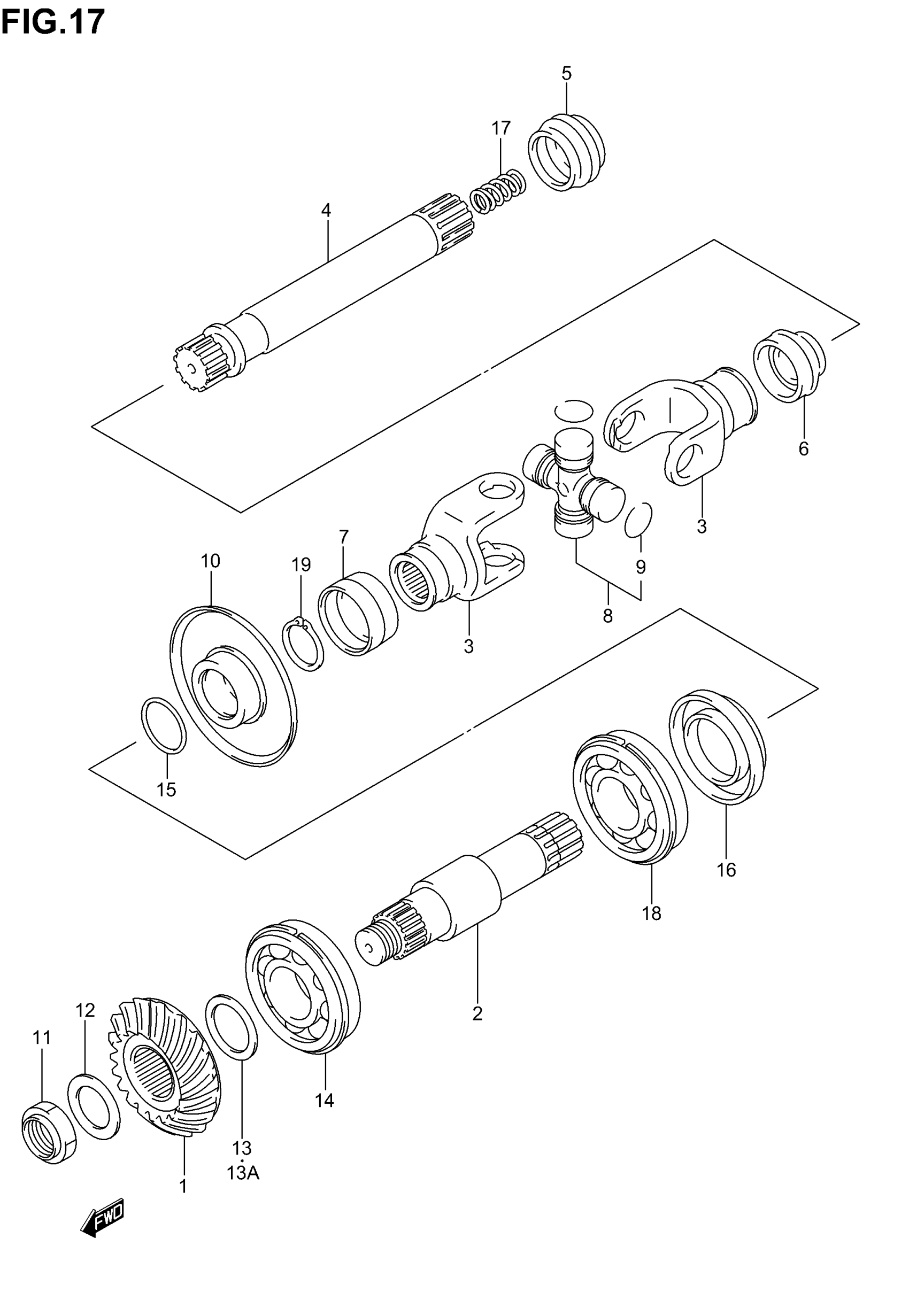

Suzuki LT-F250 (2006) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVEN BEVEL | NT:21

24921-05G00

Unavailable

2

SHAFT, SEC DRIVEN OUTPUT RR

24971-05G00

Unavailable

3

YOKE, REAR DRIVE OUTPUT

27140-03G00

$117.76

4

SHAFT SET, PROPELLER | MODEL K2/K3

27151-05810

$137.68

4

SHAFT, PROPELLER | MODEL K4/K5/K6

27151-05G10

$116.48

5

BOOT, PROPELLER SHAFT

27153-03G00

$10.47

6

BOOT,PROPELLER This part replaces 27153-05G00.

27153-05G01

$3.60

7

BOOT,RR OUTPUT This part replaces 27153-05G10.

27153-05G11

$3.67

8

JOINT SET,UNIVERSAL | MODEL K2/K3 This part replaces 27200-19810.

27200-19811

$59.54

8

JOINT SET, UNIVERSAL RR | MODEL K4/K5/K6; Includes Item(s) 9

27200-38810

$108.23

9

CIRCLIP

09380-20016

$2.32

10

COLLAR, OUTPUT OIL SEAL

27590-05G00

$62.32

11

NUT, SEC DRIVEN

09140-20012

$4.32

12

WASHER, SEC DRIVEN | 20X32X1.00

09181-20223

$2.92

13

SHIM, SEC DRIVEN GEAR | 25X34X0.60,MODEL K2/K3/K4/K5

09181-25051

$3.50

13

SHIM, SEC DRIVEN GEAR | 25X34X0.65,MODEL K2/K3/K4/K5

09181-25052

$3.50

13

SHIM (25X34X0.7) | 25X34X0.70,MODEL K2/K3/K4/K5 This part replaces 09181-25053.

09181-25160

$2.93

13

SHIM, SEC DRIVEN GEAR | 25X34X0.75,MODEL K2/K3/K4/K5

09181-25054

$3.50

13

SHIM 0.8 | 25X34X0.80,MODEL K2/K3/K4/K5 This part replaces 09181-25055.

09181-25162

$2.42

13

SHIM, SEC DRIVEN GEAR | 25X34X0.85,MODEL K2/K3/K4/K5

09181-25056

$3.42

13

SHIM 0.9 | 25X34X0.90,MODEL K2/K3/K4/K5 This part replaces 09181-25057.

09181-25164

$2.42

13

SHIM, SEC DRIVEN GEAR | 25X34X0.95,MODEL K2/K3/K4/K5

09181-25058

$3.50

13

WASHER, 5TH DRIVE | 25X34X1.00,MODEL K2/K3/K4/K5 This part replaces 09181-25059.

09181-25167

$3.12

13

SHIM, SEC DRIVEN GEAR | 25X34X1.05,MODEL K2/K3/K4/K5

09181-25060

$3.42

13

SHIM, SEC DRIVEN GEAR | 25X34X1.10,MODEL K2/K3/K4/K5

09181-25061

$3.85

13

SHIM, SEC DRIVEN GEAR | 25X34X1.15,MODEL K2/K3/K4/K5

09181-25062

$3.27

13

SHIM, SEC DRIVEN GEAR | 25X34X1.20,MODEL K2/K3/K4/K5

09181-25063

$3.77

13A

SHIM SET,SEC DRIVEN BEVEL | MODEL K6 T:0.55/0.58/0.60/0.63/0.65/0.68/ 0.70/0.73/0.75/0.78/0.80/0.83/ 0.88/0.90/0.93/0.95/0.98/1.00/ 1.03/1.05/1.08/1.10/1.13/1.15/ 1.18/1.20/1.23/1.25/1.28/1.30/ 1.33/1.35/1.38/1.40

24945-03811

$111.58

14

BEARING, SECONDARY RR | 25X62X17

09262-25135

$47.00

15

O RING (D:1.9,ID:24.5)

09280-25005

$2.12

16

SEAL, OIL (35X62X14.8) This part replaces 09283-35008.

09283-35052

$13.30

17

SPRING, PROPELLER SHAFT | MODEL K2/K3

09440-14038

$4.71

17

SPRING, PROPELLER SHAFT | MODEL K4/K5/K6

09440-12038

$4.04

18

BEARING, SECONDARY RR

08173-63050

$39.15

19

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.03
