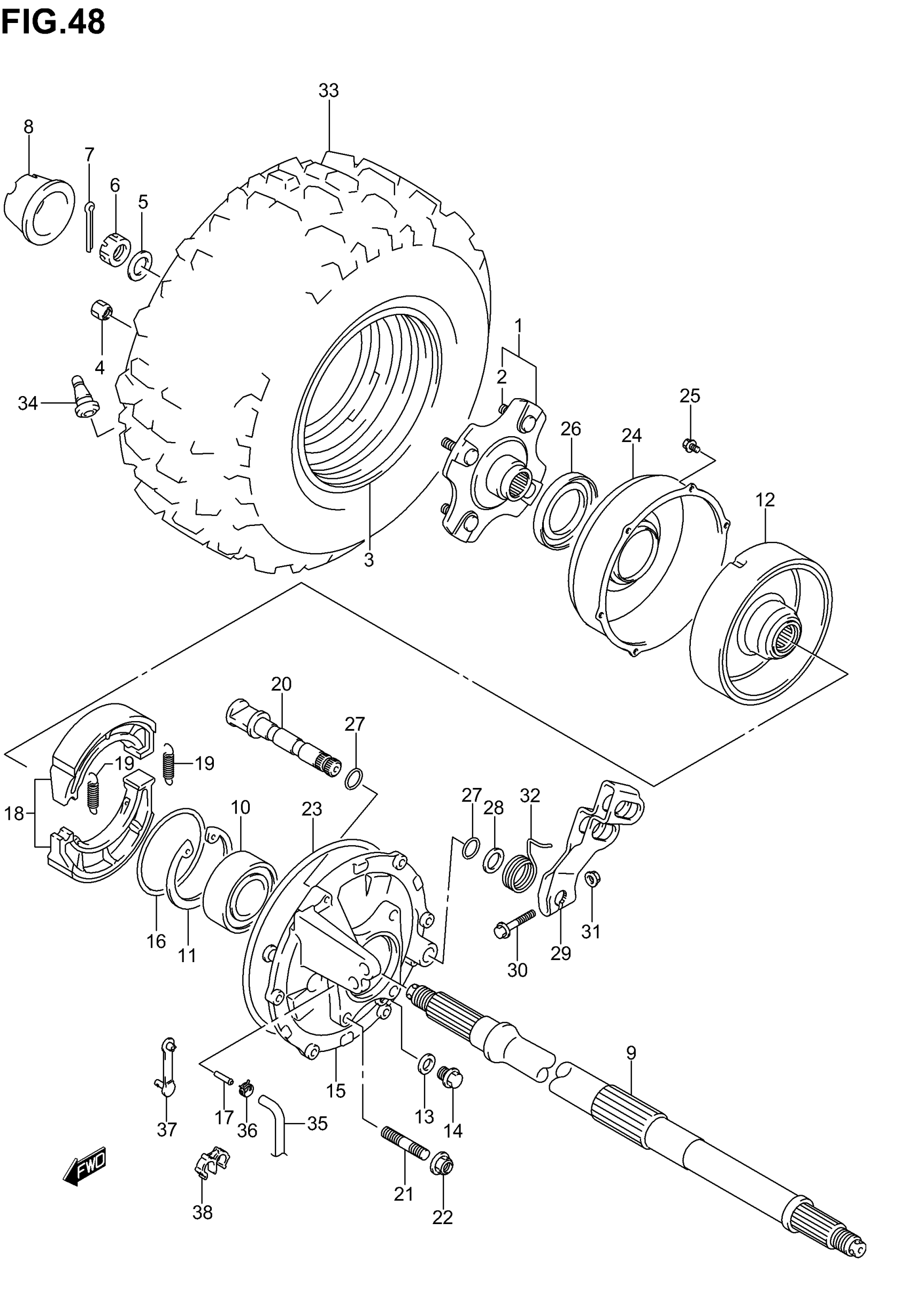

Suzuki LT-F250 (2006) RIGHT REAR WHEEL (MODEL K2/K3) Diagram

#

Description
Price

1

HUB, REAR WHEEL RH | Includes Item(s) 2

64110-05G10

$254.90

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (9X7.0AT) (SILVER)

65310-05G00-YL8

$340.33

4

NUT

09140-10021

$2.03

5

WASHER

09164-18004

$3.76

6

NUT, HUB

09141-18010

$10.11

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

AXLE, REAR This part replaces 64711-05G00.

64711-05G10

$685.68

10

BEARING(30X62X2 This part replaces 09267-30013.

09267-30015

$126.27

11

CLIP This part replaces 08331-41626.

08331-4162A

$3.89

12

DRUM, BRAKE This part replaces 64120-05G00.

64120-05G10

$300.05

13

WASHER, DRAIN PLUG

09161-10007

$1.72

14

PLUG, DRAIN

09247-10008

$1.97

15

PANEL, BRAKE ANCHOR This part replaces 64210-05G00.

64210-05G01

$303.38

16

O RING This part replaces 09280-68008.

09280-68011

$2.92

17

UNION, PANEL

09364-04004

$13.12

18

SHOE SET, BRAKE

64400-05810

$55.17

19

.SPRING (L:37.8) | MODEL K2

09443-07044

$3.04

19

SPRING, SHOE | MODEL K3

55421-20E00

$2.92

20

CAM, REAR BRAKE This part replaces 64440-05G00.

64440-05G01

$25.46

21

BOLT, PANEL (10X13) | MODEL K2

09108-10138

Unavailable

21

BOLT, PANEL | MODEL K3

09108-10089

$4.16

22

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

23

O RING, PANEL

09280-00039

$14.26

24

COVER, REAR BRAKE

64123-05G00

$102.72

25

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

26

DUST SEAL, DRUM COVER

64124-05G00

$27.66

27

O RING, CAM

09280-14004

$1.65

28

WASHER

09160-14056

Unavailable

29

LEVER, BRAKE CAM

64451-05G00

$39.81

30

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

31

NUT This part replaces 08316-10063.

08316-1006B

$2.50

32

SPRING, CAM LEVER

64484-05G00

$8.93

33

TIRE, REAR (AT22X10.9) This part replaces 65110-05G00.

65110-05G20

$214.82

34

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

$8.85

35

HOSE,RR BRAKE B This part replaces 64270-05G00.

64270-05G01

$16.77

36

CLIP, HOSE

09401-06405

$2.45

37

CLAMP

09407-03401

$3.07

38

CLIP, HOSE & CABLE

09408-00200

$2.67
