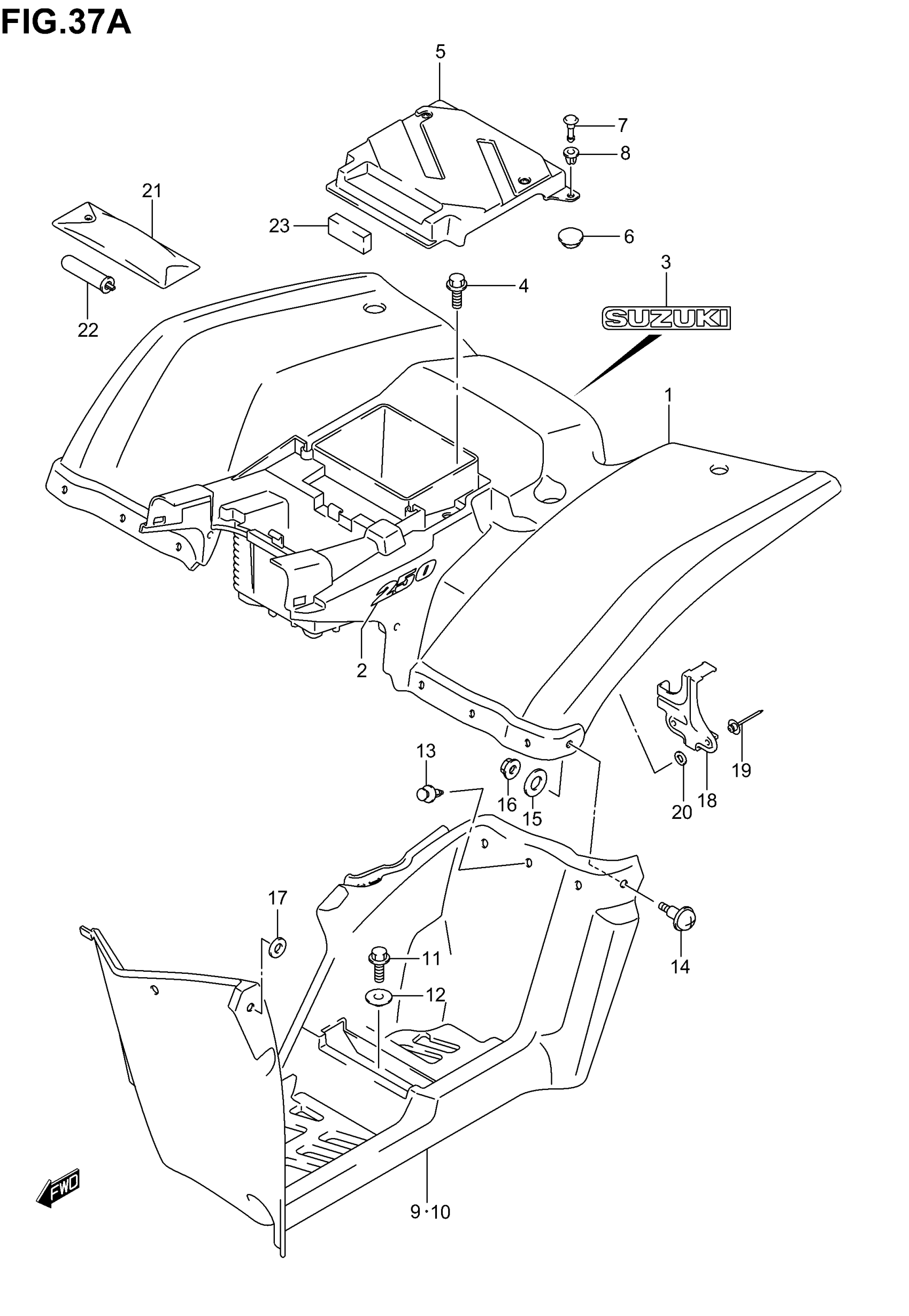

Suzuki LT-F250 (2006) REAR FENDER (MODEL K5) Diagram

#

Description
Price

1

FENDER, REAR (GREEN) | MODEL K5

63111-05G01-YT8

Unavailable

1

FENDER, REAR (RED)

63111-05G01-YT9

Unavailable

1

FENDER, REAR (YELLOW) | MODEL K5

63111-05G01-YU1

Unavailable

1

FENDER, REAR (BLACK) | MODEL K6

63111-05G01-019

Unavailable

1

FENDER, REAR (GREEN) | MODEL K6

63111-05G01-YLG

Unavailable

2

EMBLEM, "250" | MODEL K5

68171-05G00-AYC

Unavailable

2

EMBLEM, "250" | MODEL K6

68171-05G00-CFP

Unavailable

3

EMBLEM,SUZUKI This part replaces 68171-03G20-20H.

68171-03G21-20H

$15.17

4

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

5

COVER, REAR FENDER | MODEL K5 This part replaces 63121-05G00.

63121-05G10

$47.07

5

COVER, REAR FENDER | MODEL K6

63121-05G10

$47.07

6

CAP(OD:16) This part replaces 09250-08007.

09250-08020

$1.67

7

CLIP

09409-08329

$2.40

8

GROMMET

09409-08330

$2.38

9

MUD GUARD, FOOTREST RH (BLACK)

63331-05G00-291

$188.20

10

MUD GUARD, FOOTREST LH (BLACK)

63341-05G00-291

$174.23

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

12

WASHER

09169-06076

$3.05

13

CLIP

09409-08335

$2.47

14

SCREW

09136-05038

$2.96

15

WASHER

09160-05046

$1.92

16

NUT

09159-05043

$2.22

17

WASHER, FOOTREST SIDE This part replaces 53341-38F00.

53341-38F01

$3.26

18

PLATE, CDI UNIT This part replaces 47413-05G00.

47413-05G01

Unavailable

19

RIVET

09229-04020

$2.66

20

WASHER

08322-01047

$1.86

21

TOOL ASSY This part replaces 09800-21044.

09800-21093

$17.83

22

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

23

PROTECTOR (20X50X11) This part replaces 33652-03G00.

33652-31F00

$3.43
