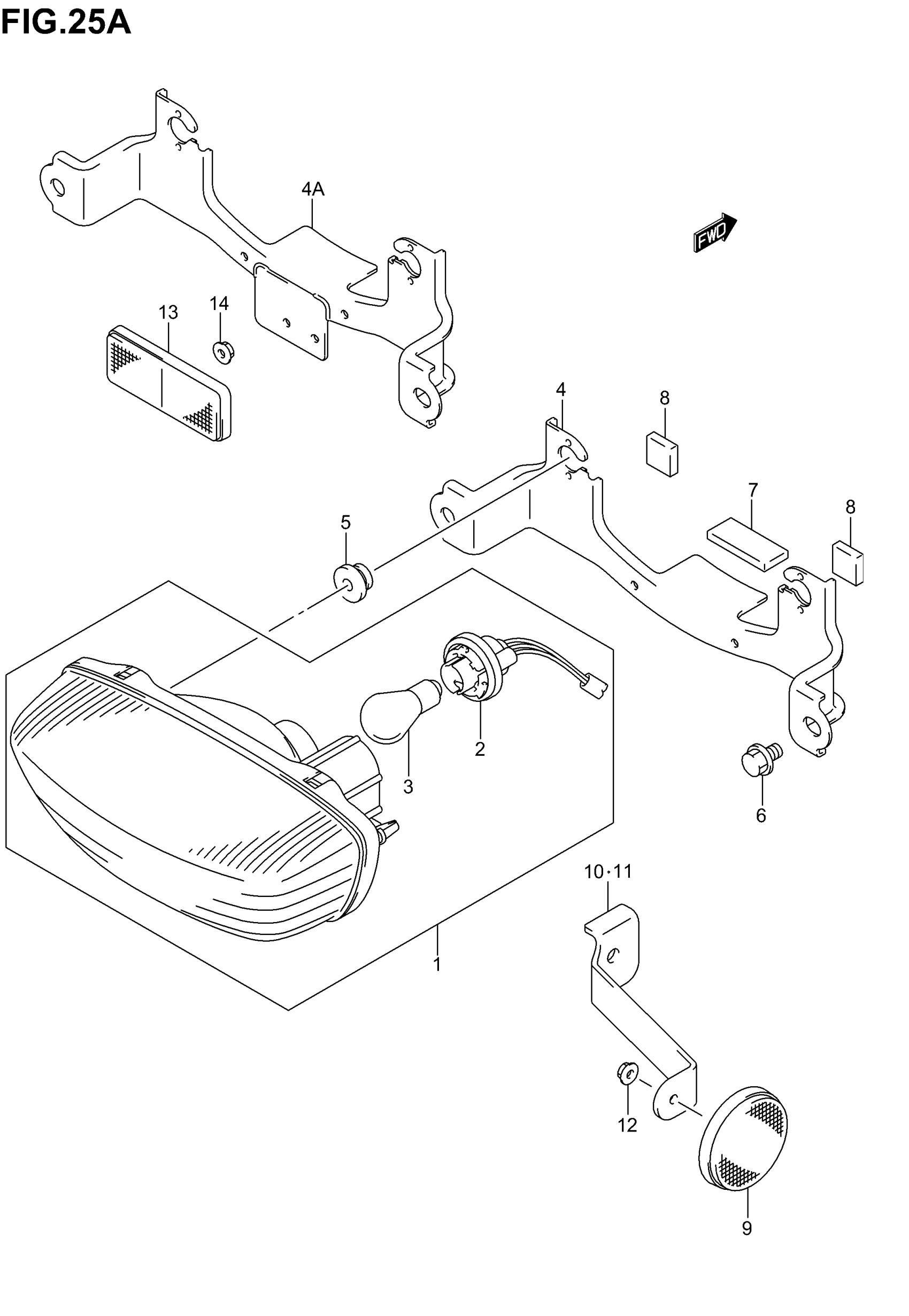

Suzuki LT-F250 (2006) REAR COMBINATION (MODEL K4) Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 3 This part replaces 35710-03G00.

35710-03G20

$63.25

2

SOCKET & CORD ASSY

35718-03G00

$35.23

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

4

BRACKET, REAR COMB LAMP

35726-05G00

$33.25

4A

BRACKET, REAR COMB LAMP | E28

35726-05G20

Unavailable

5

CUSHION

09320-06024

$3.85

6

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

7

CUSHION (25X55X8)

33652-05G10

Unavailable

8

CUSHION (17X17X12)

33652-05G20

$2.53

9

REFLECTOR ASSY, REAR SIDE | E28

35970-14A10

$18.80

10

BRACKET, REAR SIDE RR RH | E28

35975-05G10

Unavailable

11

BRACKET, REAR SIDE RR LH | E28

35976-05G10

Unavailable

12

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19

13

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$20.88

14

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19
