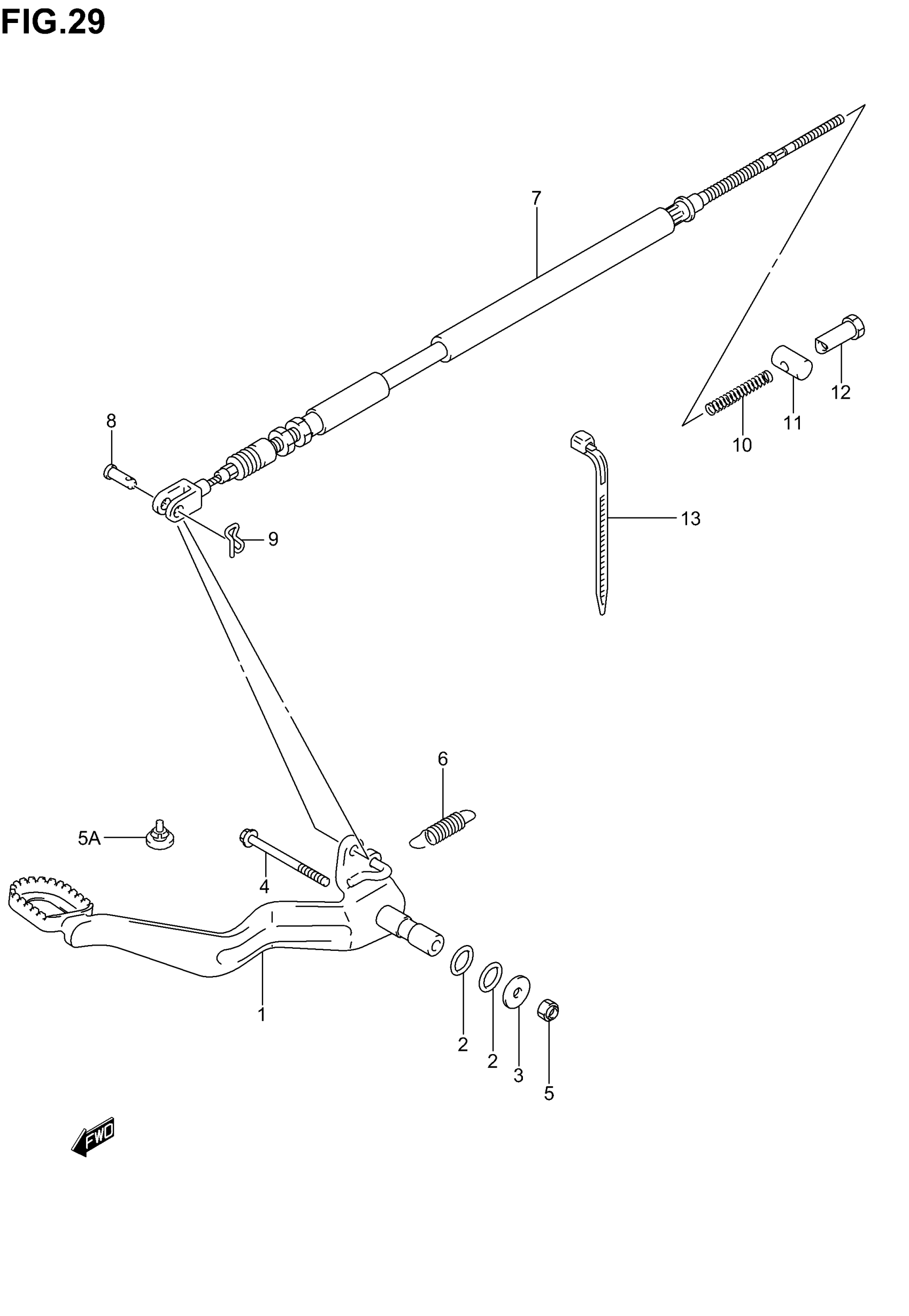

Suzuki LT-F250 (2006) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | MODEL K2

43110-05G00

Unavailable

1

PEDAL, BRAKE | MODEL K3 This part replaces 43110-05G10.

43110-05G20

Unavailable

1

PEDAL, BRAKE | MODEL K4/K5/K6

43110-05G20

Unavailable

2

O RING

09280-14011

$4.77

3

WASHER

09160-06138

$1.91

4

BOLT This part replaces 01550-06653.

01550-0665A

$3.16

5

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

5A

CUSHION This part replaces 09321-08022.

09321-08026

$1.94

6

SPRING, RETURN

09443-11030

$3.70

7

CABLE, REAR BRAKE

58510-05G00

$71.68

8

PIN, FRONT

09200-05001

$1.65

9

CLIP

09385-06012

$1.89

10

SPRING

09440-08042

$2.92

11

PIN, REAR

09209-13006

$5.24

12

NUT

09150-06015

$3.56

13

CLAMP

09407-14403

$2.26
