Description

Price

1

TANK ASSY, FUEL

44100-05G02

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

3A

HOSE,BREATHER This part replaces 44433-21G00.

44433-21G01

$11.10

4

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

5

CUSHION

47451-38A01

$4.43

6

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

7

BOLT

09116-06190

$2.34

8

SPACER

09180-06293

$2.58

9

COCK ASSY,FUEL | MODEL K2/K3 This part replaces 44300-05G00.

44300-05G02

$92.88

9

COCK ASSY,FUEL | MODEL K4/K5/K6 This part replaces 44300-05G01.

44300-05G02

$92.88

10

HOSE,FUEL | MODEL K2/K3 This part replaces 44420-05G00.

44420-21GR0

$24.55

10

HOSE,FUEL | MODEL K4/K5/K6 This part replaces 44420-21G00.

44420-21GR0

$24.55

11

CLIP This part replaces 09401-11407.

09401-11415

$2.23

12

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

13

GASKET

09168-06026

$3.10

14

CLAMP, AIR VENT HOSE

09403-12312

$3.93

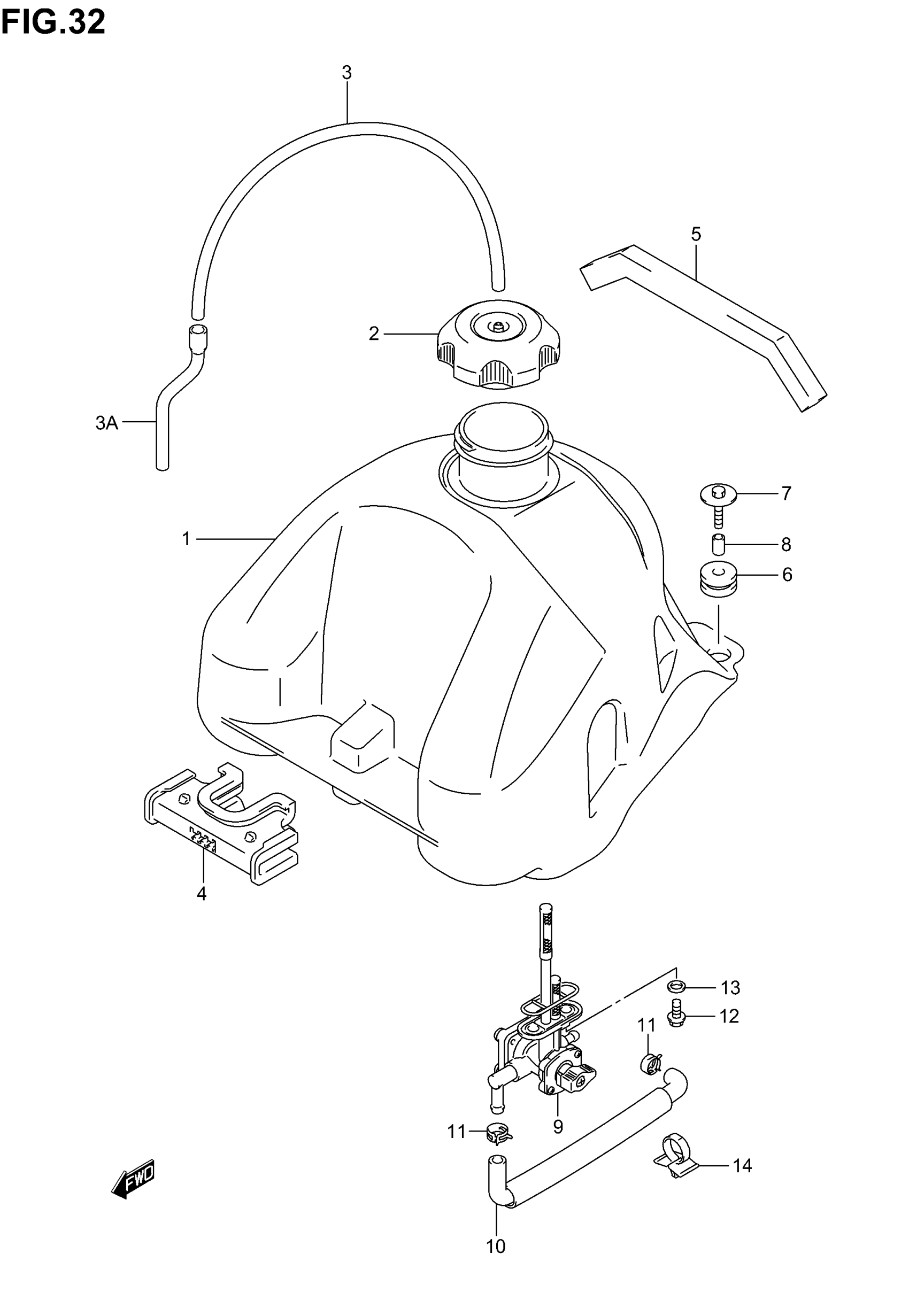

Suzuki LT-F250 (2006) FUEL TANK Diagram
