Description

Price

1

HUB, FRONT WHEEL | Includes Item(s) 2

54110-05G00

Unavailable

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

BEARING, FRONT HUB

08120-62037

$21.05

4

DUST SEAL

09284-22002

$13.87

5

SPACER, FRONT HUB

54731-05G00

$9.91

6

RIM, FRONT WHEEL (11X5.5AT) (SILVER)

55310-05G00-YL8

$340.33

7

NUT

09140-10021

$2.03

8

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

9

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.79

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

CAP,WHEEL CENTER

54725-09F01

$9.95

12

SPACER, FRONT AXLE

54741-189A0

$6.64

13

DISC, FRONT BRAKE

59211-05G00

$195.53

14

BOLT, BRAKE DISC

09106-08155

$3.76

15

COVER, FRONT DISC This part replaces 59231-05G00.

59231-05G10

$52.66

16

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

17

TIRE, FRONT (AT22X7-11) This part replaces 55110-05G00.

55110-05G20

$270.67

18

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

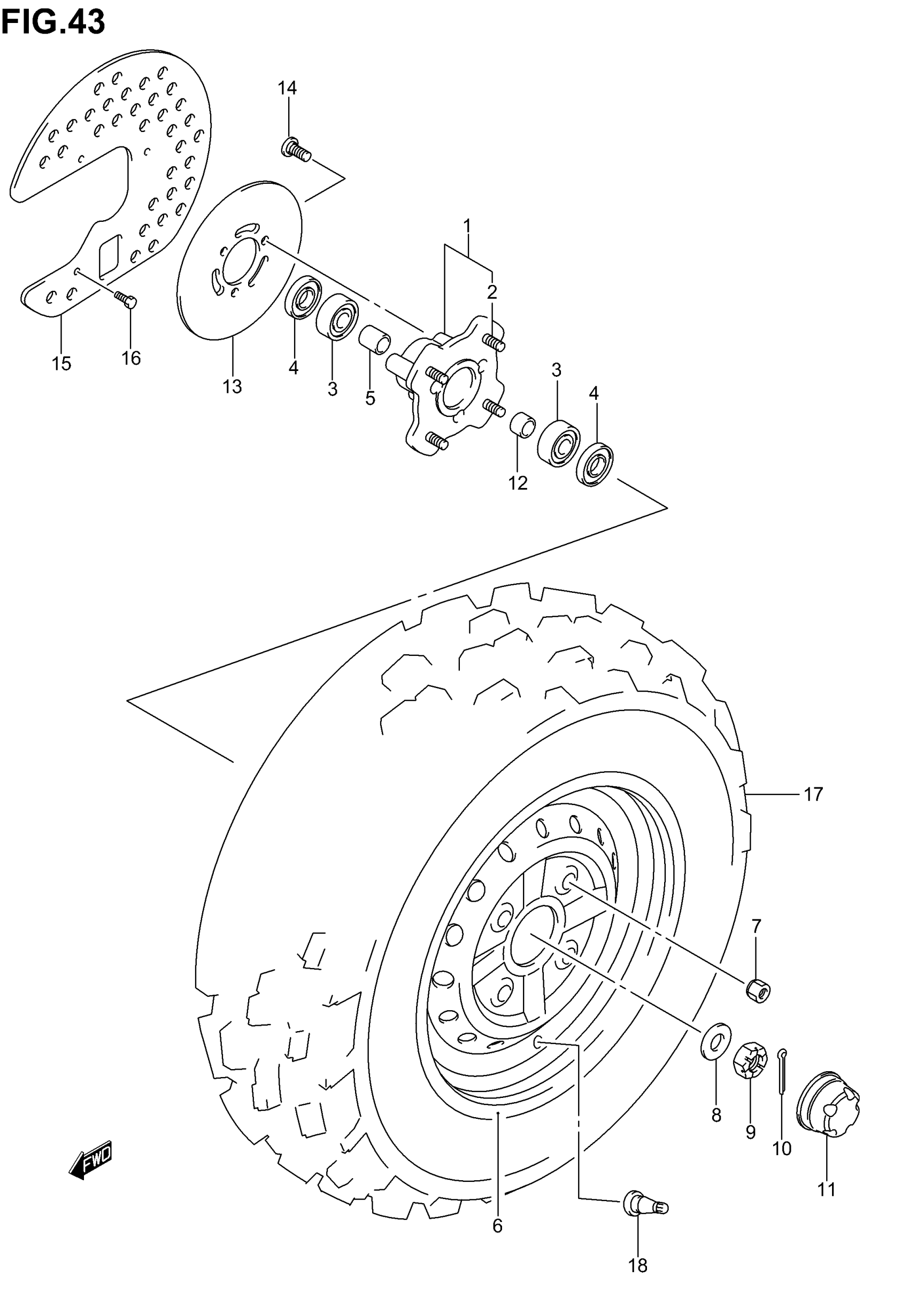

Suzuki LT-F250 (2006) FRONT WHEEL (MODEL K2/K3) Diagram
