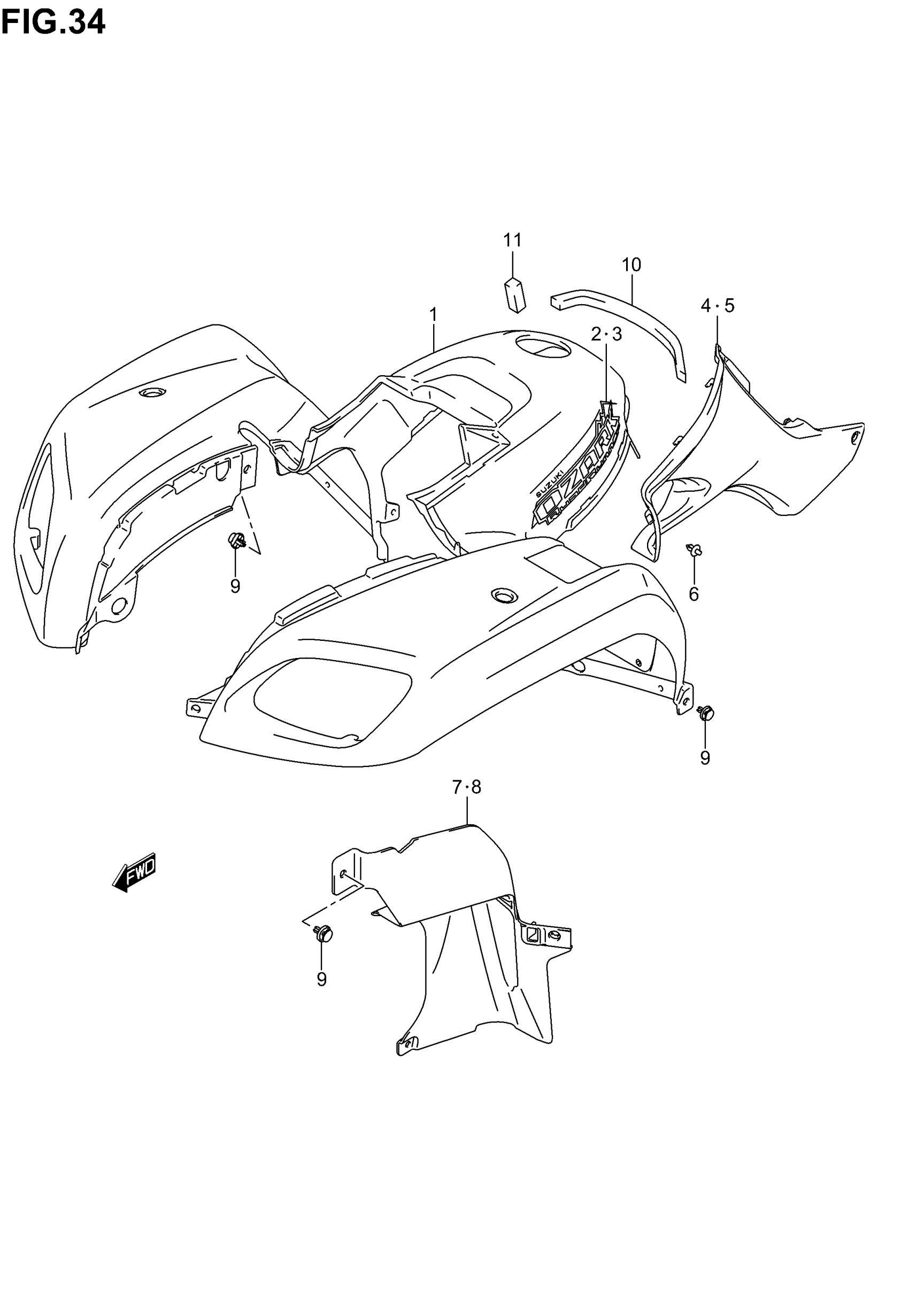

Suzuki LT-F250 (2006) FRONT FENDER (MODEL K2/K3) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN) This part replaces 53111-05G00-YT8.

53111-05G01-YT8

Unavailable

1

FENDER, FRONT (RED) This part replaces 53111-05G00-YT9.

53111-05G01-YT9

Unavailable

1

FENDER, FRONT (YELLOW) This part replaces 53111-05G00-YU1.

53111-05G01-YU1

Unavailable

2

EMBLEM, RH (GREEN) | MODEL K2 FOR YT8

68151-05G00-YZ7

Unavailable

2

EMBLEM, RH (RED) | MODEL K2 FOR YT9

68151-05G00-YAC

Unavailable

2

EMBLEM, RH (YELLOW) | MODEL K2 FOR YU1

68151-05G00-YZ6

Unavailable

2

EMBLEM, RH (GREEN) | MODEL K3 FOR YT8

68151-05G00-YBR

Unavailable

2

EMBLEM, RH (RED) | MODEL K3 FOR YT9

68151-05G00-YBS

Unavailable

2

EMBLEM, RH (YELLOW) | MODEL K2 FOR YU1

68151-05G00-YBP

Unavailable

3

EMBLEM, LH (GREEN) | MODEL K2 FOR YT8

68154-05G00-YZ7

Unavailable

3

EMBLEM, LH (RED) | MODEL K2 FOR YT9

68154-05G00-YAC

Unavailable

3

EMBLEM, LH (YELLOW) | MODEL K2 FOR YU1

68154-05G00-YZ6

Unavailable

3

EMBLEM, LH (GREEN) | MODEL K3 FOR YT8

68154-05G00-YBR

Unavailable

3

EMBLEM, LH (RED) | MODEL K3 FOR YT9

68154-05G00-YBS

Unavailable

3

EMBLEM, LH (YELLOW) | MODEL K3 FOR YU1

68154-05G00-YBP

Unavailable

4

COVER, SIDE RH (BLACK)

53112-05G00-291

$107.28

5

COVER, SIDE LH (BLACK)

53122-05G00-291

$87.82

6

CLIP

09409-07333

$2.31

7

MUD FLAP, INNER RH This part replaces 53411-05G00.

53411-05G10

$85.85

8

MUD FLAP, INNER LH This part replaces 53421-05G00.

53421-05G10

$87.58

9

CLIP

09409-07333

$2.31

10

CUSHION, CENTER

53145-05G00

$15.23

11

CUSHION, SIDE

53146-05G00

$7.27
