2006 Suzuki LT-F250 Front Caliper Diagram

← All diagrams

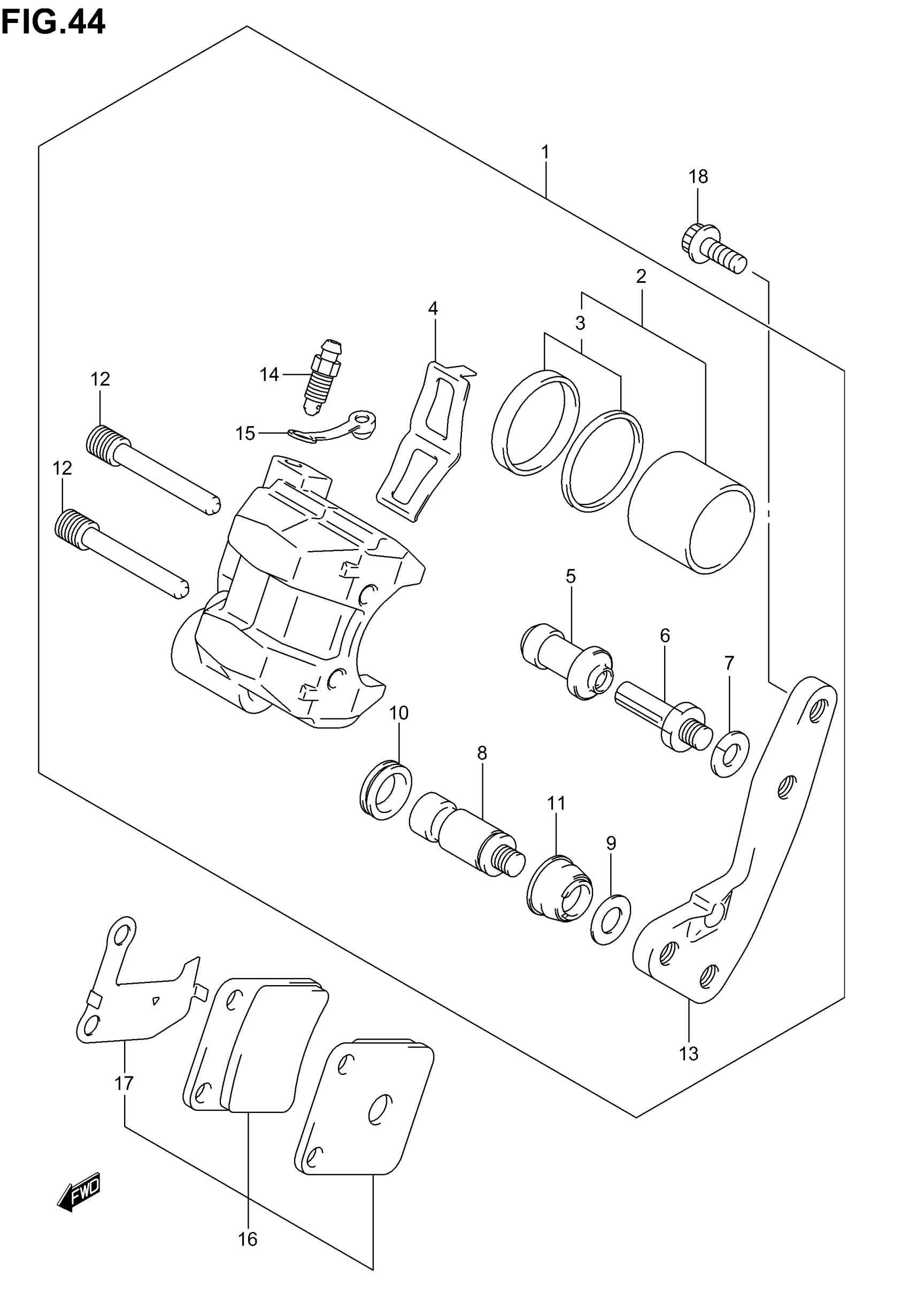

Find the part on the Front Caliper diagram for your 2006 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki LT-F250 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-38F30-999

1
Out of stock

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 15

59300-38F30-999

1
Out of stock

2

PISTON SET

59100-38850

2
Out of stock

3

SEAL SET, PISTON

59100-38860

2

$15.55

In stock

4

SPRING, PAD

59315-13A00

2
Out of stock

5

BOOT

59386-13A00

2
Out of stock

6

PIN

59382-13A00

2
Out of stock

7

WASHER

59314-13A00

2
Out of stock

8

PIN, SLIDE

59105-38F00

2
Out of stock

9

SPRING

59306-13A00

2
Out of stock

10

SEAL, DUST

59384-13A00

2
Out of stock

11

BOOT

59303-13A00

2
Out of stock

12

PIN

59345-00B20

4

$14.56

In stock

13

BRACKET, RH

59151-38F00

1
Out of stock

13

BRACKET, LH

59351-38F00

1
Out of stock

14

BLEEDER

59121-01A00

2
Out of stock

15

CAP

59122-01A00

2
Out of stock

16

PAD & SHIM SET RH This part replaces 59101-38830.

59101-38850

1
Out of stock

16

PAD & SHIM SET LH | Includes Item(s) 17 - 17 This part replaces 59101-38840.

59101-38860

1
Out of stock

17

SHIM RH

59371-13A00

1
Out of stock

17

SHIM LH

69372-00B20

1
Out of stock

18

BOLT | MODEL K5/K6

09106-08174

4
Out of stock
