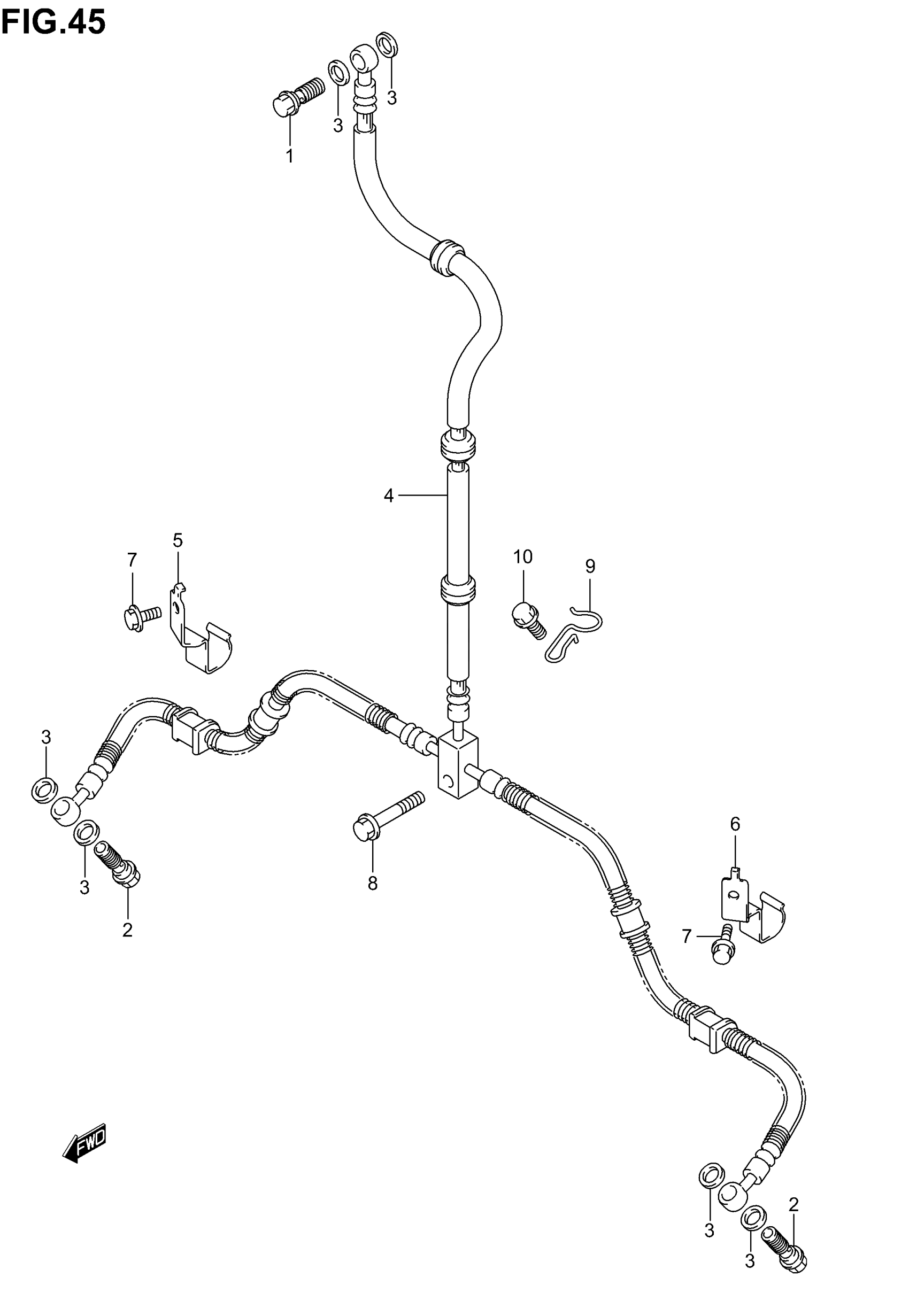

Suzuki LT-F250 (2006) FRONT BRAKE HOSE (MODEL K2/K3/K4/K5) Diagram

#

Description

Price

1

UNION This part replaces 09360-10041.

09360-10061

$5.89

2

UNION This part replaces 09360-10042.

09360-10062

$5.81

3

WASHER (10X15X1.5)

09161-10009

$1.83

4

HOSE | MODEL K2 This part replaces 59480-05G00.

59480-05G03

$177.52

4

HOSE | MODEL K3/K4/K5 This part replaces 59480-05G01.

59480-05G03

$177.52

5

CLAMP, FR BRAKE HOSE, R

59261-05G00

Unavailable

6

CLAMP, FR BRAKE HOSE, L

59271-05G00

Unavailable

7

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

8

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

9

GUIDE, FR BRAKE HOSE

59243-05G00

Unavailable

10

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31
