2006 Suzuki LT-F250 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2006 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

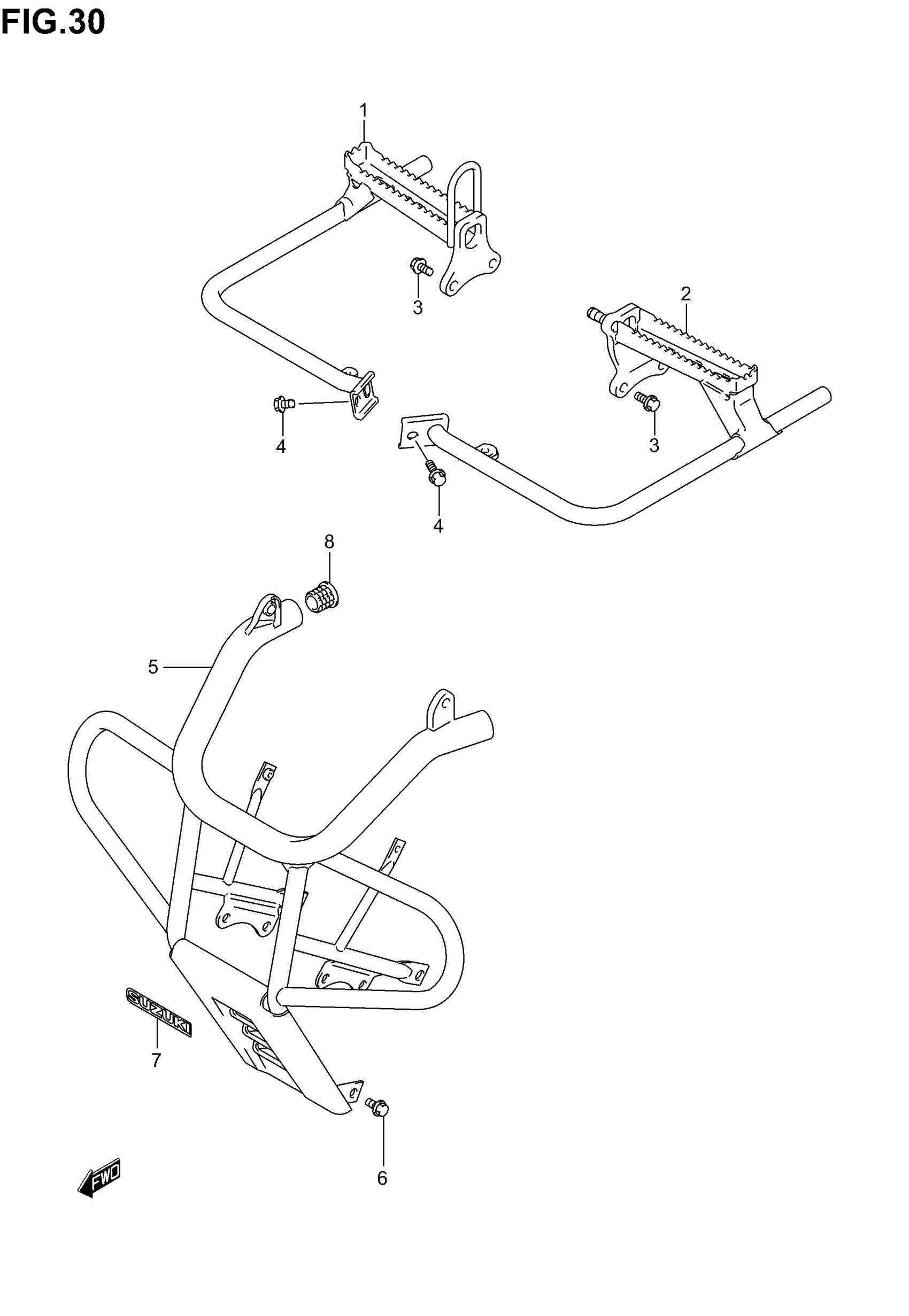

2006 Suzuki LT-F250 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST, FRONT RH | MODEL K2 This part replaces 43510-05G00.

43510-05850

1
Out of stock

1

FOOTREST, FRONT RH | MODEL K3/K4/K5/K6 This part replaces 43510-05G10.

43510-05850

1
Out of stock

2

FOOTREST, FRONT LH

43520-05G00

1
Out of stock

3

BOLT, LOWER | MODEL K2/K3/K4/K5 This part replaces 09103-10293.

09103-10310

4
Out of stock

3

BOLT, FRONT | MODEL K6

09103-10310

4
Out of stock

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

6

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

7

EMBLEM | MODEL K2 This part replaces 68271-34A00-17U.

68271-34A00-23S

1
Out of stock

8

CAP, GRIP

43978-38F00

2
Out of stock
