2006 Suzuki LT-F250 Carrier Diagram

← All diagrams

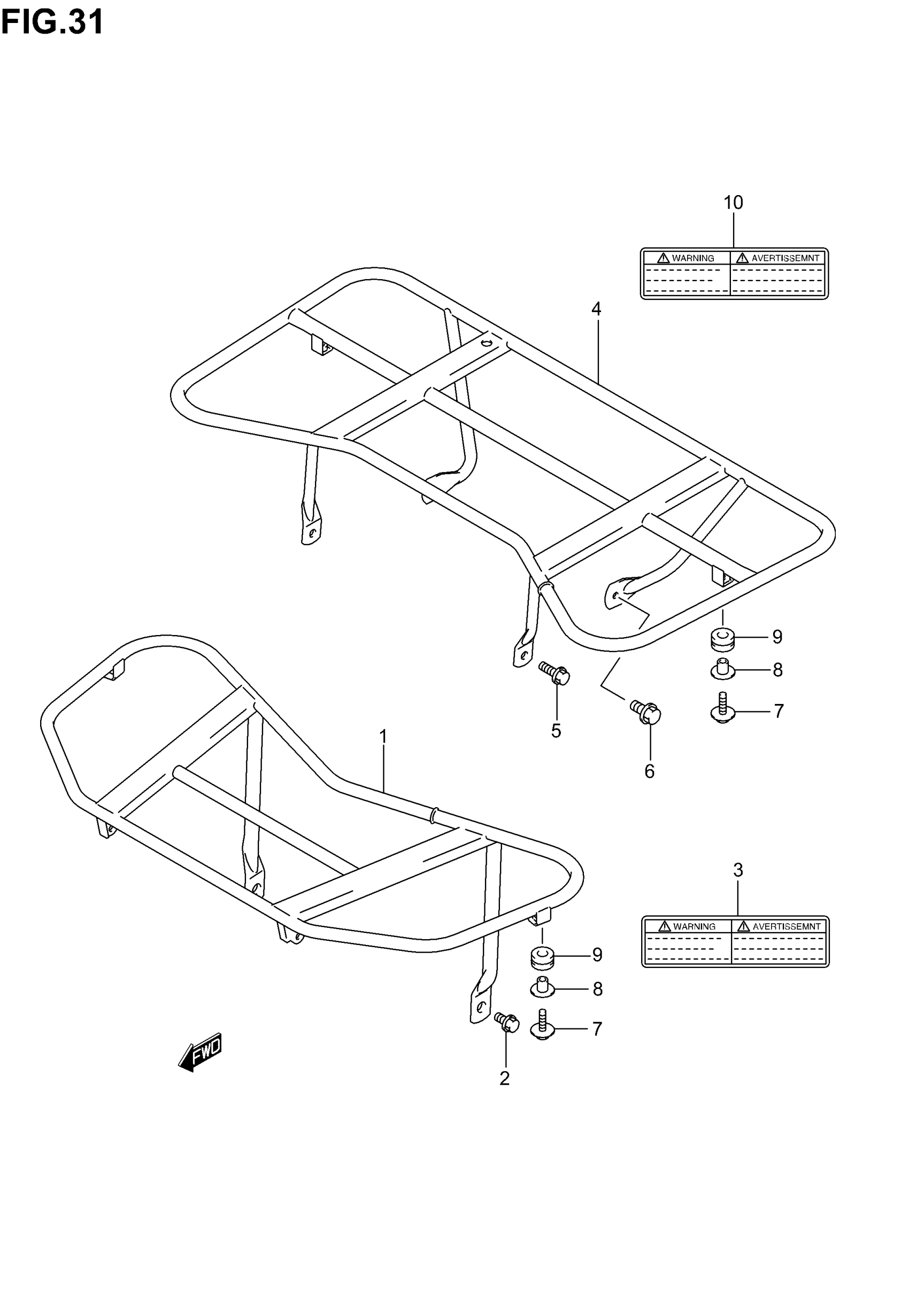

Find the part on the Carrier diagram for your 2006 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki LT-F250 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT (BLACK) | MODE K2/K3/K4/K5 This part replaces 46410-05G00-019.

46410-05G01-019

1
Out of stock

1

CARRIER, FRONT (BLACK) | MODEL K6

46410-05G01-019

1
Out of stock

2

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

3

LABEL, FRONT CARRIER

68391-02C00

1
Out of stock

3

LABEL, FRONT CARRIER (FRENCH) | E28

68391-02C20

1
Out of stock

4

CARRIER, REAR (BLACK) | MODEL K2/K3 This part replaces 46310-05G00-019.

46310-05G21-019

1
Out of stock

4

CARRIER, REAR (BLACK) | MODEL K4/K5 This part replaces 46310-05G20-019.

46310-05G21-019

1
Out of stock

4

CARRIER, REAR (BLACK) | MODEL K6

46310-05G21-019

1
Out of stock

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

2
Out of stock

6

2

$3.06

In stock

6

BOLT, PROP SHAFT REAR | E28 This part replaces 01550-10203.

01550-1020A

2
Out of stock

7

BOLT This part replaces 01550-06253.

01550-0625A

4
Out of stock

8

SPACER

09169-06074

4
Out of stock

9

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

6
Out of stock

10

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

1
Out of stock

10

LABEL,WARNING F | E28 This part replaces 68381-19B20.

68381-19B21

1
Out of stock
