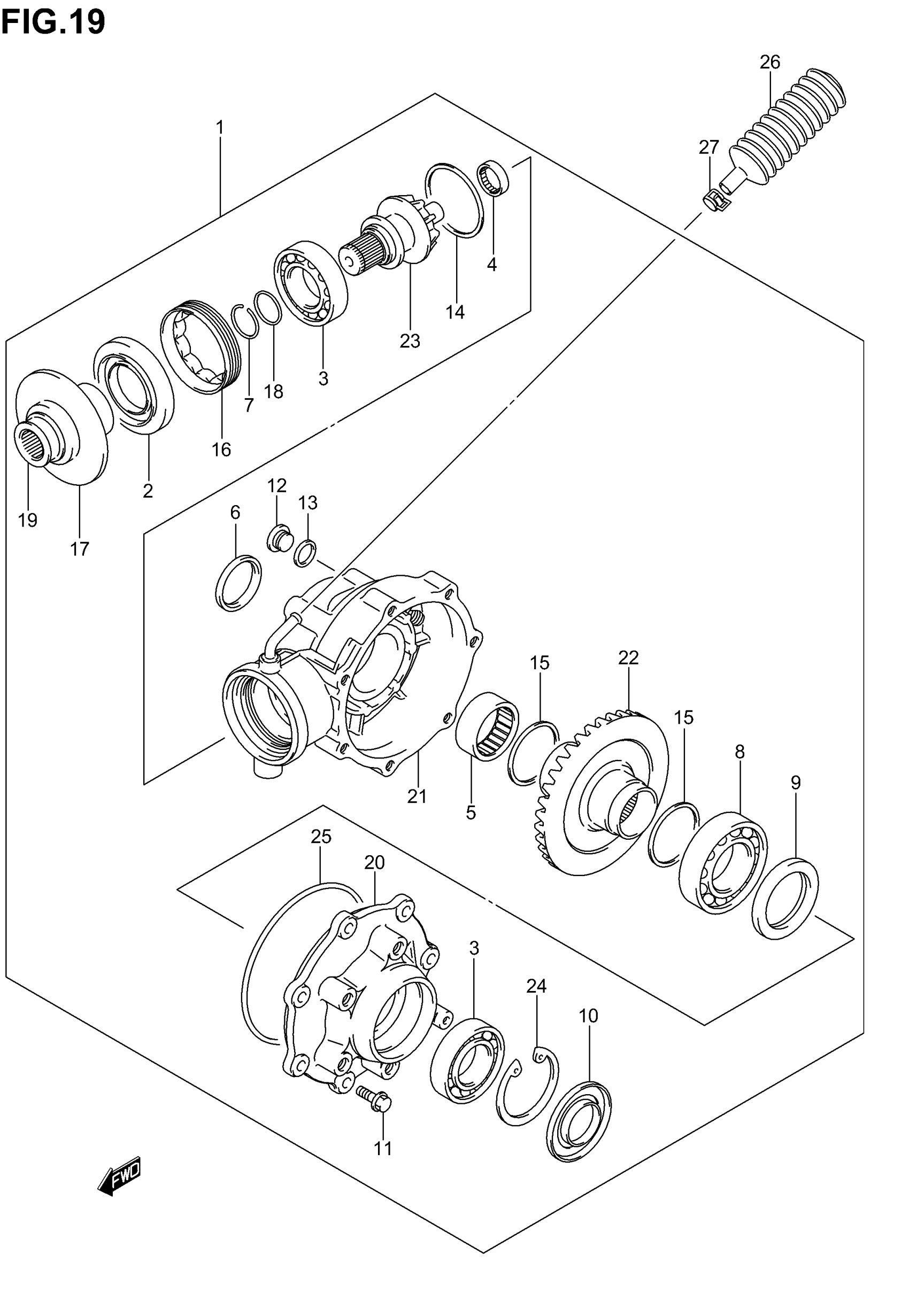

Suzuki LT-F250 (2006) FINAL BEVEL GEAR (NOTE) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 2 - 25 This part replaces 27400-05G00.

27400-05G10

$1,517.80

2

OIL SEAL (35X69X8)

27406-05GA0

$24.99

3

BEARING (30X62X16) This part replaces 27405-05GA0.

27405-05GF0

$72.58

4

BEARING (15X23X16)

27405-05GB0

$49.02

5

BEARING (45X52X20)

27405-05GC0

$58.39

6

OIL SEAL (45X55X7)

27406-05GB0

$25.83

7

C RING (24X1.0)

27403-05GA1

$4.72

8

BEARING (45X75X16)

27405-05GD0

$90.20

9

OIL SEAL (42X62X7)

27406-05GC0

$29.38

10

OIL SEAL (30X62X7) This part replaces 27406-05GD0.

27406-05GG0

$31.65

11

BOLT This part replaces 27401-05GA0.

27401-05GC0

$5.88

12

PLUG

27409-05GA0

$15.10

13

GASKET

27407-05GA0

$7.70

14

SHIM SET, FINAL DRIVE | T:1.38/1.44/1.50/1.56/1.62/1.68

27407-05810

$82.35

15

SHIM SET, FINAL DRIVEN | T:1.26/1.32/1.38/1.44/1.50/1.56/ 1.62/1.68/1.74/1.80

27407-05820

$228.70

16

STOPPER, BEARING

27312-05GA0

$78.73

17

PLATE, OUTPUT OIL SEAL

27592-05GA0

$29.54

18

O RING (D:2.0,ID:25.5)

27406-05GE0

$5.53

19

SHAFT, JOINT This part replaces 27591-05GA0.

27591-05GA1

$86.59

20

CASE, FINAL GEAR LH This part replaces 27461-05GA0.

27461-05GA1

$228.70

21

CASE, FINAL GEAR RH This part replaces 27450-05GA0.

27450-05GA1

$559.05

22

GEAR, FINAL DRIVEN BEVEL

27321-05GA0

$319.08

23

GEAR, FINAL DRIVEN BEVEL

27311-05GA0

$239.02

24

CIRCLIP

27403-05GB0

$8.57

25

O RING (D:3.5,ID:130)

27406-05GF0

$16.78

26

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

27

CLAMP, BREATHER CASE

09401-08411

$1.78
