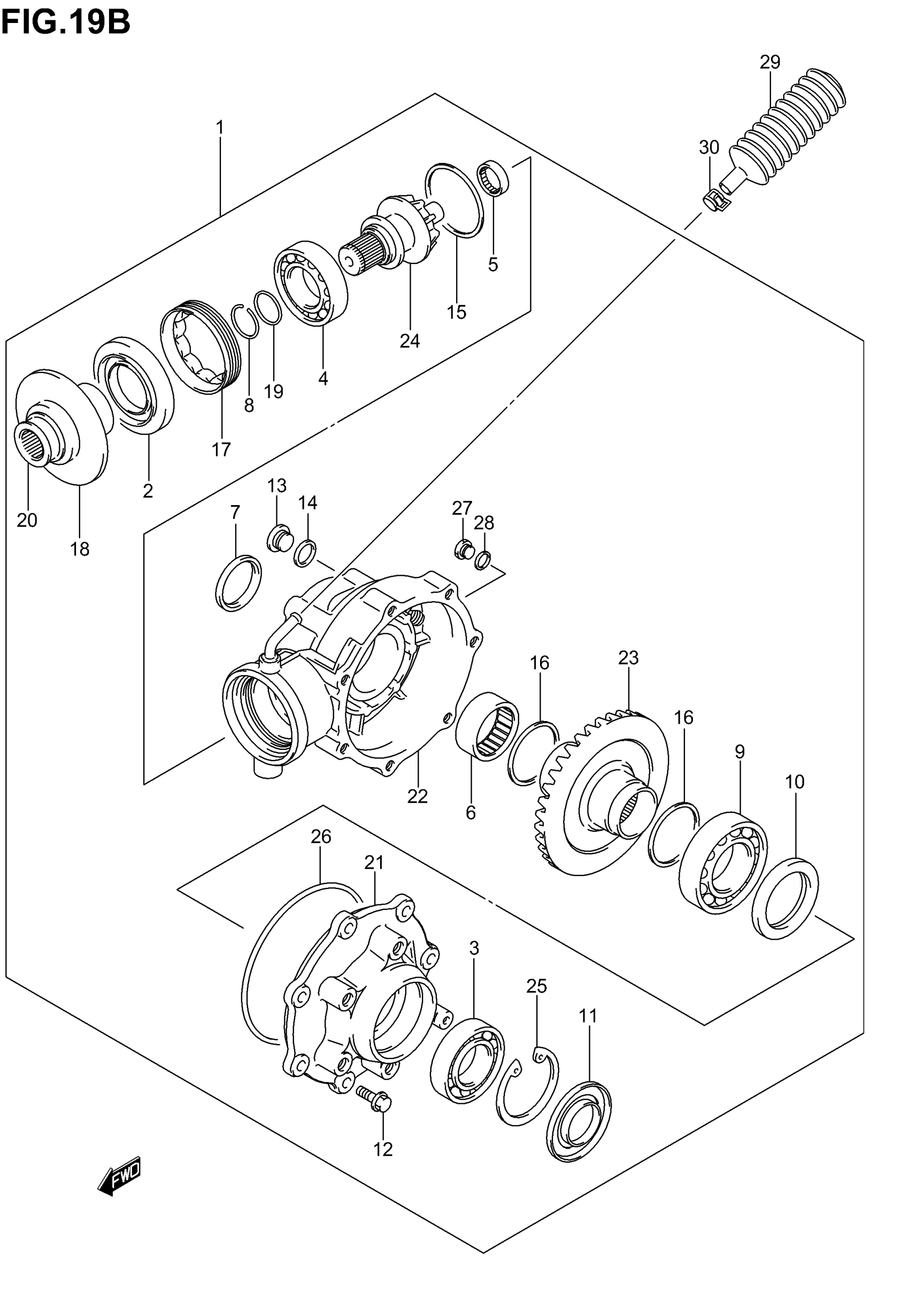

Suzuki LT-F250 (2006) FINAL BEVEL GEAR (MODEL K4/K5/K6) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 2 - 28

27400-05G10

$1,657.15

2

OIL SEAL (35X69X8)

27406-05GA0

$22.88

3

BEARING (30X62X16)

27405-05GF0

$81.92

4

BEARING (30X62X16) This part replaces 27405-05GA0.

27405-05GF0

$81.92

5

BEARING (15X23X16)

27405-05GB0

$55.32

6

BEARING (45X52X20)

27405-05GC0

$54.98

7

OIL SEAL (45X55X7)

27406-05GB0

$24.32

8

C RING (24X1.0)

27403-05GA1

$4.44

9

BEARING (45X75X16)

27405-05GD0

$101.32

10

OIL SEAL (42X62X7)

27406-05GC0

$33.17

11

OIL SEAL (30X62X7)

27406-05GG0

$35.73

12

BOLT

27401-05GC0

$6.63

13

PLUG

27409-05GA0

$17.05

14

GASKET

27407-05GA0

$8.68

15

SHIM SET, FINAL DRIVE | T:1.38/1.44/1.50/1.56/1.62/1.68

27407-05810

$92.95

16

SHIM SET, FINAL DRIVEN | T:1.26/1.32/1.38/1.44/1.50/1.56/ 1.62/1.68/1.74/1.80

27407-05820

$254.50

17

STOPPER, BEARING

27312-05GA0

$88.87

18

PLATE, OUTPUT OIL SEAL

27592-05GA0

$27.81

19

O RING (D:2.0,ID:25.5)

27406-05GE0

$6.25

20

SHAFT, JOINT

27591-05GA1

$79.26

21

CASE, FINAL GEAR LH

27461-05GA1

$254.50

22

CASE, FINAL GEAR RH

27450-05GA1

$616.13

23

GEAR, FINAL DRIVEN BEVEL

27321-05GA0

$355.08

24

GEAR, FINAL DRIVEN BEVEL

27311-05GA0

$265.98

25

CIRCLIP

27403-05GB0

$9.67

26

O RING (D:3.5,ID:130)

27406-05GF0

$18.93

27

BOLT, OIL CHECK

27401-05GB0

$3.30

28

GASKET, OIL CHECK

27407-05GD0

$8.28

29

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

30

CLAMP, BREATHER CASE

09401-08411

$1.77
