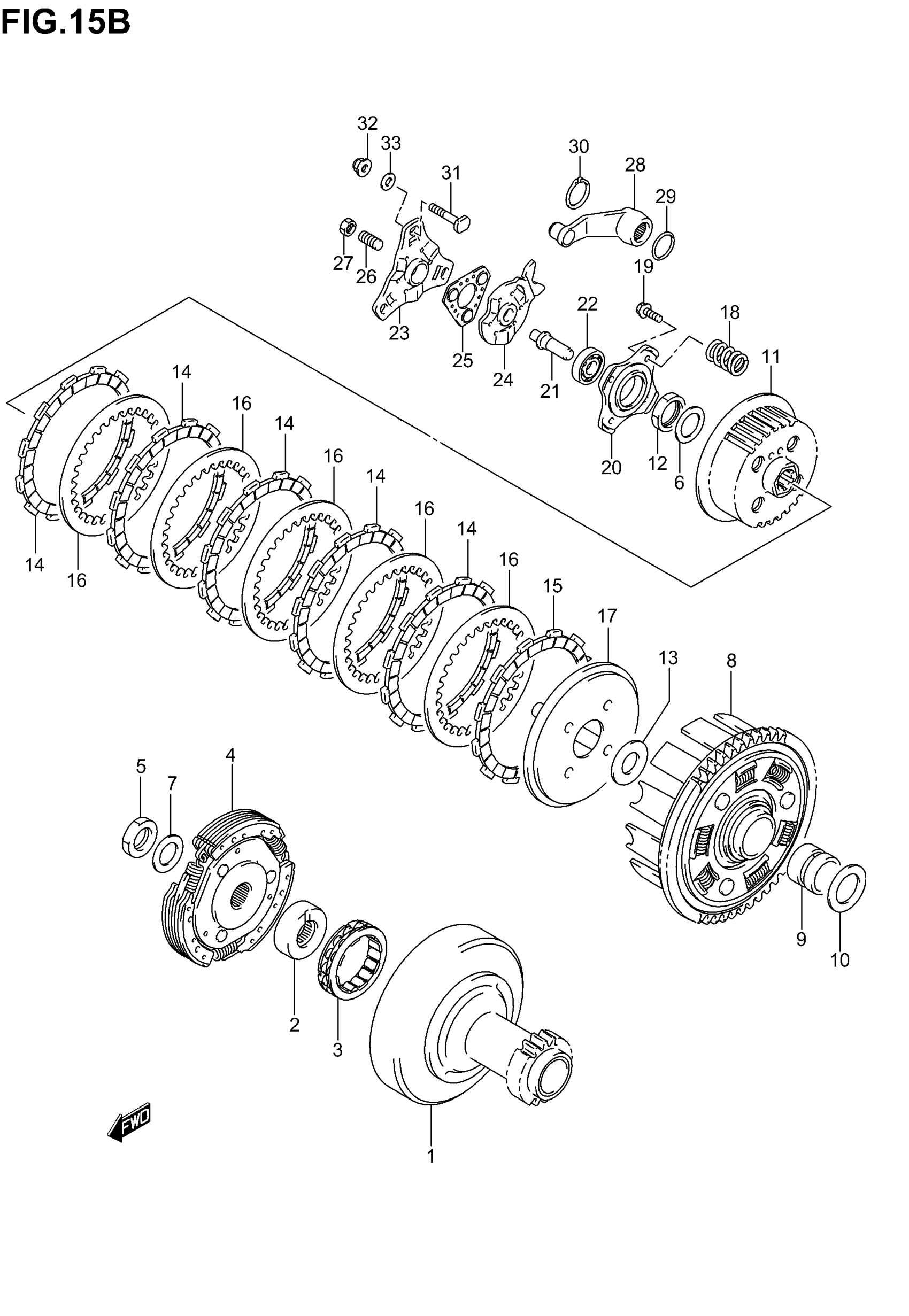

Suzuki LT-F250 (2006) CLUTCH (MODEL K4) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20)

21110-05G00

$232.28

2

RACE, INNER

21631-19B11

$40.83

3

CLUTCH, ONE WAY

21273-19B10

$181.53

4

CLUTCH ASSY

21500-05G10

$309.63

5

NUT

09140-18012

$7.78

6

LOCK WASHER (ID:20.1)

09164-20007

$5.00

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

$3.08

8

GEAR ASSY, PRIMARY (NT:65)

21200-05G10

Unavailable

9

SPACER (22X28X23)

09180-22035

$23.07

10

WASHER (22X36X1.0)

09181-22251

$4.12

11

HUB, CLUTCH

21410-05G00

$136.77

12

NUT

09140-20019

$6.45

13

WASHER

08211-20323

$3.30

14

PLATE, DRIVE

21441-22A01

$14.50

15

PLATE, DRIVE NO.2

21441-29B01

$30.15

16

PLATE, DRIVEN

21451-36200

$7.47

17

DISC, PRESSURE

21462-24501

$60.83

18

SPRING

09440-19017

$4.72

19

BOLT This part replaces 01550-06203.

01550-0620A

$2.01

20

PLATE, RELEASE

21465-24500

$21.62

21

PIECE, PUSH

23121-05G00

$28.58

22

BEARING (12X28X8)

09262-12001

$17.40

23

GUIDE, BALL OUTER

23231-05G21

Unavailable

24

GUIDE, BALL INNER

23211-05G21

$45.25

25

BALL, RELEASE

23250-31003

$31.82

26

SCREW, ADJUSTER

09134-08009

$4.20

27

NUT, ADJUSTER

09140-08021

$2.87

28

ARM, RELEASE

23220-05G20

Unavailable

29

WASHER, CLUTCH RLSE ARM

08211-10243

$4.18

30

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.97

31

BOLT

09119-06103

$2.19

32

NUT This part replaces 08313-20063.

08313-2006A

$2.01

33

SEAL, BOLT

09168-06023

$2.09
