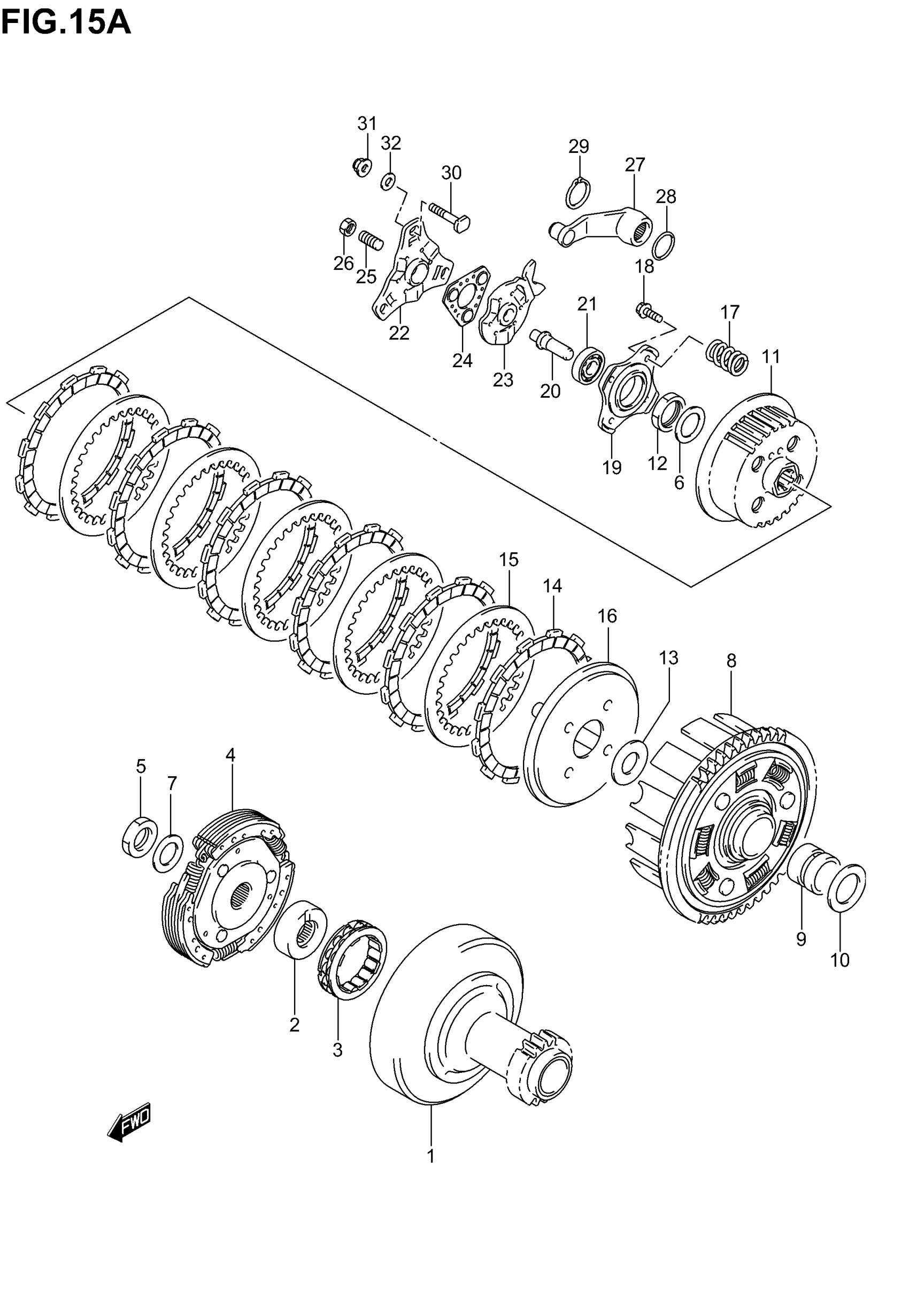

Suzuki LT-F250 (2006) CLUTCH (MODEL K3) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20)

21110-05G00

$208.75

2

RACE, INNER

21631-19B11

$36.17

3

CLUTCH, ONE WAY

21273-19B10

$163.13

4

CLUTCH ASSY This part replaces 21500-05G00.

21500-05G10

$278.25

5

NUT

09140-18012

$8.37

6

LOCK WASHER (ID:20.1)

09164-20007

$4.60

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

$3.24

8

GEAR ASSY, PRIMARY (NT:65)

21200-05G00

Unavailable

9

SPACER (22X28X23)

09180-22035

$21.22

10

WASHER (22X36X1.0)

09181-22251

$3.78

11

HUB, CLUTCH

21410-05G00

$121.77

12

NUT

09140-20001

$3.37

13

WASHER

08211-20323

$3.03

14

PLATE, DRIVE

21441-22A01

$14.73

15

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

$8.40

16

DISC, PRESSURE

21462-24501

$53.90

17

SPRING

21413-05G10

$4.88

18

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

19

PLATE, RELEASE

21465-24500

$19.15

20

PIECE, PUSH

23121-05G00

$25.33

21

BEARING (12X28X8)

09262-12001

$18.47

22

GUIDE, BALL OUTER This part replaces 23231-05G20.

23231-05G21

Unavailable

23

GUIDE, BALL INNER This part replaces 23211-05G20.

23211-05G21

$40.10

24

BALL, RELEASE

23250-31003

$28.18

25

SCREW, ADJUSTER

09134-08009

$3.87

26

NUT, ADJUSTER

09140-08021

$2.63

27

ARM, RELEASE

23220-05G20

Unavailable

28

WASHER, CLUTCH RLSE ARM

08211-10243

$3.85

29

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

30

BOLT

09119-06103

$2.05

31

NUT This part replaces 08313-20063.

08313-2006A

$1.97

32

SEAL, BOLT

09168-06023

$2.35
