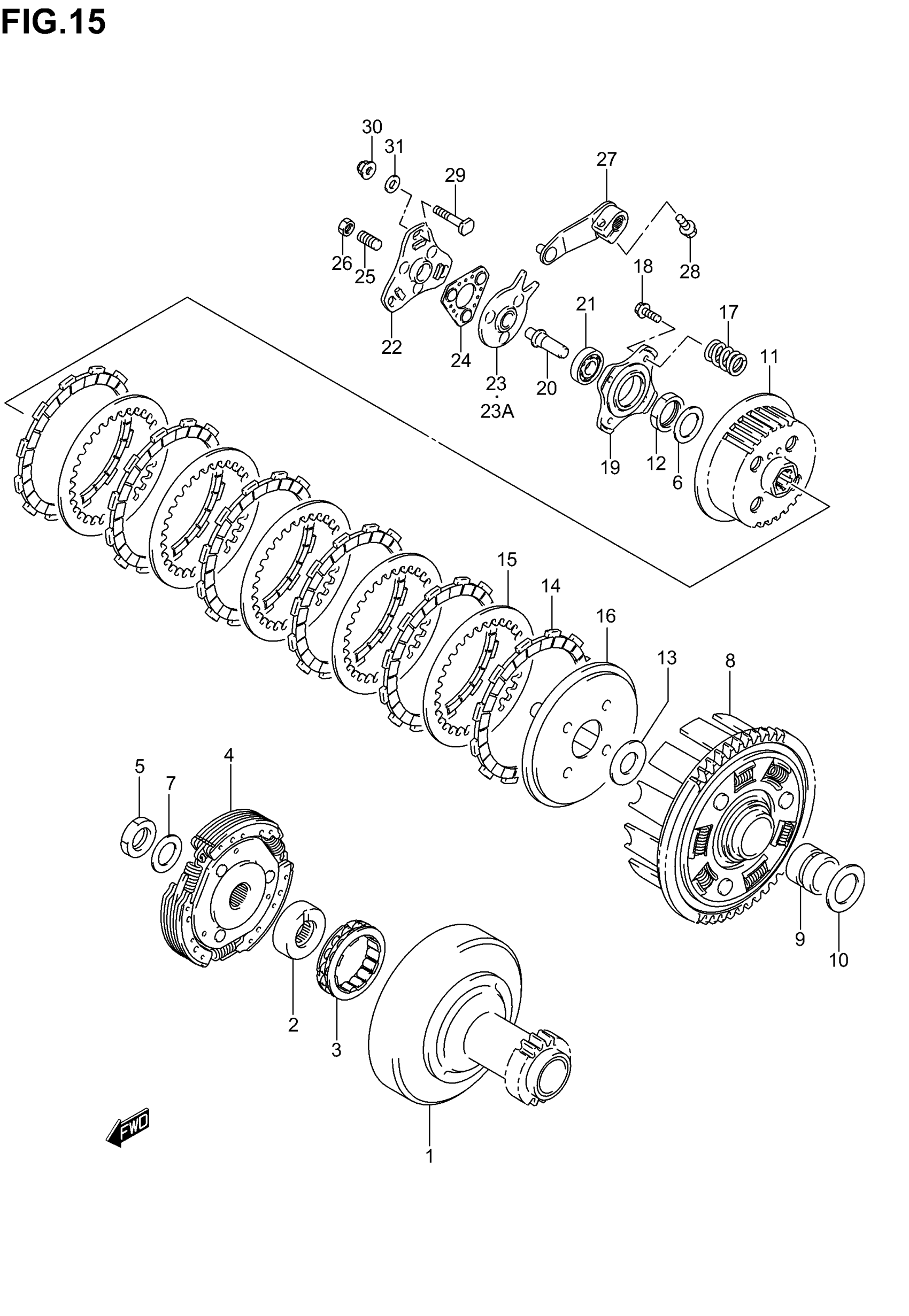

Suzuki LT-F250 (2006) CLUTCH (MODEL K2) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20)

21110-05G00

$208.75

2

RACE, INNER

21631-19B11

$36.17

3

CLUTCH, ONE WAY

21273-19B10

$163.13

4

CLUTCH ASSY This part replaces 21500-05G00.

21500-05G10

$278.25

5

NUT

09140-18012

$8.37

6

LOCK WASHER (ID:20.1)

09164-20007

$4.60

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

$3.24

8

GEAR ASSY, PRIMARY (NT:65)

21200-05G00

Unavailable

9

SPACER (22X28X23)

09180-22035

$21.22

10

WASHER (22X36X1.0)

09181-22251

$3.78

11

HUB, CLUTCH | %F.NO.JSAAJ51A22100696

21410-24500

Unavailable

11

HUB, CLUTCH | F.NO.JSAAJ51A22100697%

21410-05G00

$121.77

12

NUT

09140-20001

$3.37

13

WASHER

08211-20323

$3.03

14

PLATE, DRIVE

21441-22A01

$14.73

15

PLATE, DRIVEN (T:2.0)

21451-36200

$7.58

16

DISC, PRESSURE

21462-24501

$53.90

17

SPRING | %F.NO.JSAAJ51A22100696

09440-19017

$4.33

17

SPRING | F.NO.JSAAJ51A22100697%

21413-05G10

$4.88

18

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

19

PLATE, RELEASE

21465-24500

$19.15

20

PIECE, PUSH

23121-05G00

$25.33

21

BEARING (12X28X8)

09262-12001

$18.47

22

GUIDE, BALL OUTER

23231-05G00

Unavailable

23

GUIDE, BALL INNER | %F.NO.JSAAJ51A22100696

23211-24201

Unavailable

23A

GUIDE, BALL INNER | F.NO.JSAAJ51A22100697%

23211-05G00

Unavailable

24

BALL, RELEASE

23250-31003

$28.18

25

SCREW, ADJUSTER

09134-08009

$3.87

26

NUT, ADJUSTER

09140-08019

$2.23

27

ARM, RELEASE | %F.NO.JSAAJ51A22100696

23220-24500

$32.92

27

ARM, RELEASE | F.NO.JSAAJ51A22100697%

23220-05G00

Unavailable

28

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

29

BOLT

09119-06103

$2.05

30

NUT This part replaces 08313-20063.

08313-2006A

$1.97

31

SEAL, BOLT

09168-06023

$2.35
