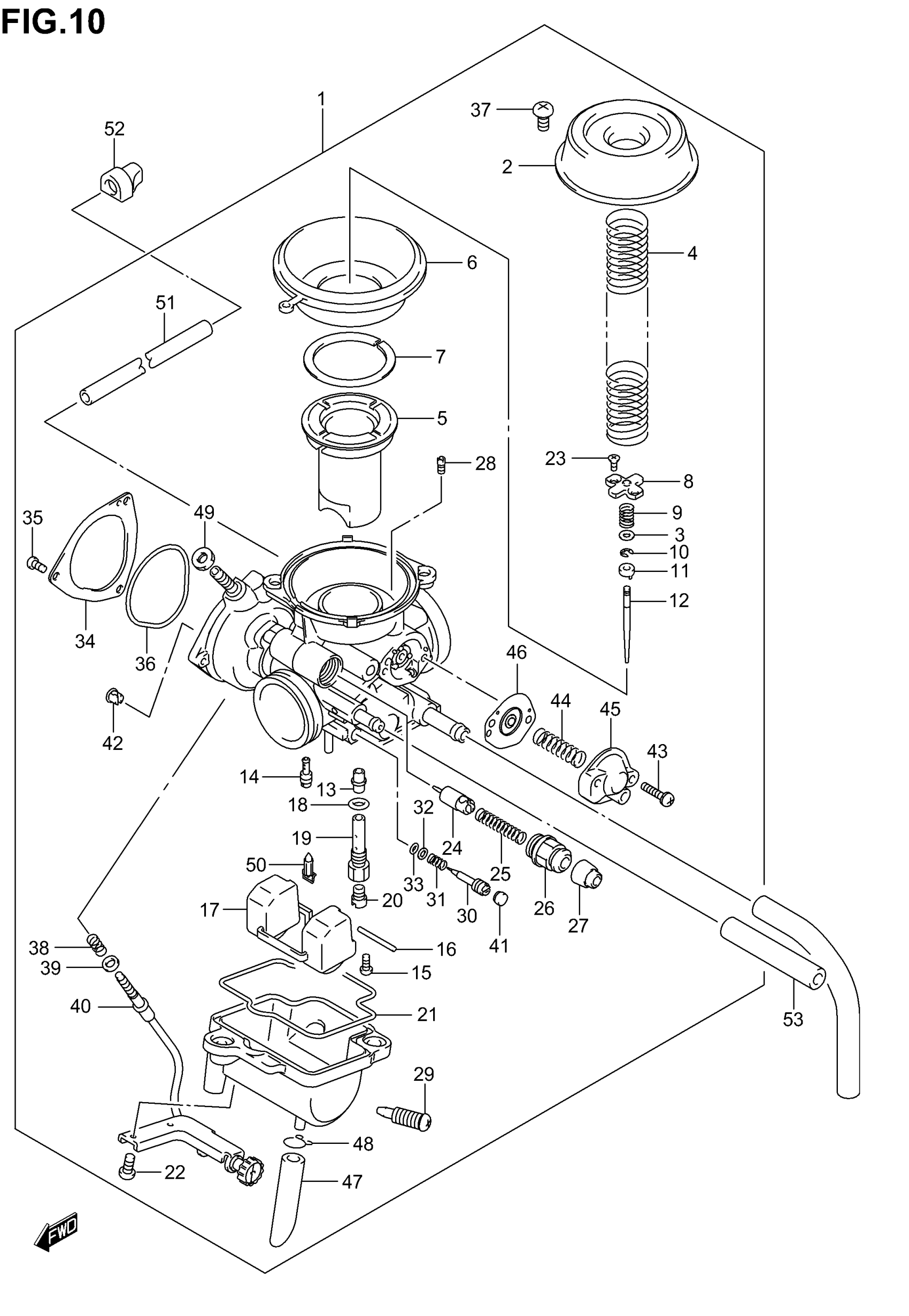

Suzuki LT-F250 (2006) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | E3,E28 This part replaces 13200-05G00.

13200-05G22

$607.28

1

CARBURETOR ASSY | E33; Includes Item(s) 2 - 51 This part replaces 13200-05G10.

13200-05G11

$632.57

2

DIAPHRAGM COVER

13502-05F00

$32.92

3

WASHER

13382-46E00

Unavailable

4

SPRING

13503-05G00

$14.20

5

PISTON VALVE

13500-05F10

$91.95

6

DIAPHRAGM This part replaces 13507-05G00.

13507-05G01

$26.55

7

RING

13504-16E00

$5.30

8

PLATE

13581-05F00

Unavailable

9

SPRING

13388-20E20

Unavailable

10

E RING

13394-17E60

$1.80

11

RING

13574-05F00

$7.08

12

JET NEEDLE (4DJ24-1)

13383-05G00

$20.45

13

NEEDLE JET (P-OM)

09494-00921

$42.71

14

JET, PILOT (17.5)

09492-17006

$9.50

15

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

16

PIN

13254-20010

$4.28

17

FLOAT ASSY This part replaces 13240-47E00.

13240-47E01

$32.83

18

.O RING This part replaces 13246-43010.

13246-43011

$4.34

19

JET HOLDER

13342-05G00

$26.33

20

MAIN JET (137.5)

09491-27014

$10.63

21

O RING

13251-47E00

$7.95

22

SCREW This part replaces 13601-05148.

13601-05148-XC0

$3.11

23

SCREW

13603-05F00

Unavailable

24

PLUNGER ASSY

13411-05G00

$30.05

25

SPRING

13417-37200

$3.56

26

GUIDE HOLDER

13418-43410

$7.22

27

.CAP This part replaces 13681-04010.

13681-04011

$4.93

28

PILOT JET (170)

09493-34003

$16.57

29

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

30

ADJUSTER | 2,7/8

13279-48F00

$12.57

31

.SPRING (NT:45)

13268-47070

$4.34

32

WASHER

13291-29900

$1.98

33

O-RING This part replaces 13295-29900.

13295-29901

$4.34

34

COVER

13502-02C10

$14.40

35

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

36

O RING

13673-20B00

$7.83

37

SCREW

02112-05087

$1.49

38

SPRING

13268-03110

$5.45

39

WASHER

13615-05G00

$3.25

40

CABLE ADJUSTER ASSY

13577-05G00

$94.55

41

CAP | E3,E28

13282-05G00

Unavailable

41

PLUG | E33

13281-05A00

$4.60

42

CABLE GUIDE

13579-05G00

$7.83

43

SCREW

13601-04148

$2.81

44

SPRING

13271-13F00

$4.57

45

COVER ASSY

13502-10F00

$39.68

46

DIAPHRAGM ASSY This part replaces 13480-055A0.

13480-055A1

$16.79

47

HOSE This part replaces 13684-38D00.

13684-38D01

$4.85

48

.CLIP This part replaces 13529-98010.

13529-98011

$3.08

49

NUT

13607-98410

$6.80

50

NEEDLE

13370-47E00

$51.24

51

HOSE(6.5X11.5X6 | L:600!250 This part replaces 09354-65113-600.

09355-65001-600

$12.00

52

CAP,AIR VENT HO This part replaces 13699-05G00.

13699-05G01

$7.83

53

HOSE,5X10X600 | L:600!160 This part replaces 09355-50105-600.

44421-13ER0

$10.06
