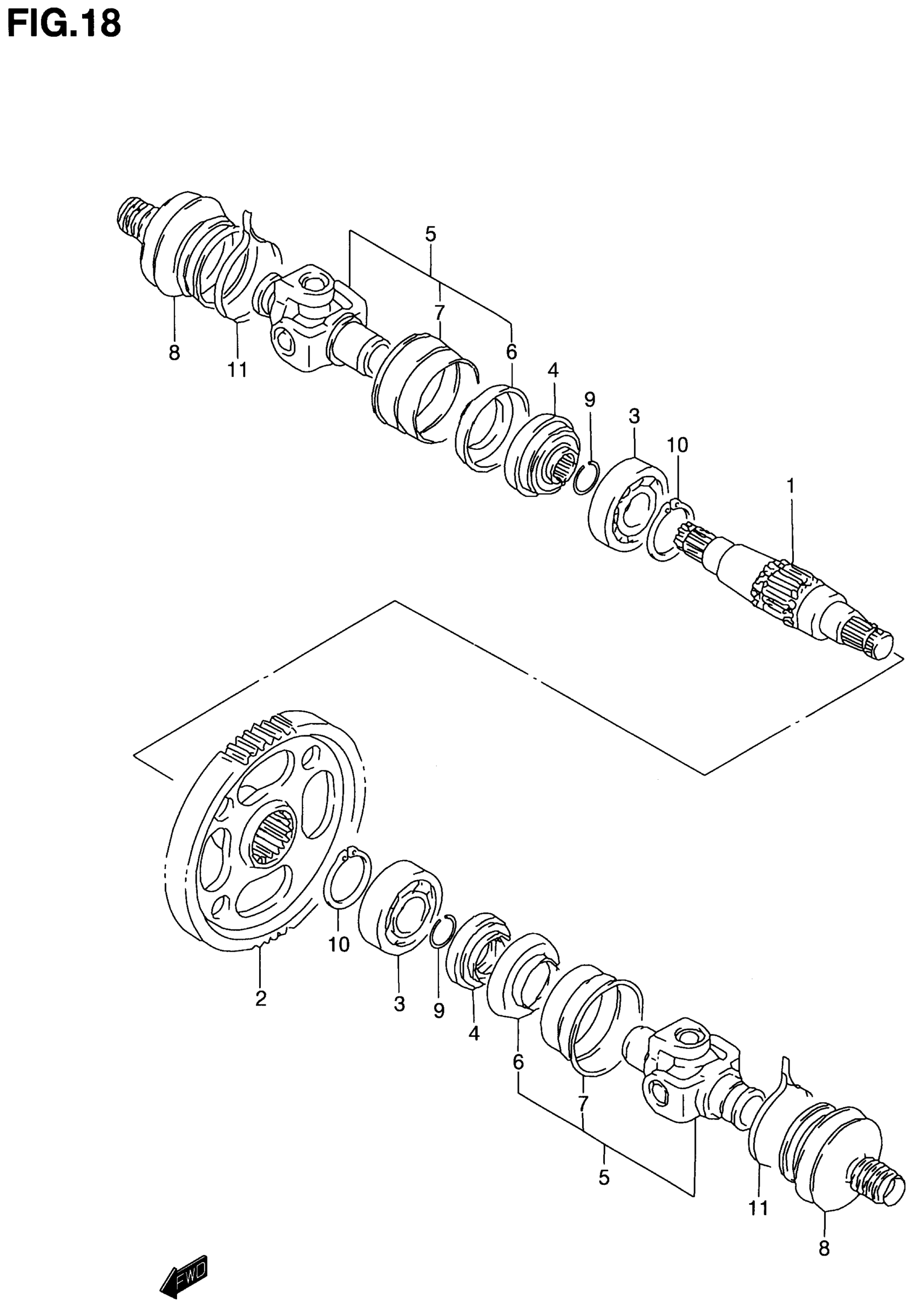

Find the part on the Transmission diagram for your 2001 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,REAR FINA This part replaces 27551-19B10.

27551-19B11

1
Out of stock

2

GEAR, DRIVEN (NT:62)

27541-19B10

1
Out of stock

3

BEARING (25X62X17)

09262-25073

2
Out of stock

4

OIL SEAL (34X52X9)

09283-34008

2
Out of stock

5

JOINT, REAR FINAL OUTPUT | MODEL X/Y This part replaces 27501-19B70.

27501-19B80

2
Out of stock

5

JOINT, REAR FINAL OUTPUT | MODEL K1; Includes Item(s) 6 - 7

27501-19B80

2
Out of stock

6

COVER, UNIVERSAL JOINT This part replaces 27592-19B70.

27592-19B80

2
Out of stock

7

COVER, UNIVERSAL JOINT

27593-19B70

2
Out of stock

8

BOOT,UNIVERSAL This part replaces 27153-19B70.

27153-19B71

2
Out of stock

9

RING (D:1.6,OD:24)

09381-24001

2
Out of stock

10

CIRCLIP This part replaces 08331-31406.

08331-31409

2
Out of stock

11

CLAMP, UNIVERSAL JOINT

44123-60A00

2
Out of stock
