2001 Suzuki LT-F250 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2001 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

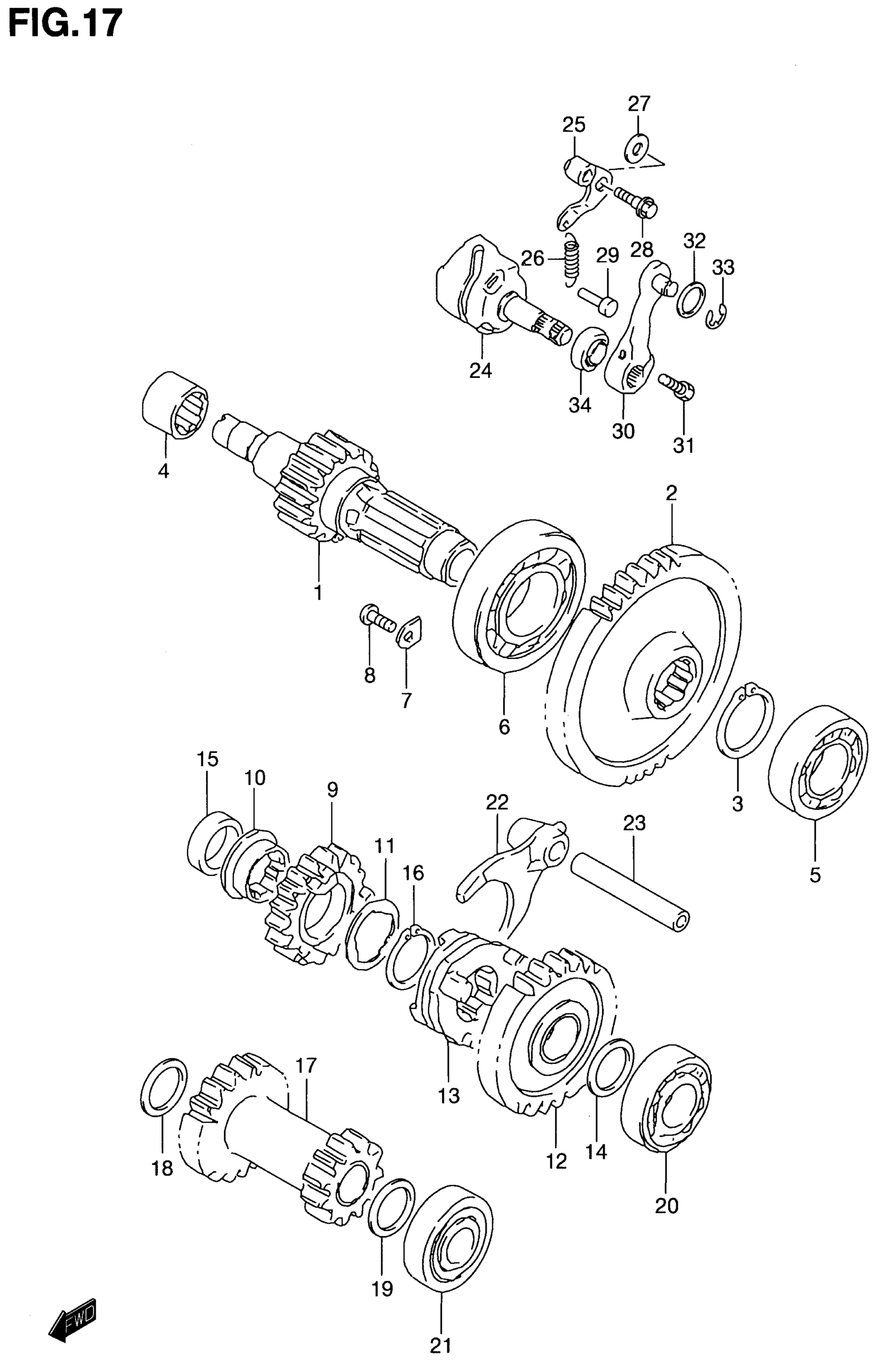

2001 Suzuki LT-F250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SUB TRANSMISSION

29121-20B00

1
Out of stock

2

GEAR, DRIVEN NO.1 (NT:43)

29311-20B00

1
Out of stock

3

CIRCLIP This part replaces 08331-31326.

08331-3132A

1
Out of stock

4

BEARING, RH (18X26X16)

09263-18023

1
Out of stock

5

BEARING, LH (25X52X15)

09262-25003

1
Out of stock

6

BEARING (35X72X17) This part replaces 09262-35039.

09262-35038

1
Out of stock

7

RETAINER

24741-21A00

2
Out of stock

8

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

9

1

$97.60

In stock

10

BUSH

29215-19B01

1

$38.50

In stock

11

WASHER (25.5X35X1.0)

09167-25016

1

$4.03

In stock

12

1

$122.07

In stock

13

DOG, DRIVE GEAR

29231-19B00

1
Out of stock

14

WASHER (20X30X1.0)

09181-20195

1
Out of stock

15

SPACER (25X34X5.5)

09180-25083

1

$15.42

In stock

16

SNAP RING

09380-25003

1
Out of stock

17

1

$200.50

In stock

18

WASHER (17X24X4.5)

09180-17076

1

$10.42

In stock

19

WASHER (15X26X1.0)

09181-15195

1

$2.79

In stock

20

BEARING, LH (20X47X14)

09262-20069

1
Out of stock

21

1

$19.90

In stock

22

FORK, SUB TRANSMISSION

29511-19B00

1
Out of stock

23

1

$26.50

In stock

24

CAM, SUB TRANSMISSION GEAR

29610-20B00

1
Out of stock

25

STOPPER

29630-19B00

1

$14.45

In stock

26

SPRING

09443-09042

1

$5.49

In stock

27

WASHER

08211-06141

1
Out of stock

28

BOLT (6X14.6)

09111-06054

1

$4.02

In stock

29

PIN

09223-04001

1

$1.83

In stock

30

ARM

25360-19B70

1
Out of stock

31

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

32

1

$2.27

In stock

33

1

$1.52

In stock

34

OIL SEAL (12X22X9)

09285-12006

1
Out of stock
