2001 Suzuki LT-F250 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2001 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

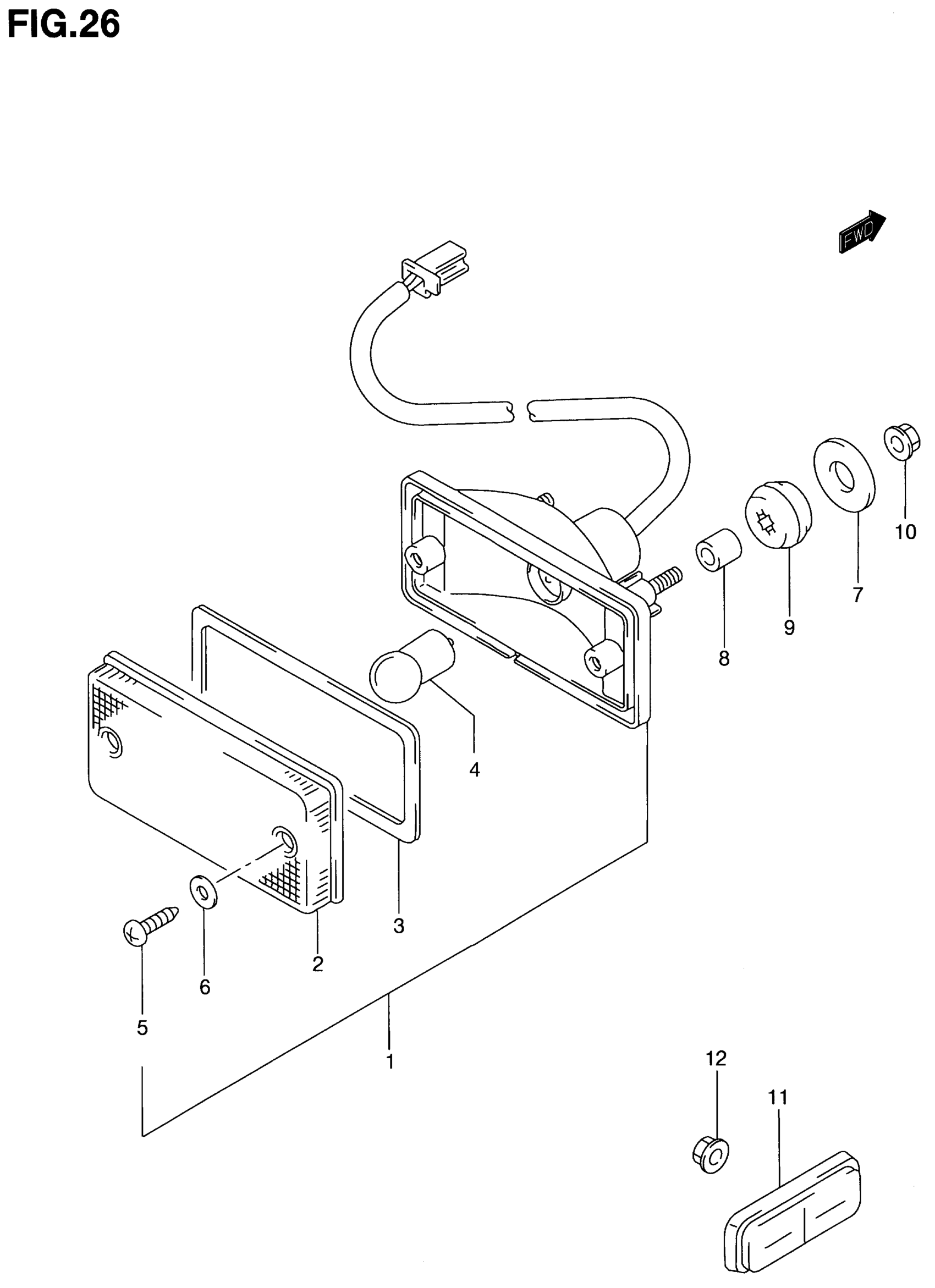

2001 Suzuki LT-F250 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, TAIL | MODEL X/Y

35710-41B02

2
Out of stock

1

LAMP ASSY, TAIL | MODEL K1; Includes Item(s) 2 - 6

35710-02C00

2
Out of stock

2

LENS

35712-18A32

2

$51.14

In stock

3

GASKET

35713-18A30

2

$10.92

In stock

4

2

$2.55

In stock

5

SCREW

03212-04169

4
Out of stock

6

GASKET

35627-43010

4

$2.65

In stock

7

.WASHER (6.5X20X1.6)

09160-06088

4

$1.80

In stock

8

SPACER (6.5X10X12)

09180-06290

4
Out of stock

9

CUSHION

09320-09010

4

$2.92

In stock

10

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

11

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

3
Out of stock

12

NUT | E28 This part replaces 08316-10053.

08316-1005A

3
Out of stock
