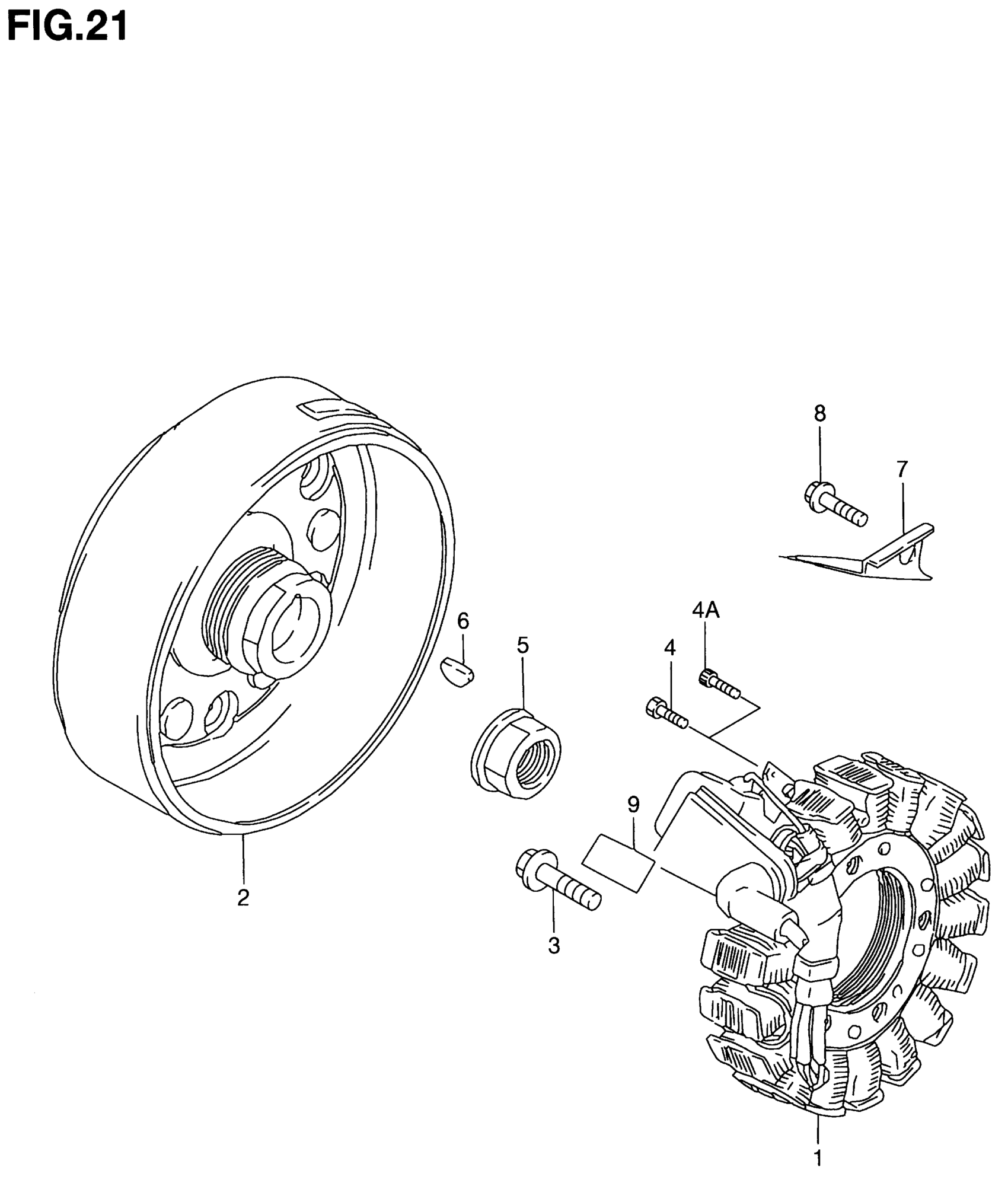

Suzuki LT-F250 (2001) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL X/Y

32101-19B10

$701.77

1

STATOR ASSY | MODEL K1

32101-19B30

$675.95

2

ROTOR | MODEL X/Y

32102-19B10

Unavailable

2

ROTOR | MODEL K1

32102-19B30

Unavailable

3

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

4

SCREW | MODEL X/Y This part replaces 02112-04103.

02112-0410A

$1.30

4A

BOLT, PICK UP & CLAMP | MODEL K1 This part replaces 07130-05103.

07130-0510B

$2.64

5

NUT

31792-18A00

$13.40

6

KEY

09420-04008

$3.08

7

PLATE

32373-19B00

Unavailable

8

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

9

SHEET, HEAT PROTECTION

37841-22D00

Unavailable
