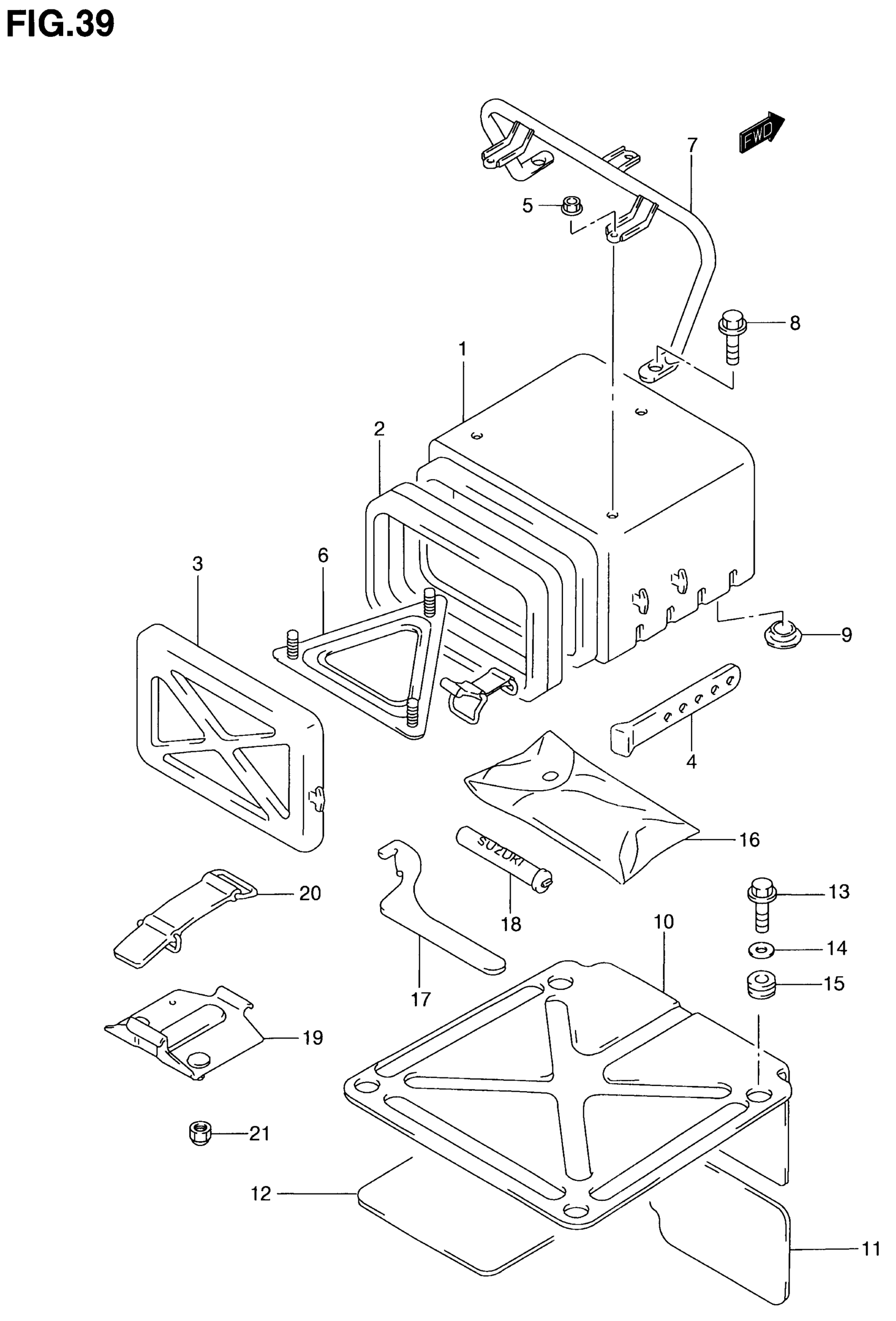

Suzuki LT-F250 (2001) REAR BOX Diagram

#

Description
Price

1

BODY, REAR BOX

93111-39DA0

Unavailable

2

MOLDING

92114-19B00

$39.73

3

LID

93121-39DA0

$23.73

4

BAND | MODEL X/Y

93191-09F00

Unavailable

4

BAND, BOX | MODEL K1 This part replaces 93191-09F10.

93191-09F11

$13.73

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

BRACKET

93230-39DA0

Unavailable

7

BRACE

93240-39DA0

Unavailable

8

BOLT, BRACE

09118-06019

$2.80

9

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.15

10

PLATE, HEAT SHIELD This part replaces 47432-19B10.

47432-19B02

Unavailable

11

SHIELD, MUFFLER NO.1

47433-19B00

Unavailable

12

SHIELD, MUFFLER NO.2

47434-19B00

Unavailable

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

WASHER

09169-06040

$1.94

15

CUSHION This part replaces 09320-08030.

09320-08511

$2.01

16

TOOL ASSY This part replaces 09800-21019.

09800-21075

$48.37

17

CLAMP, WRENCH | MODEL X/Y

09822-00004

$15.68

17

CLAMP,WRENCH | MODEL K1

09822-00003

$9.45

18

GAUGE ASSY,AIR PRESSUR | MODEL X/Y This part replaces 96200-18A01.

96200-18A02

$66.48

18

GAUGE ASSY,AIR PRESSUR | MODEL K1

96200-18A02

$66.48

19

HOLDER, TOOL

41550-49201

$15.06

20

BAND, TOOL This part replaces 09462-00073.

09462-00093

$8.34

21

NUT This part replaces 08319-31063.

08319-3106A

$2.01
