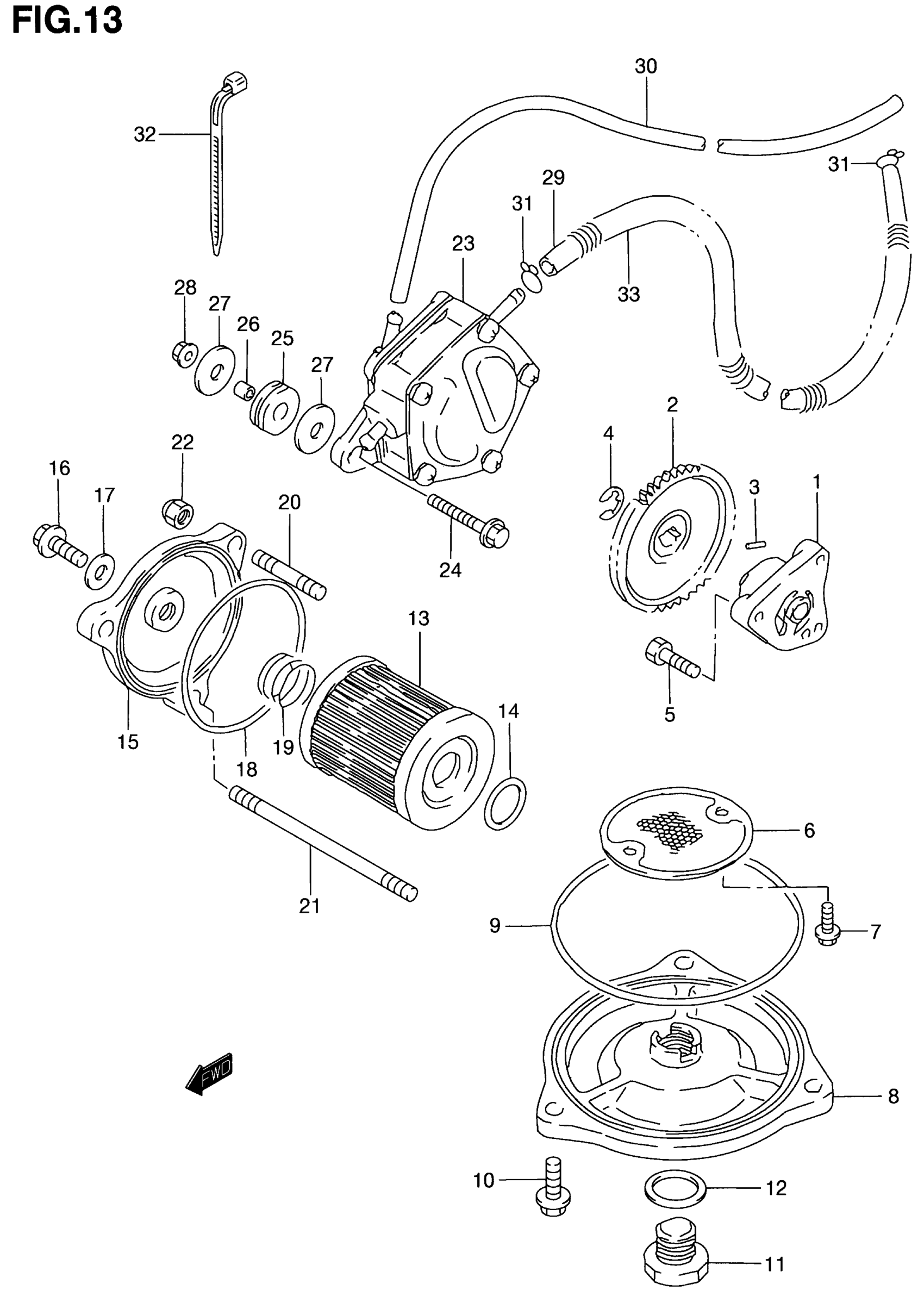

Suzuki LT-F250 (2001) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-19B00

$169.35

2

GEAR, DRIVEN (NT:47)

16331-20B00

$85.15

3

PIN

09261-02008

$1.65

4

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

5

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

6

STRAINER, ENGINE OIL

16520-05202

$5.80

7

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

8

CAP, OIL STRAINER

16523-38200

$27.85

9

O RING (D:2.4,ID:82)

09280-82001

$5.18

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

PLUG, DRAIN

09247-14026

$3.76

12

GASKET

09168-14002

$2.26

13

FILTER ASSY, ENG OIL

16510-25C00

$7.80

14

O RING (D:1.9,ID:13)

09280-13004

$2.17

15

CAP, OIL FILTER

16512-22A00

$25.60

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

17

GASKET

09168-08015

$2.79

18

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

19

SPRING

09440-18002

$1.49

20

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

21

STUD 6 X 75 This part replaces 01421-06758.

01421-0675A

$3.38

22

NUT This part replaces 08313-10063.

08313-1006A

$1.84

23

PUMP ASSY,FUEL | MODEL X This part replaces 15100-19B01.

15100-19B02

$85.97

23

PUMP ASSY,FUEL | MODEL Y/K1 This part replaces 15100-39D00.

15100-39D02

$121.14

24

BOLT | MODEL X This part replaces 01550-06253.

01550-0625A

$1.97

24

BOLT | MODEL Y/K1 This part replaces 01550-06203.

01550-0620A

$1.97

25

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

26

SPACER (6.1X9X7.5)

09180-06038

$1.98

27

WASHER (6.5X20X1.2)

09160-06077

$1.91

28

NUT This part replaces 08316-10063.

08316-1006B

$2.50

29

HOSE, FUEL (6X10X2000) | MODEL X L:2000?750

09352-60103-00B

$39.52

29

HOSE, FUEL (5.8X12.2X1000) | MODEL Y/K1 L:1000?800

09356-58125-00A

Unavailable

30

HOSE(4X7X2000) | MODEL X L:2000?730 This part replaces 09359-40701-00B.

09359-40703-00B

Unavailable

30

HOSE(4.5X8.5,6X | MODEL Y/K1 This part replaces 09359-45853-730.

09359-45856-730

$12.00

31

CLIP | MODEL X

09401-10401

$1.49

31

CLIP | MODEL Y/K1 This part replaces 09401-11407.

09401-11415

$2.23

32

CLAMP (L:235)

09407-25401

$4.66

33

SPRING | MODEL X

09440-13042

$7.84

33

SPRING | MODEL Y/K1

44466-14F00

Unavailable
