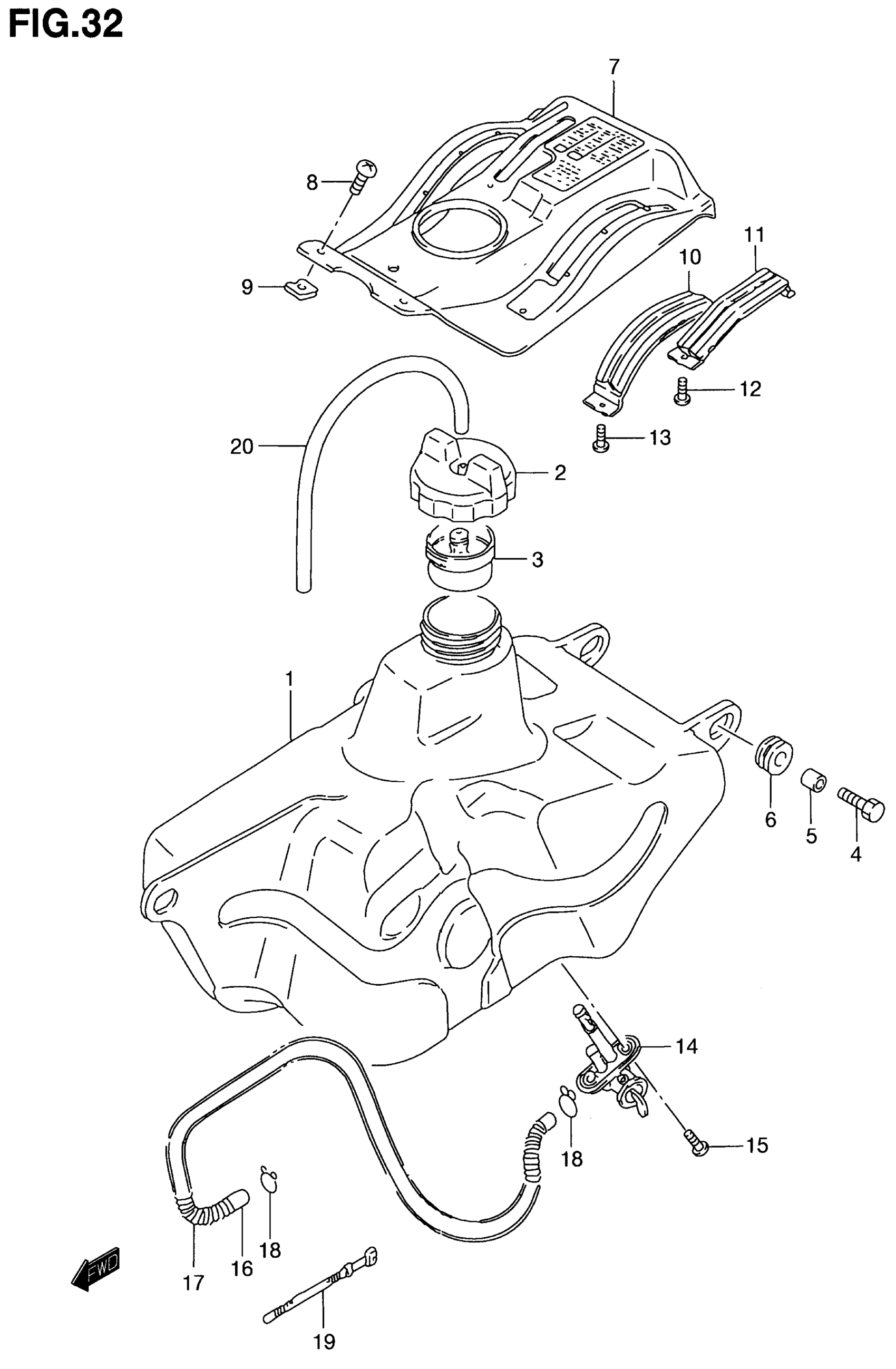

Suzuki LT-F250 (2001) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | MODEL X/Y This part replaces 44110-19B00.

44110-19B01

Unavailable

1

TANK, FUEL | MODEL K1

44110-19B01

Unavailable

2

CAP, FUEL TANK

44200-20B00

$70.65

3

TUBE, FILLER INLET

44199-19A00

$6.28

4

BOLT | MODEL X/Y

09118-08121

Unavailable

4

BOLT (8X35) | MODEL K1 This part replaces 09112-08009.

09118-08080

$3.03

5

SPACER

09180-08209

$3.04

6

CUSHION

09320-12016

$2.11

7

COVER, FUEL TANK

44271-39DB0

Unavailable

8

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

9

NUT

09148-05038

$1.97

10

PLATE, LEVER SEAL RH

57950-20B00

Unavailable

11

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

$11.07

12

SCREW This part replaces 03211-04103.

03211-0410A

Unavailable

13

SCREW This part replaces 03511-04103.

03511-0410A

$1.75

14

COCK ASSY,FUEL | MODEL X/Y This part replaces 44300-19B22.

44300-19B23

$90.18

14

COCK ASSY,FUEL | MODEL K1 This part replaces 44300-19B30.

44300-19B31

Unavailable

15

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

16

HOSE,5X10X600 | MODEL X/Y This part replaces 09355-50105-600.

44421-13ER0

$10.06

16

HOSE, FUEL (L:600?280) | K1

09355-54115-600

$14.59

17

SPRING

09440-13051

$10.76

18

CLIP | MODEL X

09401-10402

$2.42

18

CLIP | MODEL Y

09401-10403

$1.65

18

CLIP | MODEL K1

09401-11413

$2.26

19

CLAMP

09407-14403

$2.26

20

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06
