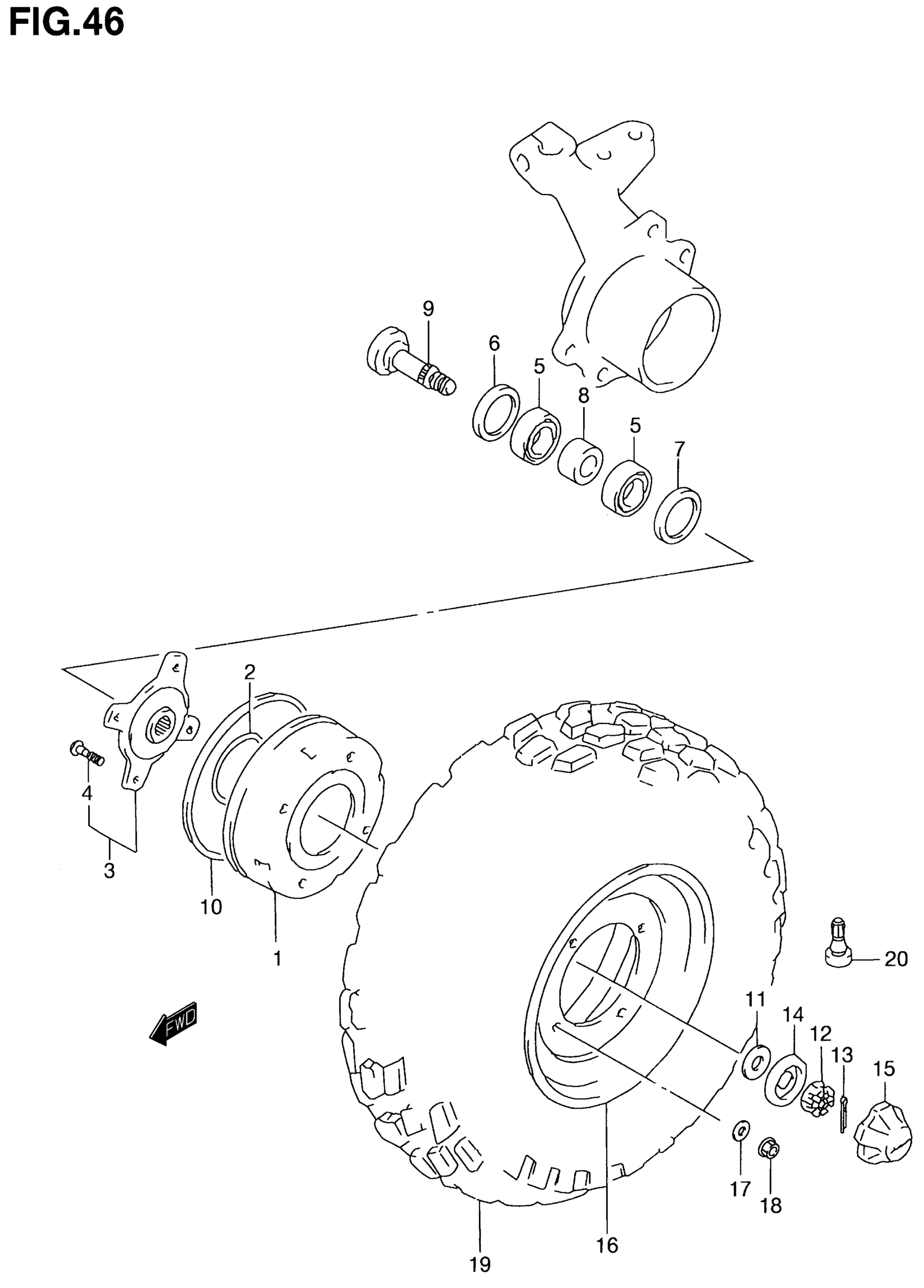

Suzuki LT-F250 (2001) FRONT WHEEL Diagram

DRUM, BRAKE

54120-19B10

Unavailable

O RING (ID:79.8,D:2.40)

09280-80001

$3.89

HUB, FRONT | Includes Item(s) 4

54110-19B01

Unavailable

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

BEARING, FRONT HUB

08123-60067

$29.13

DUST SEAL, INNER (38X55X8)

09283-38012

$14.74

DUST SEAL, OUTER (38X55X6.4)

09283-38013

$11.86

SPACER, FRONT HUB

54731-19B00

$11.24

AXLE,FRONT This part replaces 54711-20B01.

54711-20B0V

$78.34

DUST SEAL, DRUM BRAKE

54124-19B10

$71.63

WASHER, HUB

09164-18004

$3.76

NUT, HUB

09141-18008

$8.37

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

HOLDER, CENTER CAP

64726-19B00

$3.31

CAP, WHEEL CENTER

54725-39D00

$14.76

RIM, FRONT WHEEL (10X6.0AT) (SILVER)

55310-20B00-13L

Unavailable

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

NUT This part replaces 08316-10103.

08316-1010B

$2.66

TIRE, T/L FRONT (AT22X8-10) (DUNLOP)

55100-20B51

Unavailable

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

$8.85
