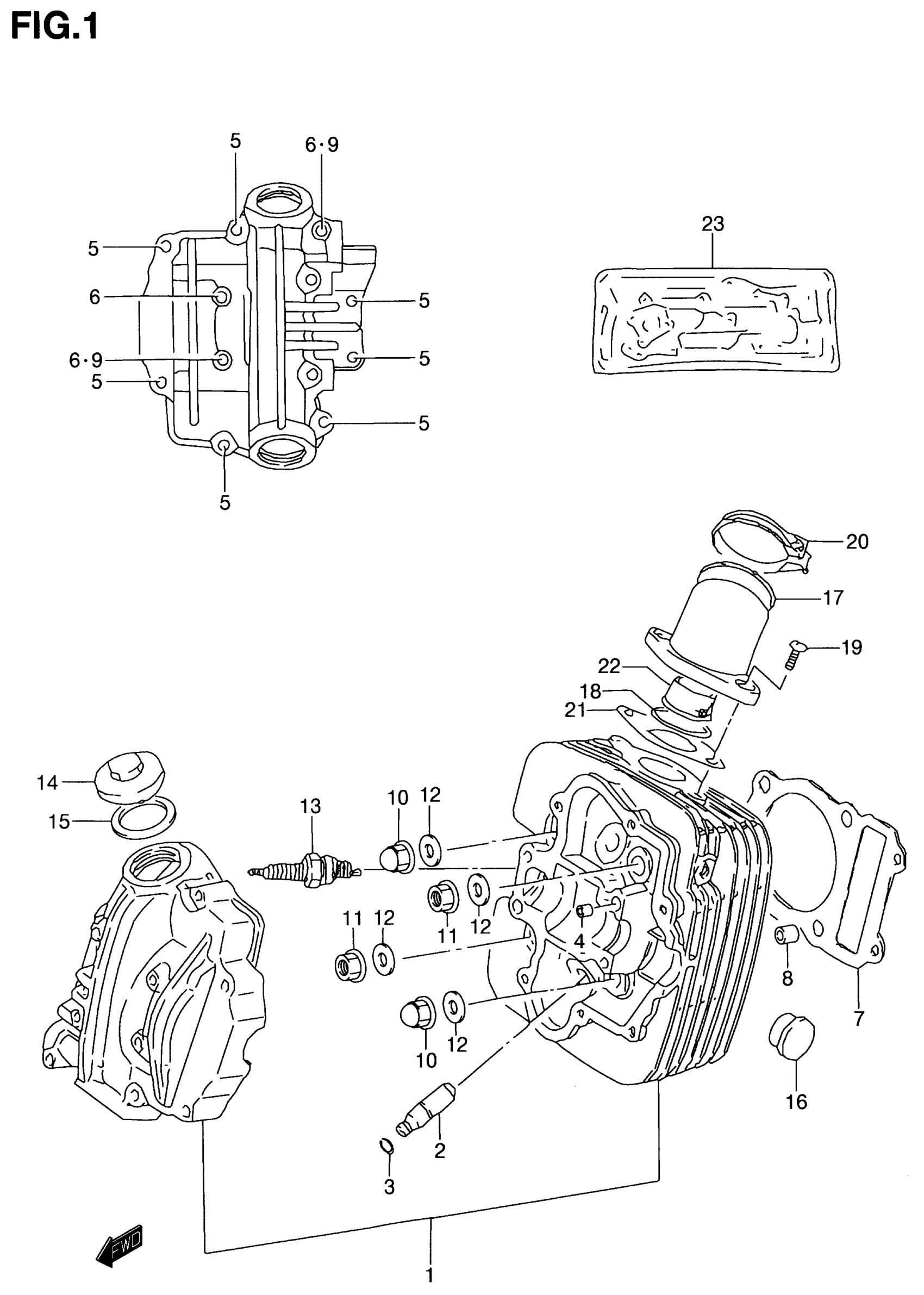

Suzuki LT-F250 (2001) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL X/Y

11100-19B01

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K1; Includes Item(s) 2 - 6

11100-19B10

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

6

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

7

GASKET, CYLINDER HEAD

11141-19B00

$15.10

8

PIN

04211-11169

$1.78

9

GASKET

09168-06023

$2.35

10

NUT

09159-08049

$4.71

11

NUT This part replaces 08316-10083.

08316-1008B

$2.66

12

GASKET

09168-08021

$2.61

13

SPARK PLUG (NGK,DR7EA)

09482-00398

$3.03

13

SPARK PLUG (DENSO,X22ESR-U)

09482-00222

$5.36

14

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

15

.O RING (D:3,ID:29.5)

09280-30001

$1.72

16

PLUG, HEAD

09241-22002

$5.24

17

PIPE ASSY,INTAK | MODEL X This part replaces 13110-19B52.

13101-19B51

$70.20

17

PIPE ASSY, INTAKE | MODEL Y This part replaces 13110-39D00.

13101-39D00

$116.42

17

PIPE, INTAKE | MODEL K1

13101-39D00

$116.42

18

O RING (D:2.1,ID:34.7)

09280-35005

$9.05

19

SCREW This part replaces 02112-76203.

02112-7620B

$2.78

20

CLAMP

09402-50208

$4.77

21

GASKET, INTAKE PIPE

13120-19B01

$4.72

22

NET, INTAKE | MODEL X

13130-19B50

Unavailable

23

GASKET SET This part replaces 11401-19862.

11401-19864

$187.13
