1997 Suzuki LT-F250 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

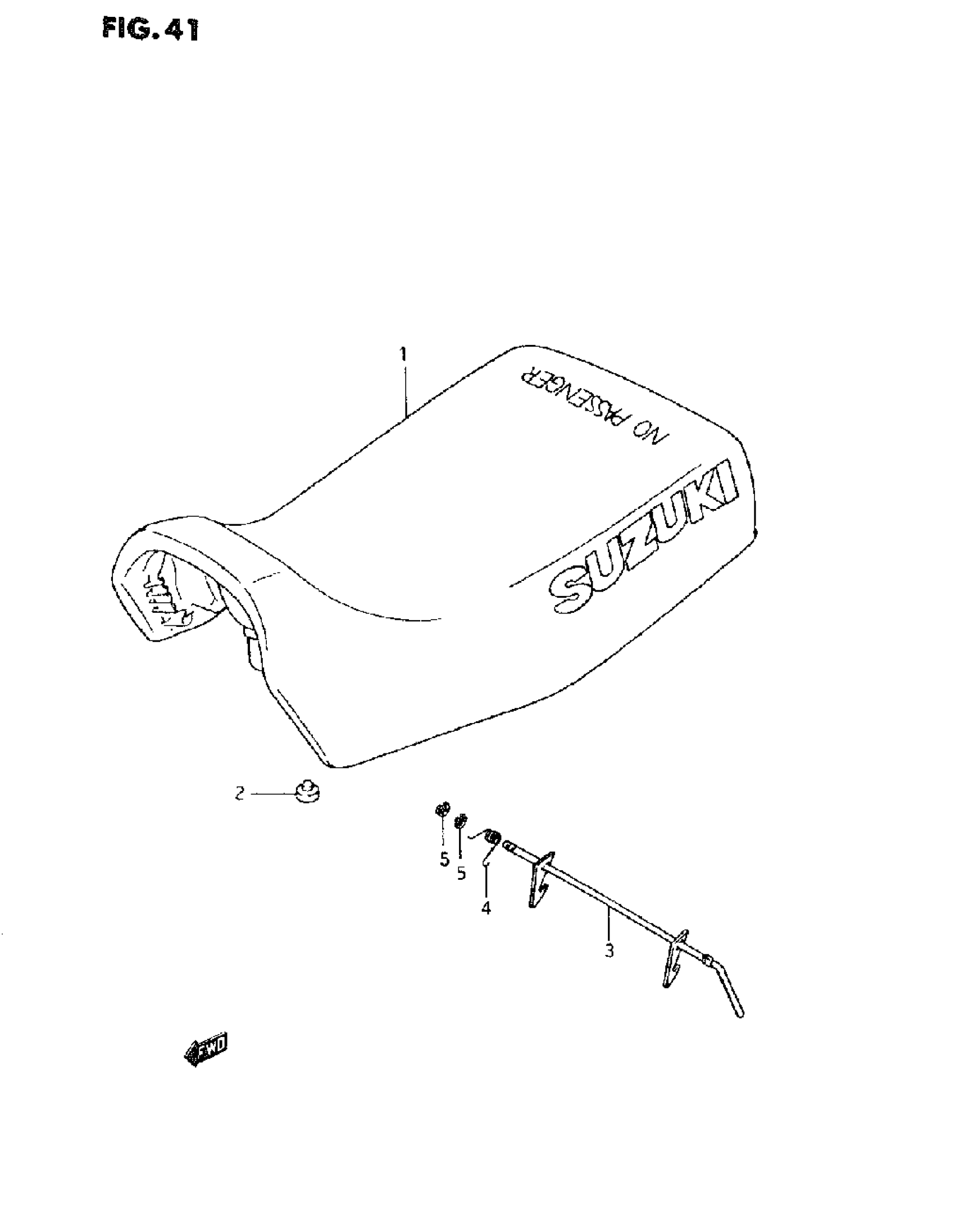

1997 Suzuki LT-F250 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | E3

45100-19B10-9MG

1
Out of stock

1

SEAT ASSY | E28

45100-19B30-9MG

—
Out of stock

2

CUSHION

09329-10001

4

$2.56

In stock

3

CLAW, SEAT

45210-19B00

1
Out of stock

4

SPRING

45135-24301

1
Out of stock

5

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock
