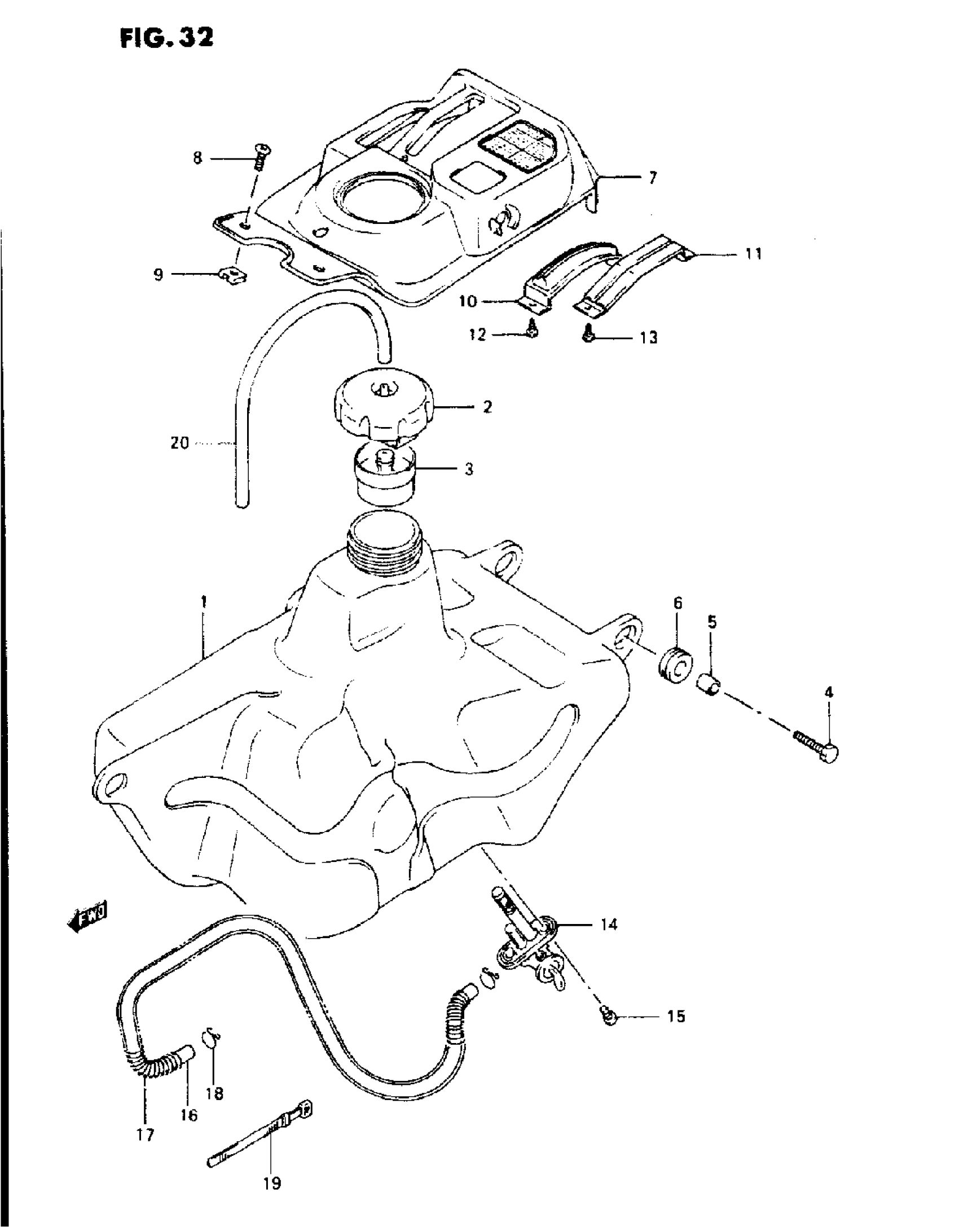

Suzuki LT-F250 (1997) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

Unavailable

2

CAP, FUEL TANK

44200-20B00

$79.73

3

TUBE, FILLER INLET

44199-19A00

$5.91

4

BOLT

09118-08121

Unavailable

5

SPACER

09180-08209

$2.80

6

CUSHION

09320-12016

$2.57

7

COVER, FUEL TANK

44271-20B00

Unavailable

8

SCREW This part replaces 09136-06062.

09136-06017

$2.39

9

NUT

53141-19A00

$3.97

10

PLATE, LEVER SEAL RH

57950-20B00

Unavailable

11

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

$12.50

12

SCREW This part replaces 03211-04103.

03211-0410A

Unavailable

13

SCREW This part replaces 03511-04103.

03511-0410A

$1.90

14

COCK ASSY,FUEL This part replaces 44300-19B20.

44300-19B23

$82.54

15

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

16

HOSE,5X10X600 This part replaces 09355-50105-600.

44421-13ER0

$9.08

17

SPRING This part replaces 09440-13020.

09440-13051

$9.85

18

CLIP

09401-10403

$1.67

19

CLAW

09407-14403

$2.24

20

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.08
