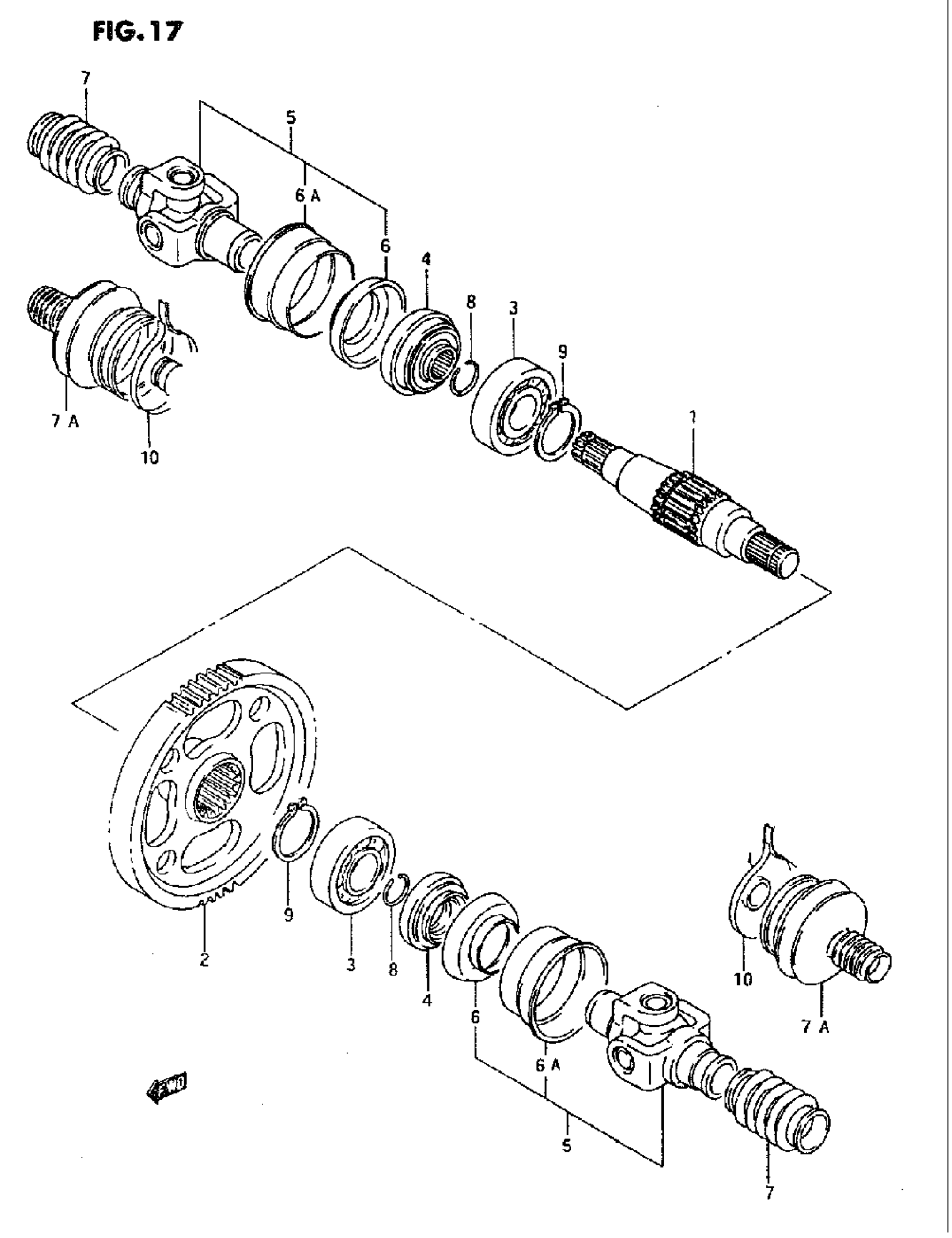

Suzuki LT-F250 (1995) TRANSMISSION (3) Diagram

#

Description
Price

1

SHAFT,REAR FINA This part replaces 27551-19B10.

27551-19B11

$293.05

2

GEAR, DRIVEN (NT:62) | MODEL J/K/L/M/N/P/R This part replaces 27541-19B02.

27541-19B10

Unavailable

2

GEAR DRIVEN (NT:62) | MODEL S/T

27541-19B10

Unavailable

3

BEARING (25X62XL7)

09262-25073

$25.92

4

OIL SEAL

09283-34008

$20.72

5

JOINT, REAR FINAL OUTPUT | MODEL J/K/L/M This part replaces 27501-19B10.

27501-19B11

Unavailable

5

JOINT, REAR FINAL OUTPUT | MODEL N/P/R

27501-19B11

Unavailable

5

JOINT, REAR FINAL OUTPUT | MODEL S/T This part replaces 27501-19B70.

27501-19B80

$392.00

6

PLATE | MODEL J/K/L/M/N/P/R

27592-19B10

Unavailable

6

COVER, UNIVERSAL JOINT | MODEL S/T This part replaces 27592-19B70.

27592-19B80

$37.47

6

COVER. UNIVERSAL JOINT | MODEL S/T

27593-19B70

$26.12

7

BOOT | MODEL J/K/L/M/N/P/R

27153-62021

$14.26

7

BOOT,UNIVERSAL | MODEL S/T This part replaces 27153-19B70.

27153-19B71

$14.59

8

RING (0D:24.D:1.6)

09381-24001

$2.76

9

CIRCLIP This part replaces 08331-31406.

08331-31409

$3.58

10

CLAMP, UNIVERSAL JOINT | MODEL S/T

44123-60A00

$21.90
