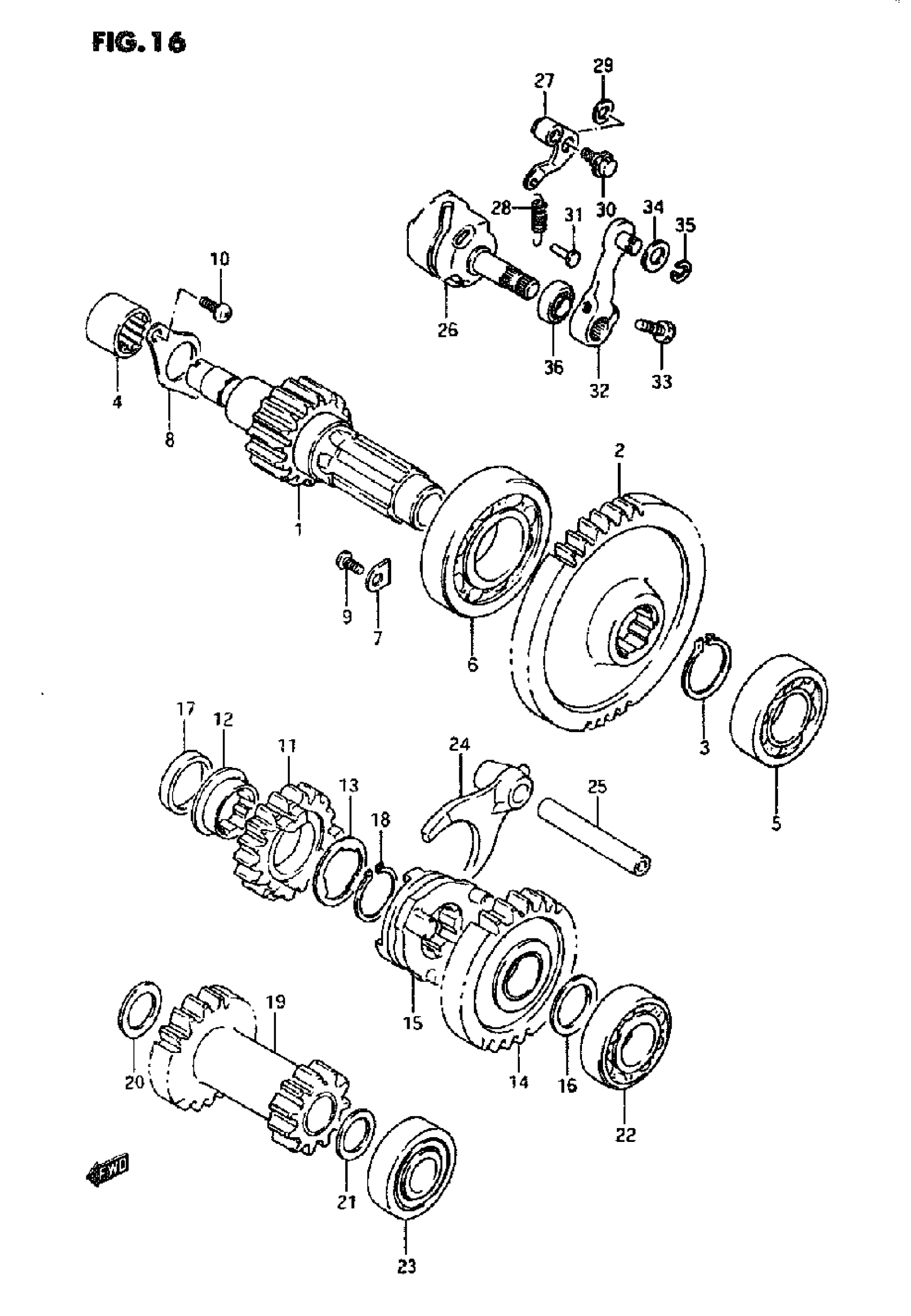

Suzuki LT-F250 (1995) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, SUB TRANSMISSION

29121-20B00

Unavailable

2

GEAR. DRIVEN NO.1 (NT:43)

29311-20B00

Unavailable

3

CIRCLIP This part replaces 08331-31326.

08331-3132A

Unavailable

4

BEARING, RH

09263-18023

Unavailable

5

BEARING. LH | MODEL J/K/L/M/N

08113-62057

$27.83

5

BEARING, LH | MODEL P/R/S/T

09262-25003

$22.40

6

BEARING, MIDDLE (35X72XL7)

09262-35038

$42.19

7

RETAINER

24741-21A00

$2.80

8

RETAINER

24751-19B00

Unavailable

9

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

10

SCREW This part replaces 02112-06163.

02112-0616A

$1.43

11

GEAR, DRIVE NO.1 (NT:18) This part replaces 29211-19B00.

29211-19B01

$97.60

12

BUSH This part replaces 29215-19B00.

29215-19B01

$27.30

13

WASHER

09167-25016

$4.03

14

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

$122.07

15

DOG, DRIVE GEAR

29231-19B00

Unavailable

16

WASHER

08211-20301

$2.97

17

SPACER (25X34X5.5)

09180-25083

$15.42

18

SNAP RING

09380-25003

$2.80

19

GEAR, IDLE (NT:17/11) This part replaces 29150-19B02.

29150-19B10

$200.50

20

WASHER (L7X24X4.5)

09180-17076

$10.42

21

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.59

22

BEARING, DRIVE SHAFT LH | MODEL J/K/L/M/N/P This part replaces 09262-20062.

09262-20069

$21.00

22

BEARING, DRIVE SHAFT LH | MODEL R/S/T

09262-20069

$21.00

23

BEARING This part replaces 09262-15022.

09262-15062

$19.90

24

FORK. SUB TRANSMISSION

29511-19B00

Unavailable

25

SHAFT, NO.1 | MODEL J/K/L/M/N This part replaces 25421-35401.

25421-35410

$26.50

25

SHAFT, NO.1 | MODEL P/R This part replaces 25421-35402.

25421-35410

$26.50

25

SHAFT, NO.1 | MODEL S/T This part replaces 25421-35403.

25421-35410

$26.50

26

CAM SUB TRANSMISSION GEAR

29610-20B00

Unavailable

27

STOPPER

29630-19B00

$14.45

28

SPRING

09443-09042

$5.49

29

WASHER

08211-06141

$1.61

30

BOLT | MODEL J/K/L/M/N/P/R This part replaces 09111-06019.

09111-06054

$4.02

30

BOLT (6XL4.6) | MODEL S/T

09111-06054

$4.02

31

PIN

09223-04001

$1.83

32

ARM | MODEL J/K

25360-19B00

$74.95

32

ARM | MODEL L/M/N/P/R/S/T

25360-19B70

$74.95

33

BOLT | MODEL J/K/L/M/N This part replaces 09100-06091.

01500-06207

$1.99

33

BOLT | MODEL P This part replaces 01107-06207.

01500-06207

$1.99

33

BOLT, GEAR SHIFT LINK | MODEL R/S/T This part replaces 01500-06203.

01500-0620A

$1.77

34

WASHER This part replaces 08322-11083.

08322-0108A

$2.18

35

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

36

OIL SEAL (12X22X9)

09285-12006

$5.70
