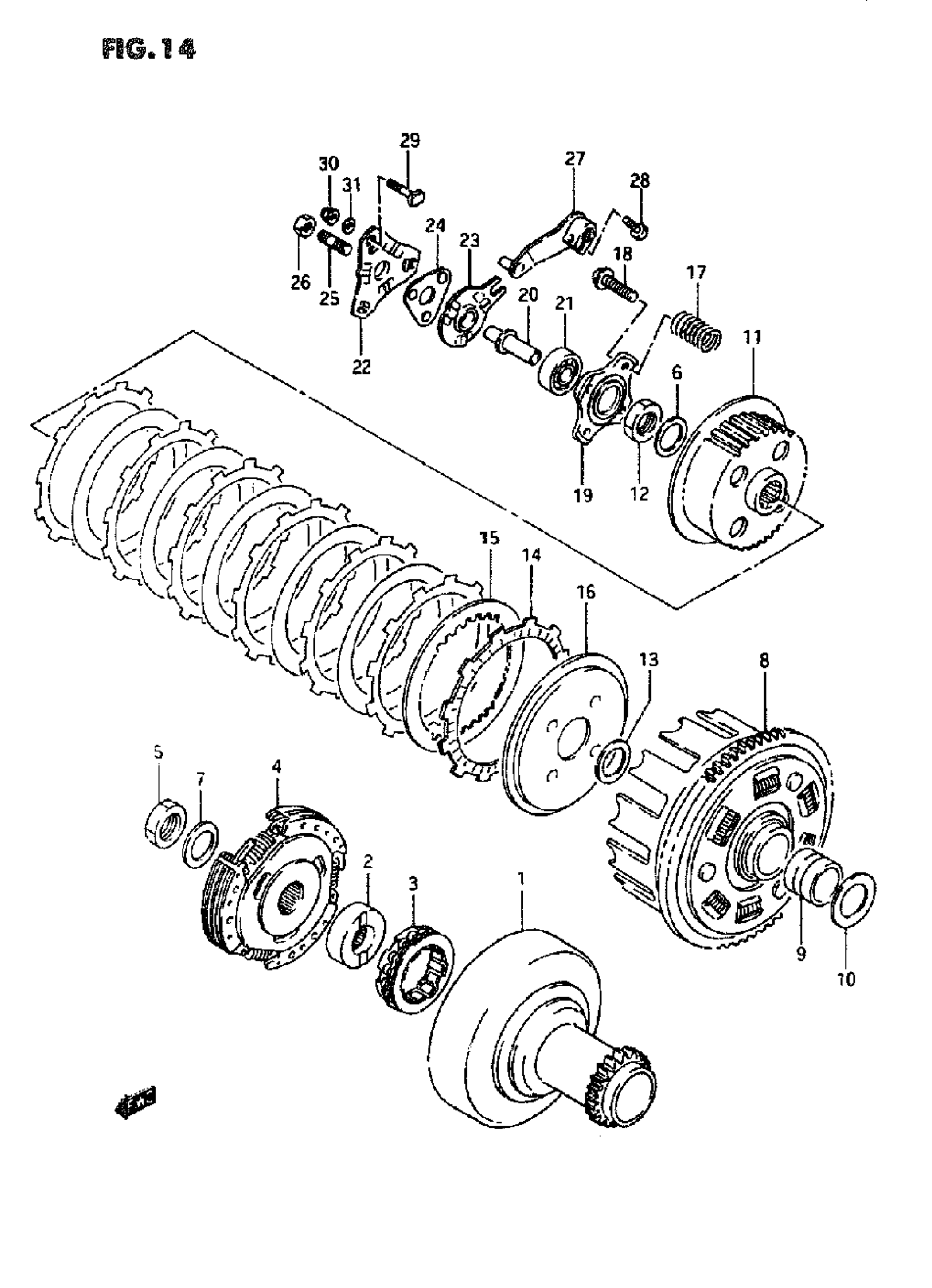

Suzuki LT-F250 (1995) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:21) This part replaces 21110-19B11.

21110-19B12

Unavailable

2

RACE, INNER This part replaces 21631-19B10.

21631-19B11

$40.83

3

CLUTCH. ONE WAY

21273-19B10

$181.53

4

CLUTCH ASSY,SHO This part replaces 21500-19B21.

21500-19B22

$249.00

5

NUT

09140-18012

$7.55

6

LOCK WASHER (ID:20.1)

09164-20007

$5.00

7

LOCK WASHER (ID: 18. 3) | MODEL J/K/L/M/N/P/R/S

09164-18001

$2.97

7

LOCK WASHER (ID:18.3) | MODEL T This part replaces 09164-18007.

09164-18001

$2.97

8

GEAR ASSY, PRIMARY DRIVEN | NT:60, MODEL J/K/L/M This part replaces 21200-19B01.

21200-19B03

Unavailable

8

GEAR ASSY, PRIMARY DRIVEN | NT:60.MODEL N This part replaces 21200-19B02.

21200-19B03

Unavailable

8

GEAR ASSY, PRIMARY DRIVEN | NT:60.MODEL P/R/S/T

21200-19B03

Unavailable

9

SPACER

09180-22035

$23.07

10

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

$4.12

11

HUB, CLUTCH

21410-24500

Unavailable

12

NUT This part replaces 09140-20002.

09140-20001

$3.04

13

WASHER

08211-20323

$3.30

14

PLATE, DRIVE | MODEL J/K/L/M/N This part replaces 21441-41B01.

21441-22A01

$13.87

14

PLATE, DRIVE | MODEL P This part replaces 21441-41B02.

21441-22A01

$13.87

14

PLATE. DRIVE | MODEL R/S/T

21441-22A01

$13.87

15

PLATE. DRIVEN

21451-01B40

$7.69

16

DISC, PRESSURE

21462-24501

$60.83

17

SPRING

09440-19017

$4.72

18

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06207.

01550-06207

$2.31

18

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

19

PLATE, RELEASE

21465-24500

$21.62

20

PIECE, PUSH

23121-19B00

Unavailable

21

BEARING

09262-12001

$16.90

22

GUIDE. BALL OUTER

23231-19B10

Unavailable

23

GUIDE, BALL INNER

23211-24201

Unavailable

24

BALL, RELEASE

23250-31003

$31.82

25

SCREW, ADJUSTER

09134-08009

$4.20

26

NUT | MODEL J/K/L/M/N/P This part replaces 08310-22088.

08310-00087

$1.83

26

NUT, ADJUSTER | MODEL R/S This part replaces 09140-08012.

09140-08019

$2.32

26

NUT, ADJUSTER | MODEL T

09140-08019

$2.32

27

ARM, RELEASE

23220-24500

$37.17

28

BOLT

01500-06207

$1.99

29

BOLT

09119-06068

$2.77

30

NUT | MODEL J/K/L/M/N/P This part replaces 08313-21064.

08313-2006A

$1.97

30

NUT | MODEL R/S/T This part replaces 08313-20063.

08313-2006A

$1.97

31

SEAL, BOLT

09168-06023

$2.01
