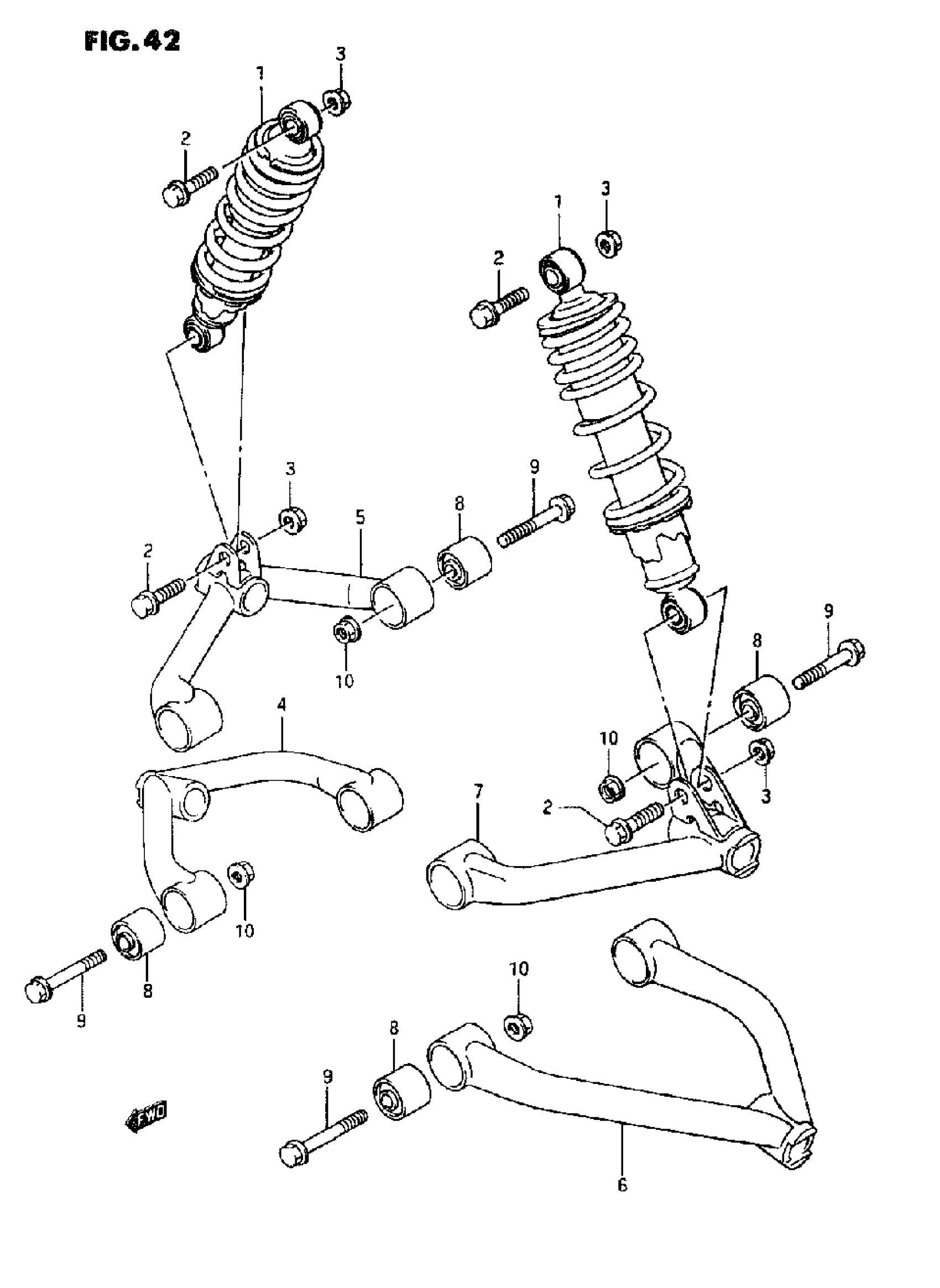

Suzuki LT-F250 (1995) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY. FRONT SHOCK (ORANGE) | MODEL J/K/L/M/N

52100-20B00-25G

Unavailable

1

ABSORBER ASSY. FRONT SHOCK (BLACK) | MODEL P/R/S/T

52100-20B00-019

Unavailable

2

BOLT. SHOCK ABSORBER

09103-10019

$2.63

3

NUT | MODEL J/K/L/M/N/P/R/S

08319-31107

$2.73

3

NUT | MODEL T This part replaces 08319-31103.

08319-3110A

$2.73

4

ARM, SUSPENSION, LOWER RH

52410-20B00

Unavailable

5

ARM, SUSPENSION, UPPER RH

52430-20B00

Unavailable

6

ARM, SUSPENSION, LOWER LH

52420-20B00

Unavailable

7

ARM, SUSPENSION, UPPER LH

52440-20B00

Unavailable

8

BUSH, SUSPENSION ARM

09319-10055

$21.02

9

BOLT, SUSPENSION ARM PIVOT

09103-10107

$4.60

10

NUT This part replaces 08319-31105.

08319-3110A

$2.73
