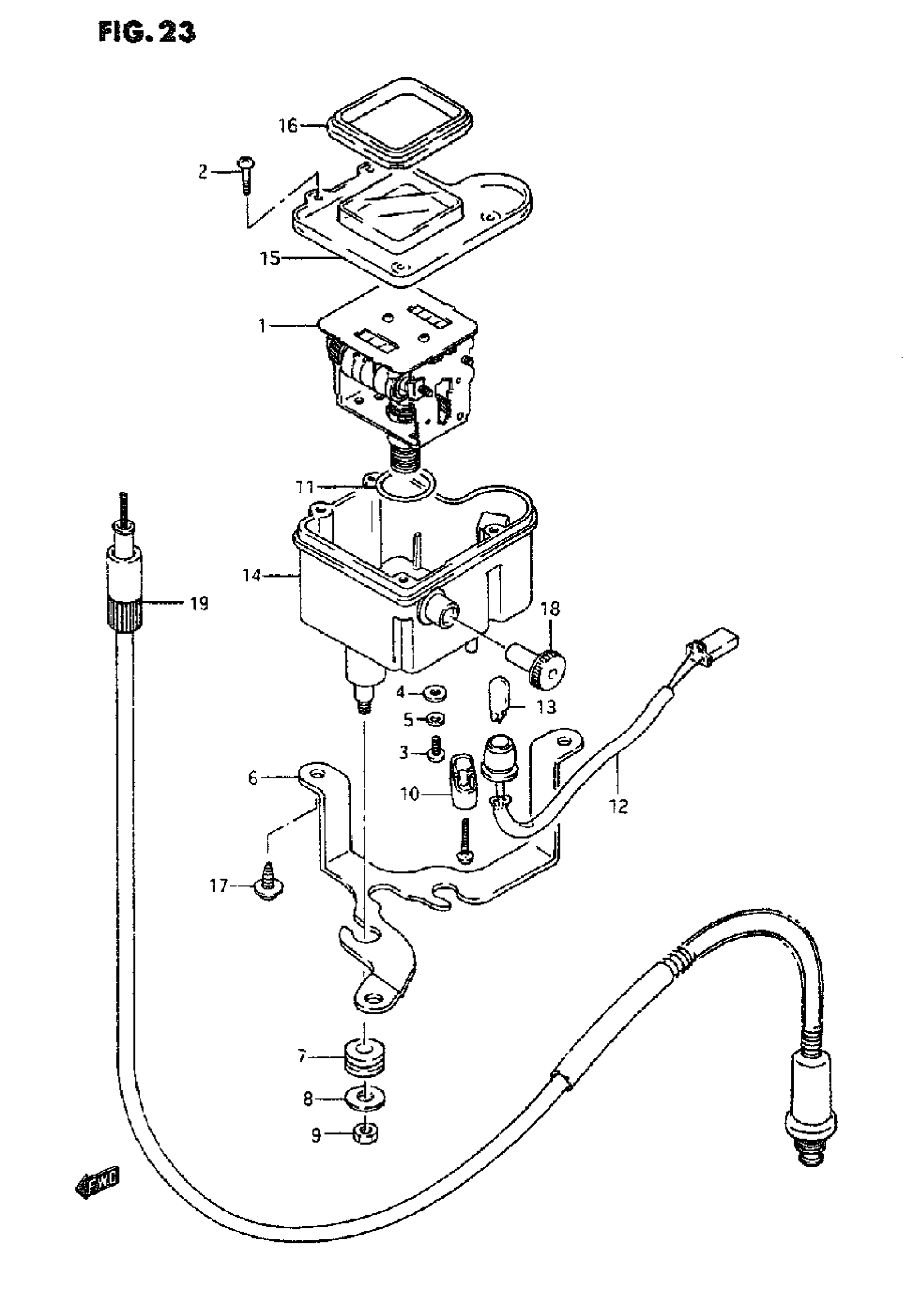

Suzuki LT-F250 (1995) ODOMETER Diagram

#

Description
Price

1

ODOMETER (MILE/KILO)

34720-20B10

Unavailable

1

ODOMETER (MILE/KILO)

34721-18A10

Unavailable

2

SCREW (3X16) | MODEL J/K/L/M/N/P/R/S This part replaces 34744-18A00.

09132-03008

$1.53

2

SCREW (3X16) | MODEL T

09132-03008

$1.53

3

SCREW | MODEL J/K/L/M/N/P This part replaces 02112-04106.

02112-0410A

$1.49

3

SCREW | MODEL R/S/T This part replaces 02112-04103.

02112-0410A

$1.49

4

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-21046.

08322-0104A

$1.91

4

WASHER | MODEL R/S/T This part replaces 08322-01043.

08322-0104A

$1.91

5

LOCK WASHER | MODEL J/K/L/M/N/P This part replaces 08321-21046.

08321-0104A

$1.84

5

LOCK WASHER | MODEL R/S/T This part replaces 08321-01043.

08321-0104A

$1.84

6

BRACKET

34950-20B00

Unavailable

7

CUSHION

34189-45410

Unavailable

8

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

9

NUT | MODEL J/K/L/M/N/P This part replaces 08310-11057.

08310-00057

$1.84

9

NUT | MODEL R/S/T

08310-00057

$1.84

10

COVER

34193-20B00

Unavailable

11

PACKING

34742-18A00

Unavailable

12

SOCKET

34170-20B00

Unavailable

13

BULB (12V, 3.4W)

09471-12028

$1.99

14

CASE

34111-20B00

Unavailable

15

LENS, ODOMETER

34150-20B00

Unavailable

16

PACKING, RUBBER

34726-18A00

Unavailable

17

SCREW | MODEL J/K/L/M/N/P This part replaces 03541-05125.

03541-0512A

$1.49

17

SCREW | MODEL R/S/T This part replaces 03541-05123.

03541-0512A

$1.49

18

KNOB

34124-18A00

Unavailable

19

CABLE ASSY,ODOM This part replaces 34910-20B00.

34910-20B01

Unavailable
