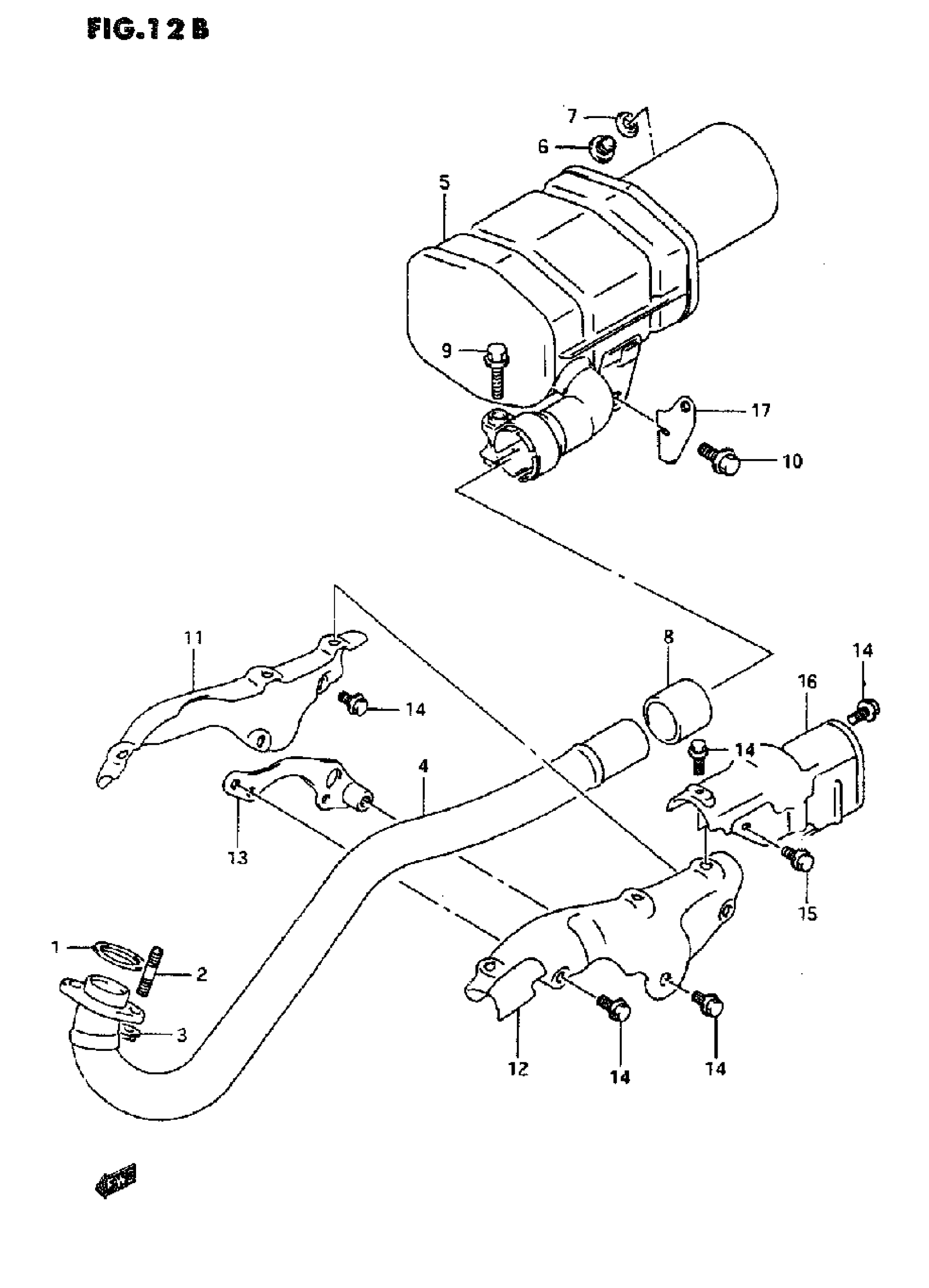

Suzuki LT-F250 (1995) MUFFLER (MODEL M/N/P/R/S/T) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | MODEL M/N/P/R This part replaces 14181-19B00.

14181-42A00

$10.01

1

GASKET, EXHAUST PIPE | MODEL S/T

14181-42A00

$10.01

2

STUD BOLT | MODEL M/N This part replaces 01421-08205.

01421-0820A

$1.92

2

STUD BOLT | MODEL P/R/S/T This part replaces 01421-08208.

01421-0820A

$1.92

3

NUT | MODEL M/N/P/R/S This part replaces 08361-15085.

08361-1508A

$2.03

3

NUT | MODEL T This part replaces 08361-15083.

08361-1508A

$2.03

4

PIPE, EXHAUST This part replaces 14150-19B71.

14150-19BA0

Unavailable

5

MUFFLER | MODEL M/N/P/R/S This part replaces 14310-19B72.

14310-19BA0

$401.38

5

MUFFLER | MODEL T This part replaces 14310-19B73.

14310-19BA0

$401.38

6

PLUG, DRAIN

09247-12103

$2.80

7

GASKET

09168-12002

$1.59

8

GASKET, MUFFLER

14771-25C00

Unavailable

9

BOLT | MODEL M/N This part replaces 01517-08405.

01550-08407

$2.63

9

BOLT | MODEL P/R/S/T This part replaces 01550-08403.

01550-0840A

$2.80

10

BOLT

09118-08119

$4.12

11

GUARD, EXHAUST INNER

14780-19B70

Unavailable

12

GUARD, EXHAUST OUTER | MODEL M This part replaces 14790-39D00.

14790-39D03

$102.21

12

GUARD, EXHAUST OUTER | MODEL N/P This part replaces 14790-39D01.

14790-39D03

$102.21

12

GUARD, EXHAUST OUTER | MODEL R This part replaces 14790-39D02.

14790-39D03

$102.21

12

GUARD. EXHAUST OUTER | MODEL S/T

14790-39D03

$102.21

13

STAY, EXHAUST GUARD

14770-19B70

Unavailable

14

BOLT This part replaces 01547-06103.

01547-0610B

$2.47

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

16

COVER, MUFFLER CONNECTOR

14775-19B80

Unavailable

17

STAY, CONNECTOR COVER

14760-19B80

$40.29
