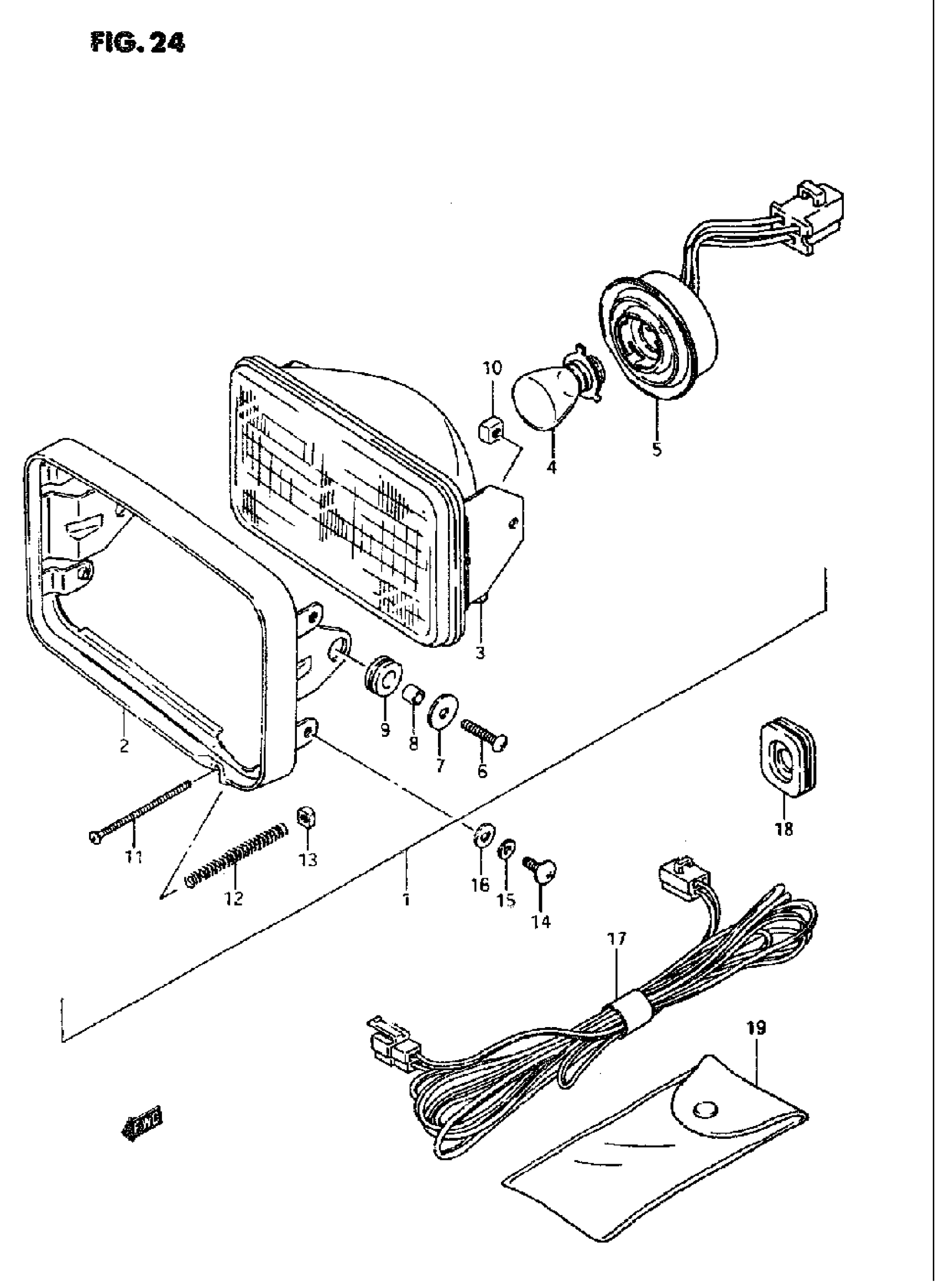

Suzuki LT-F250 (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-41B01

Unavailable

2

RIM

35111-41B01

Unavailable

3

UNIT, LAMP

35121-41B00

Unavailable

4

BULB (12V, 45/45W)

09471-12080

$6.58

5

SOCKET

35171-41B00

Unavailable

6

SCREW | MODEL J/K/L/M/N/P This part replaces 02112-05206.

02112-0520B

$1.84

6

SCREW | MODEL R/S/T This part replaces 02112-05203.

02112-0520B

$1.84

7

WASHER | MODEL J/K/L/M/N/P/R This part replaces 35138-41B01.

09160-05013

$1.49

7

WASHER | MODEL S/T

09160-05013

$1.49

8

SPACER

35133-41B01

Unavailable

9

CUSHION

35139-41B01

Unavailable

10

NUT

35135-45900

$3.25

11

SCREW

35151-45900

$3.65

12

SPRING

35154-41B00

Unavailable

13

NUT

35135-45600

$3.65

14

.SCREW | MODEL J/K/L/M/N/P This part replaces 02142-05124.

02142-0512A

$1.49

14

SCREW | MODEL R/S/T This part replaces 02112-75123.

02112-7512A

$2.42

15

LOCK WASHER | MODEL J/K/L/M/N/P This part replaces 08321-21055.

08321-0105A

$1.84

16

WASHER, FRONT | MODEL J/K/L/M/N/P This part replaces 08322-21055.

08322-0105A

$1.84

17

WIRE, HEADLAMP LEAD

36856-41B00

Unavailable

18

GROMET

09320-13019

Unavailable

19

BAG, LEAD WIRE

09811-00301

Unavailable
