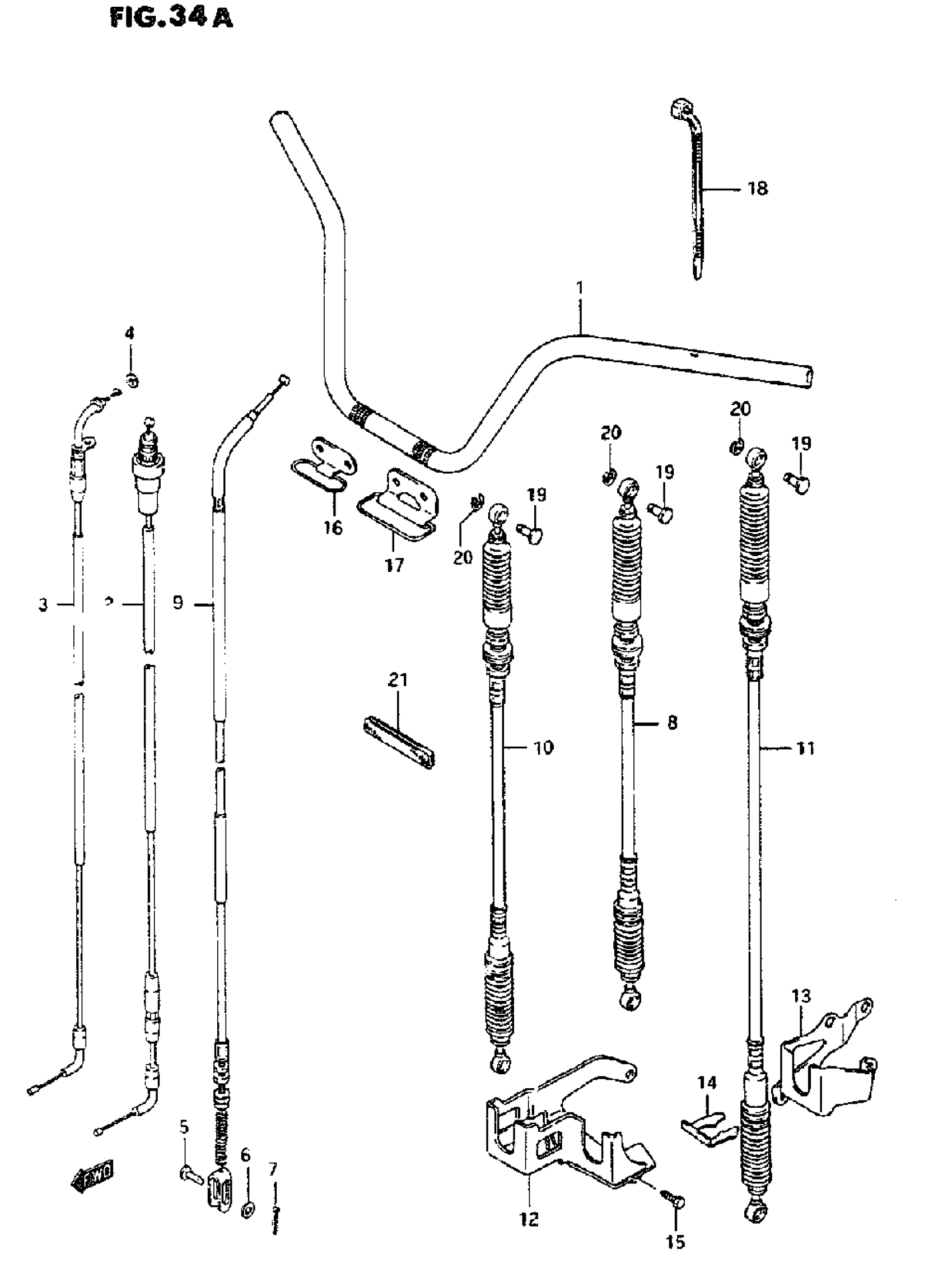

Suzuki LT-F250 (1995) HANDLEBAR CABLE (MODEL L/M/N/P/R/S/T) Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-20B01-291.

56111-20B02

Unavailable

2

CABLE ASSY, THROTTLE

58300-19B20

$21.76

3

CABLE, STARTER

58410-19B10

$34.73

4

WASHER This part replaces 09161-05015.

09320-06503

$2.63

5

PIN. REAR CABLE PEDAL SIDE

09200-06013

$2.00

6

.WASHER | MODEL L/M/N/P This part replaces 08322-21066.

08322-0106B

$2.26

6

.WASHER | MODEL R/S/T This part replaces 08322-01063.

08322-0106B

$2.26

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

8

CABLE, T/M GEAR SHIFT

58680-19B21

$208.75

9

CABLE, PARKING BRAKE

58810-19B02

$45.20

10

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

Unavailable

11

CABLE, SUB T/M SHIFT

58880-20B10

Unavailable

12

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

13

BRACKET, CONTROL CABLE

58873-19B11

Unavailable

14

CLIP

09383-19003

$4.68

15

BOLT | MODEL L/M/N/P This part replaces 01547-06165.

01547-0616B

$2.45

15

BOLT | MODEL R/S/T This part replaces 01547-06163.

01547-0616B

$2.45

16

GUIDE, CABLE | MODEL L/M/N/P ->58620-19B10 This part replaces 58620-19B01.

58620-19B10

Unavailable

17

GUIDE, CABLE | MODEL R/S/T

58620-19B10

Unavailable

18

CLAMP, L:95

09407-11401

$2.63

18

CLAMP, L.125

09407-14403

$2.26

18

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

19

PIN

09208-08008

$2.53

20

CIRCLIP | MODEL L/M/N/P This part replaces 08332-11066.

08332-1106A

$1.49

20

CIRCLIP | MODEL R/S/T This part replaces 08332-11063.

08332-1106A

$1.49

21

PROTECTOR, CONTROL CABLE | MODEL L/M/N

44552-24B00

$14.08
