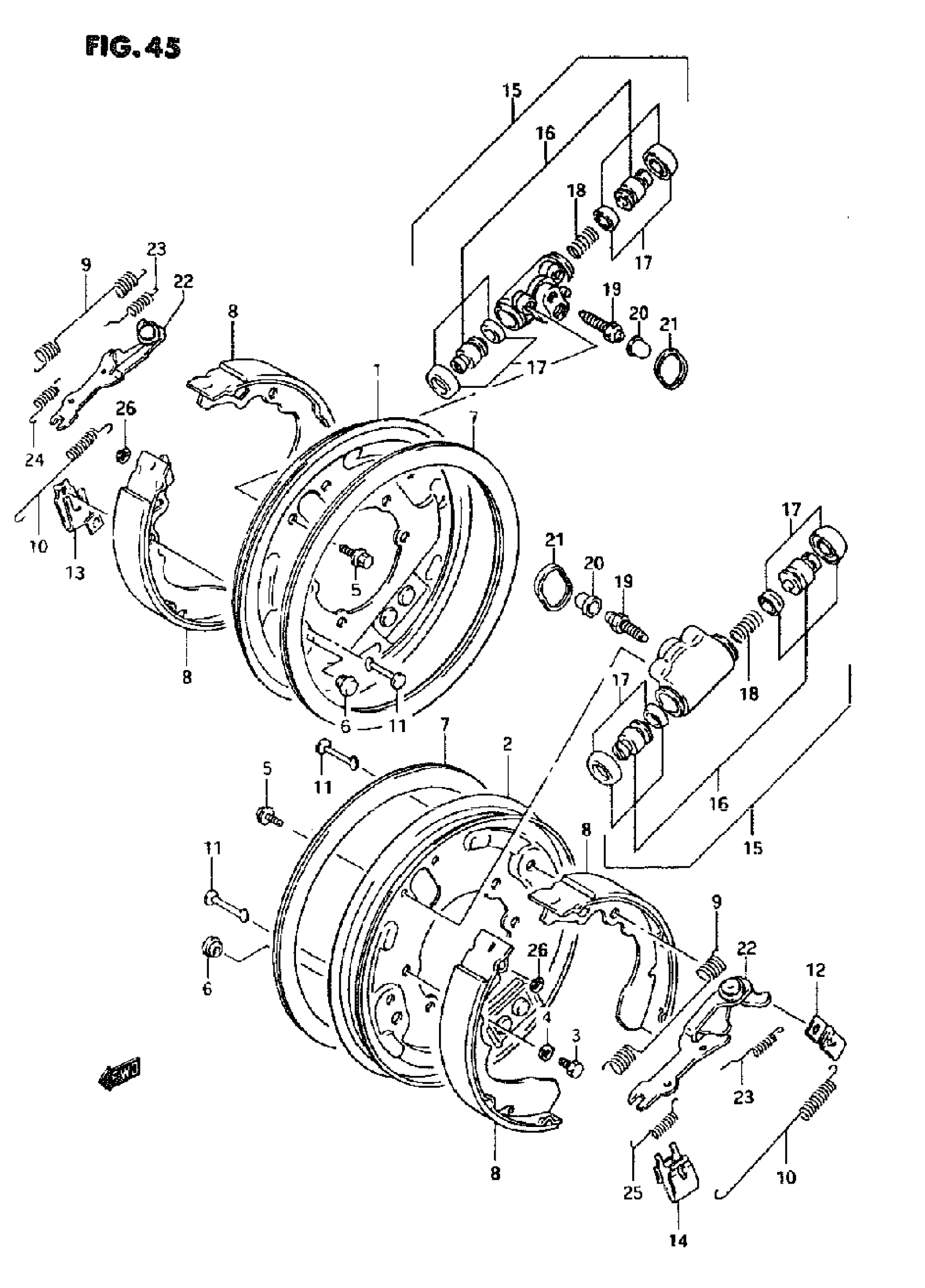

Suzuki LT-F250 (1995) FRONT WHEEL BRAKE (MODEL J/K/L) Diagram

#

Description
Price

1

PLATE, BACKING RH | MODEL J

54510-19B11

Unavailable

1

PLATE, BACKING RH | MODEL K/L

54510-19B20

Unavailable

2

PLATE, BACKING LH | MODEL J

54810-19B11

Unavailable

2

PLATE, BACKING LH | MODEL K/L

54810-19B20

Unavailable

3

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-31086.

08321-0108A

$1.84

5

BOLT This part replaces 53131-82030.

01550-0610A

$1.97

6

PLUG,BACKING PL This part replaces 53141-82030.

53141-84010

$2.45

7

COVER, FRONT BRAKE | MODEL J

54125-19B00

Unavailable

8

SHOE SET, BRAKE | ->54400-19830 This part replaces 54410-19B10.

54400-19830

$37.88

9

SPRING, SHOE RETURN UPPER This part replaces 54531-19B00.

54531-19B01

$8.38

10

SPRING, SHOE RETURN LOWER This part replaces 54532-19B00.

54532-19B01

$8.25

11

PIN. SHOE HOLD DOWN

53241-82030

$2.94

12

SPRING. SHOE HOLD DOWN

53243-85010

$5.13

13

SPRING, SHOE HOLD DOWN RH

53245-82031

$7.42

14

SPRING, SHOE HOLD DOWN LH

53244-82031

$7.52

15

CYLINDER ASSY, REAR WHEEL

54540-19B10

$94.47

16

PISTON SET

54500-19810

Unavailable

17

CUP SET, WHEEL CYLINDER

53400-82811

$15.10

18

SPRING, WHEEL CYLINDER

53432-82030

$3.58

19

PLUG, BLEEDER

54542-19B00

$6.91

20

CAP, BLEEDER

55156-66310

$5.17

21

GASKET, REAR WHEEL CYLINDER

53417-82030

$2.94

22

STRUT ASSY, BRAKE RH

54550-19B10

Unavailable

22

STRUT ASSY, BRAKE LH

54850-19B10

Unavailable

23

SPRING,QUADRANT This part replaces 53714-82030.

53714-8203V

$3.62

24

SPRING, ANTIRATTLE RH This part replaces 54524-19B00.

54524-56B00

$4.37

25

SPRING, ANTIRATTLE LH This part replaces 54824-19B00.

54824-56B00

$4.37

26

E RING This part replaces 53753-85010.

08332-1104A

$1.49
