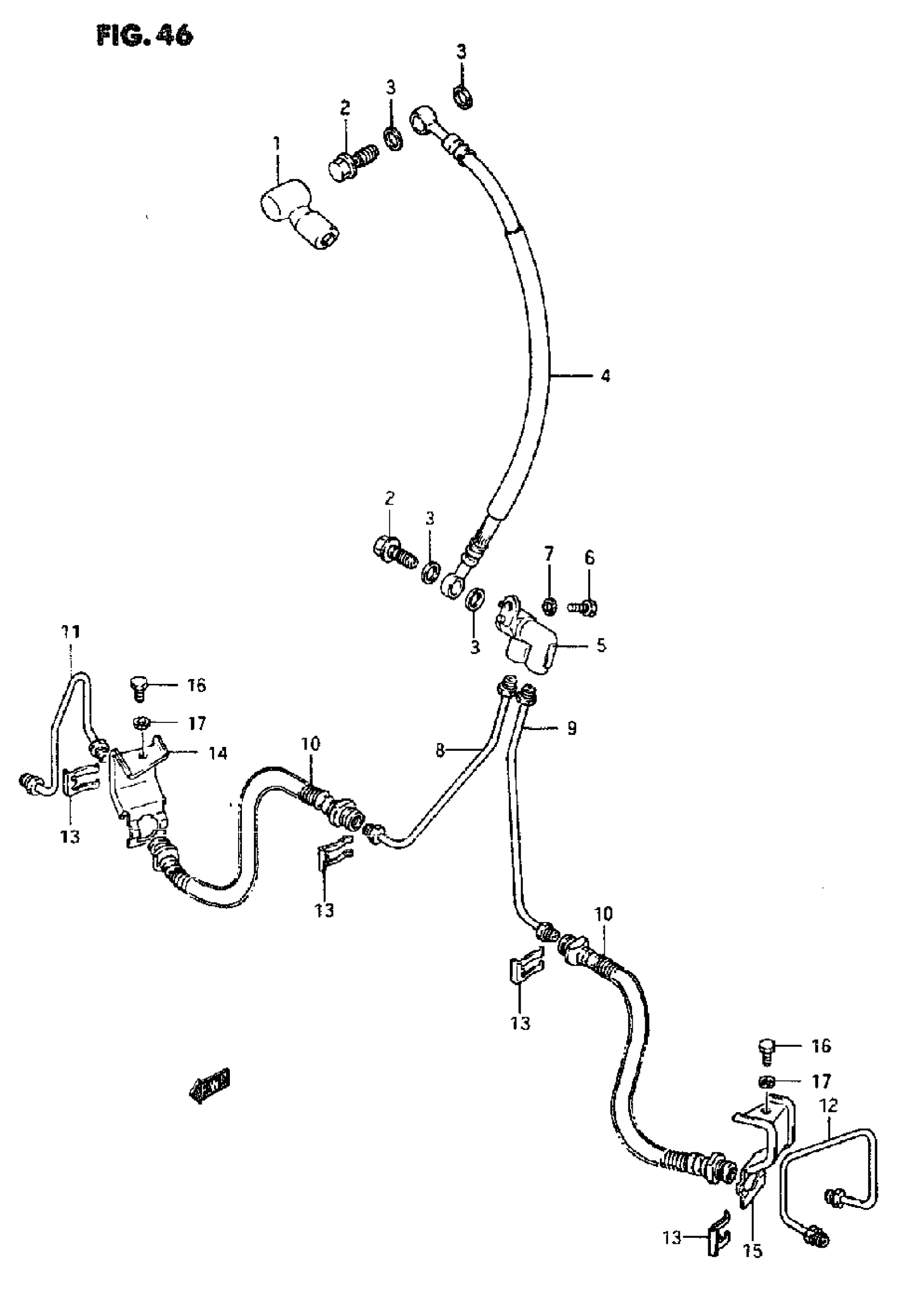

Suzuki LT-F250 (1995) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL | MODEL J/K/L/M/ This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT (10X1.00X24) | MODEL J/K/L/M/N/P

09360-10017

$3.42

2

UNION | MODEL R/S/T This part replaces 09360-10039.

09360-10061

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE This part replaces 59480-20B01.

59480-20B02

Unavailable

5

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

$53.33

6

BOLT | MODEL J/K/L This part replaces 01107-06166.

01500-0616A

$1.78

6

BOLT | MODEL M/N/P This part replaces 01134-06166.

01570-0616A

$2.23

6

BOLT | MODEL R/S/T This part replaces 01570-06163.

01570-0616A

$2.23

7

LOCK WASHER | MODEL J/K/L This part replaces 08321-21066.

08321-0106A

$1.84

8

PIPE, BRAKE NO.1 RH

59250-20B00

Unavailable

9

PIPE. BRAKE NO.1 LH

59450-20B00

Unavailable

10

HOSE, BRAKE NO.2

59240-20B01

Unavailable

11

PIPE, BRAKE NO.2 RH

59250-20B10

Unavailable

12

PIPE, BRAKE NO.2 LH

59450-20B10

Unavailable

13

E RING This part replaces 09383-13001.

09383-13003

$2.30

14

GUIDE, HOSE RH

59261-20B00

Unavailable

15

GUIDE, HOSE LH

59271-20B00

Unavailable

16

BOLT | MODEL J/K/L This part replaces 01107-06106.

01500-0610B

$1.81

16

BOLT | MODEL M/N/P

01134-06106

Unavailable

16

BOLT | MODEL R/S/T This part replaces 01570-06103.

01570-0610A

Unavailable

17

LOCK WASHER | MODEL J/K/L This part replaces 08321-21066.

08321-0106A

$1.84
