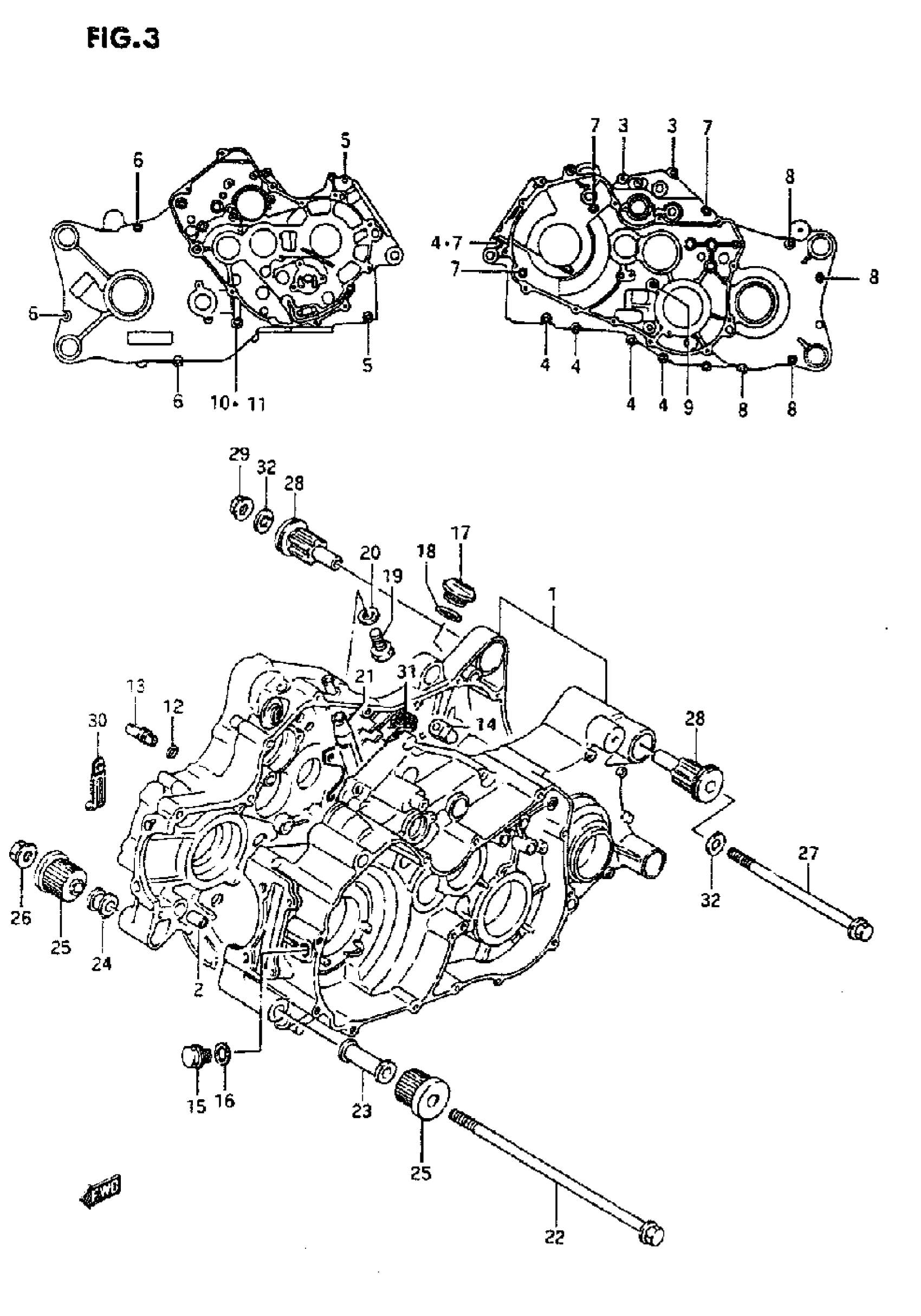

Suzuki LT-F250 (1995) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 11300-20880.

11301-20816

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 11300-20881.

11301-20816

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 11301-20810.

11301-20816

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 11301-20813.

11301-20816

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S/T This part replaces 11301-20814.

11301-20816

Unavailable

2

PIN (10.4XL3X22) | MODEL J/K/L/M/N/P

09206-13004

$2.40

2

PIN (10.4XL3XL8) | MODEL R/S/T

04211-13189

$2.19

3

BOLT | MODEL J/K/L/M/N/P

01547-06307

$2.03

3

BOLT, FINAL GEAR CASE | MODEL R/S/T This part replaces 01547-06303.

01547-0630B

$2.73

4

BOLT | MODEL J/K/L/M/N/P

01547-06407

$2.32

4

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT | MODEL J/K/L/M/N/P

01547-06457

$2.32

5

BOLT | MODEL R/S/T This part replaces 01547-06453.

01547-0645B

$2.73

6

BOLT | MODEL J/K/L/M/N/P

01547-06507

$2.41

6

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

$2.75

7

BOLT | MODEL J/K/L/M/H/P

01547-06657

$2.75

7

BOLT | MODEL R/S/T This part replaces 01547-06653.

01547-0665B

$3.18

8

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06907.

01547-0690B

$3.20

8

BOLT | MODEL R/S/T This part replaces 01547-06903.

01547-0690B

$3.20

9

BOLT This part replaces 09103-08072.

09103-08363

$9.00

10

BOLT (8X60)

09103-08217

$3.72

11

GASKET

09168-08021

$2.61

12

0 RING, OIL GALLERY JET

09280-04004

$1.91

13

JET, OIL GALLERY

09493-36004

$16.87

14

HOSE. BREATHER INLET | MODEL K

11329-19B30

Unavailable

15

PLUG. TDC

09247-14015

$4.45

16

GASKET

09168-14002

$2.26

17

CAP, OIL FILLER

09200-30810

$10.15

18

O RING (D:3.1,ID:26.4) | MODEL J/K/L/M/N/P/R This part replaces 09280-27002.

09280-26006

$2.76

18

0 RING | MODEL S/T

09280-26006

$2.76

19

BOLT | MODEL J/K/L/M/N/P This part replaces 01107-12208.

01500-1220B

$4.00

19

BOLT | MODEL R/S/T This part replaces 01500-12203.

01500-1220B

$4.00

20

GASKET

09168-12002

$1.59

21

PIPE, BREATHER | MODEL J

11380-19B02

Unavailable

21

PIPE, BREATHER | MODEL K/L/M/N/P/R/S/T INCLUDED 11301-20814 This part replaces 11380-19B30.

11380-19B41

Unavailable

22

BOLT (L2X300)

09103-12016

$26.28

23

SPACER (L:60)

11610-19B00

Unavailable

24

SPACER | MODEL J/K/L/M/N This part replaces 11611-19B10.

11611-19B13

$10.20

24

SPACER | MODEL P/R/S This part replaces 11611-19B12.

11611-19B13

$10.20

24

SPACER | MODEL T This part replaces 11611-17E00.

11611-19B13

$10.20

25

BUSH (L:39) | MODEL J This part replaces 11681-19B00.

11681-20B00

$33.93

25

BUSH (L:41) | MODEL K/L/M/N/P/R/S/T

11681-20B00

$33.93

26

NUT This part replaces 08319-31128.

08319-3112A

$3.76

27

BOLT (L0XL90) | MODEL J/K

09103-10155

Unavailable

27

BOLT (10X240) | MODEL L/M/N/P/R/S/T

09103-10221

$22.58

28

BUSH (L:85)

11650-19B10

$37.53

29

NUT, REAR SWGARM BRACKET | MODEL J/K This part replaces 09159-10058.

09159-10115

$3.55

29

NUT | MODEL L/M/N/P/R/S/T

09159-10047

$9.41

30

CLAMP | MODEL J/K This part replaces 09404-06413.

09404-06039

$1.74

31

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 11186-19B30.

11186-19B31

Unavailable

32

WASHER, KNUCKLE END | MODEL L/M/N/P This part replaces 08322-11104.

08322-0110A

$1.84

32

WASHER, KNUCKLE END | MODEL R/S/T This part replaces 08322-01103.

08322-0110A

$1.84
