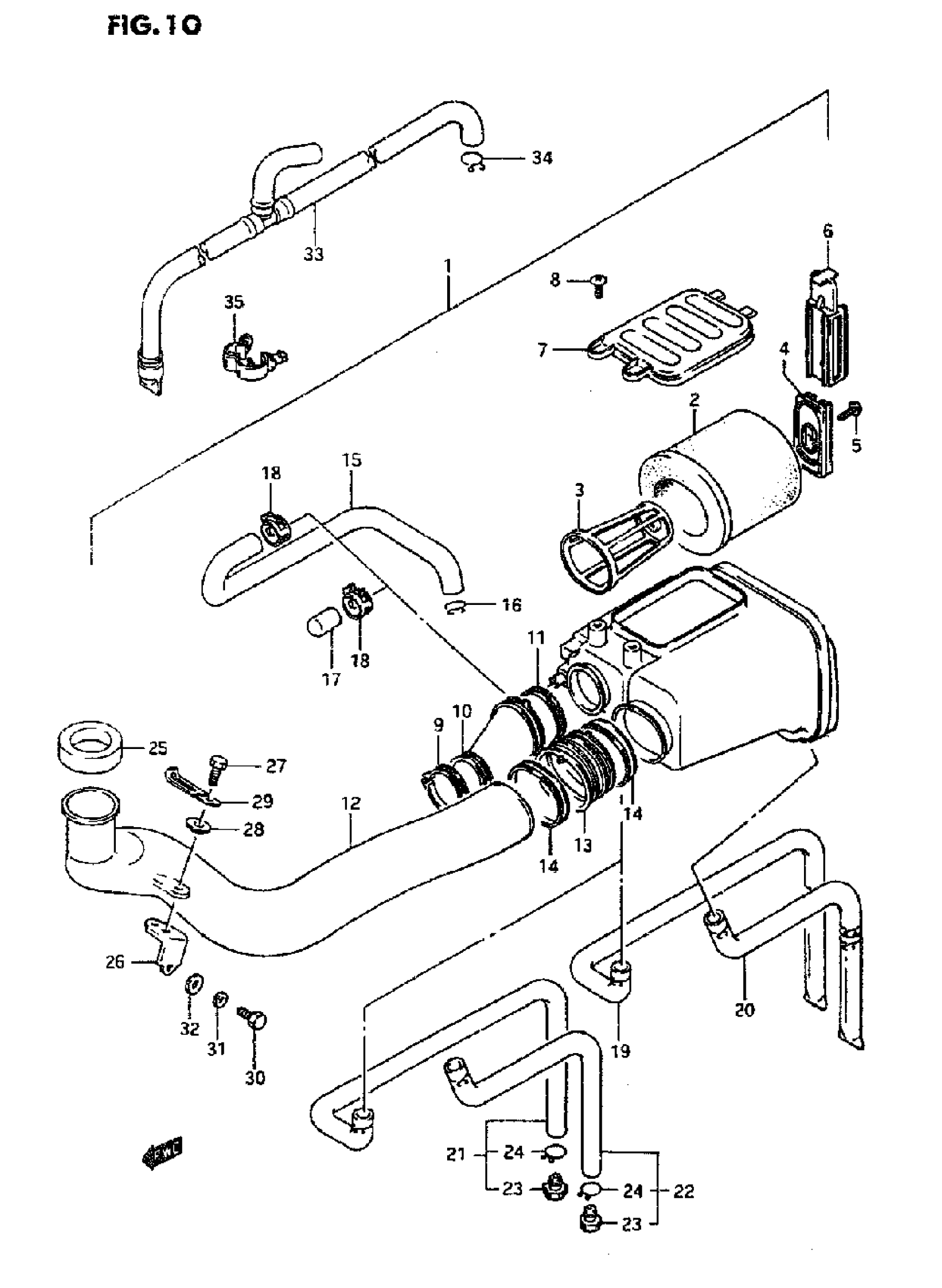

Suzuki LT-F250 (1995) AIR CLEANER (MODEL J\K\L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13700-19B10.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 13700-19B01.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 13700-19B51.

13700-39D01

Unavailable

2

FILTER

13781-19B00

$25.11

3

HOLDER This part replaces 13790-19B00.

13810-39D00

$23.33

4

GUIDE. SLIDER

13797-19B00

$3.41

5

SCREW This part replaces 02142-05164.

02142-0516A

$1.46

6

SLIDER

13798-33400

$9.84

7

CAP

13750-19B00

$15.44

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.41

9

CLAMP | MODEL J/K

09402-50208

$4.46

9

CLAMP | MODEL L This part replaces 09402-56208.

09402-56901

$4.99

10

TUBE, OUTLET | MODEL J/K This part replaces 13881-19B00.

13881-19B01

Unavailable

10

TUBE,OUTLET | MODEL L This part replaces 13881-19B20.

13881-19B21

$14.45

11

CLAMP | MODEL J/K

09402-58208

$4.99

11

..CLAMP | MODEL L

09402-60208

$4.75

12

TUBE, INLET This part replaces 13891-19B10.

13891-19B12

$112.88

13

JOINT This part replaces 13889-19B00.

13889-19B01

$13.97

14

CLAMP

13826-19B00

$7.85

15

TUBE. BREATHER | MODEL K/L

13853-19B00

Unavailable

16

CLIP | MODEL K

09401-14301

$2.17

16

CLIP | MODEL L

09401-14301

$2.17

17

.PLUG

13859-41B10

$7.26

18

CLIP This part replaces 13824-43400.

09401-14404

$2.38

19

TUBE ASSY, DRAIN | MODEL J/K This part replaces 13856-19B00.

13856-19B01

Unavailable

20

TUBE ASSY, DRAIN | MODEL J/K This part replaces 13870-19B00.

13870-19B80

Unavailable

21

TUBE ASSY, DRAIN | MODEL L

13856-19B01

Unavailable

22

TUBE ASSY, DRAIN | MODEL L This part replaces 13870-19B01.

13870-19B80

Unavailable

23

PLUG. DRAIN | MODEL L

13877-00190

$6.00

24

CLIP | MODEL L

09401-14301

$2.17

25

CAP, INLET

13892-19B00

$15.70

26

BRACKET

13761-19B00

$7.22

27

BOLT This part replaces 01107-06165.

01500-0616A

$1.82

28

SPACER

13838-02B00

$3.41

29

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.81

30

BOLT This part replaces 01107-06127.

01500-06127

$2.01

31

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89

32

WASHER This part replaces 08322-21067.

08322-01067

$1.93

33

TUBE , BREATHER | MODEL J

13850-19B11

Unavailable

34

CLIP | MODEL J

09401-14301

$2.17

35

CLAMP | MODEL J

09408-00112

Unavailable
