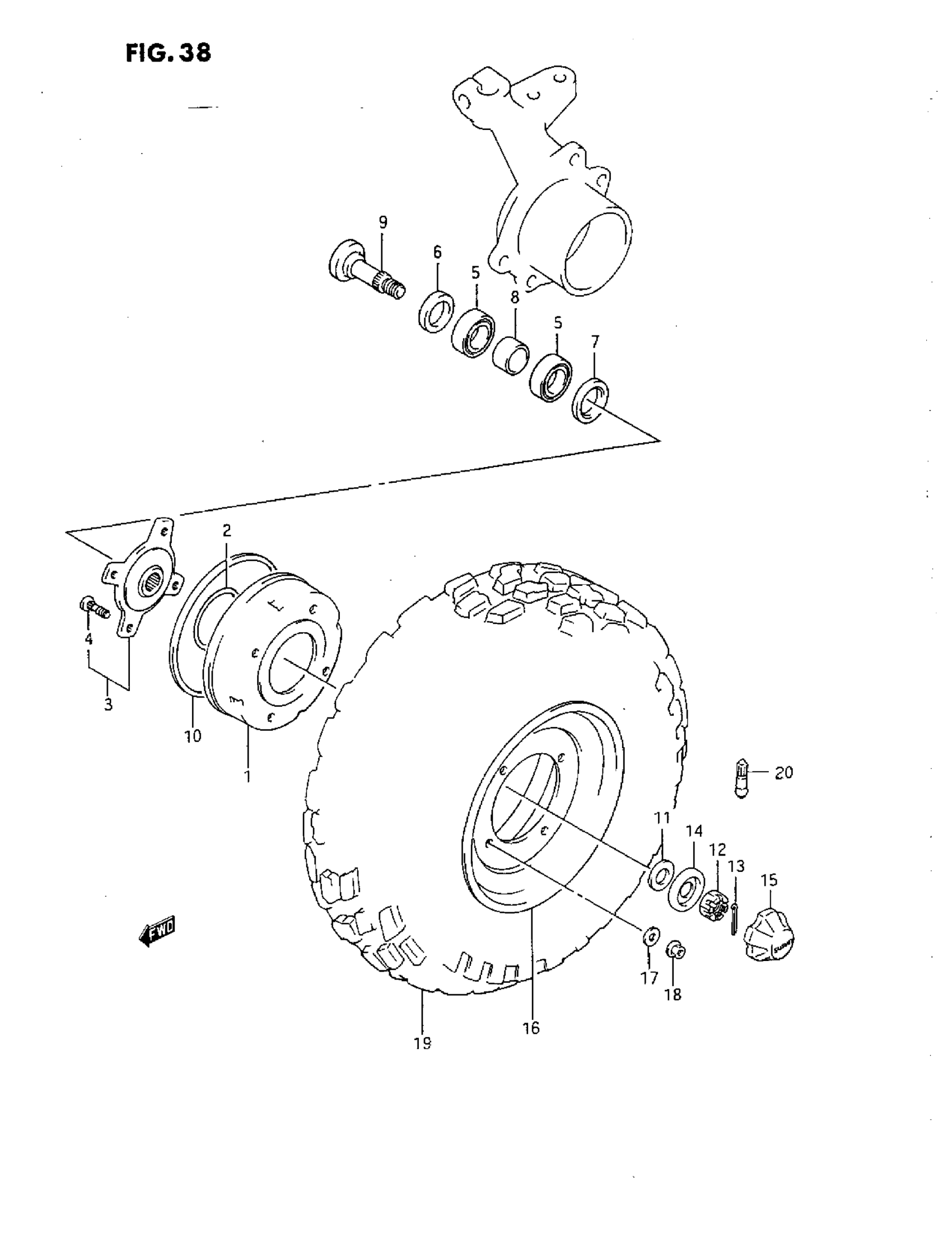

Suzuki LT-F250 (1993) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, BRAKE | MODEL J

54120-19B00

Unavailable

1

DRUM, BRAKE | MODEL K/L/M/N/P/R

54120-19B10

Unavailable

2

O-RING | MODEL K/L/M/N/P/R

09280-80001

$3.52

3

HUB, FRONT This part replaces 54110-19B00.

54110-19B01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.58

5

BEARING, FRONT HUB

08123-60067

$26.29

6

DUST SEAL, INNER | MODEL J/K/L/M/N/P 409283-38012 This part replaces 09283-38014.

09283-38012

$13.30

6

DUST SEAL, INNER | MODEL R

09283-38012

$13.30

7

DUST SEAL, OUTER

09283-38013

$10.86

8

SPACER, FRONT HUB

54731-19B00

$10.57

9

AXLE,FRONT This part replaces 54711-20B00.

54711-20B0V

Unavailable

10

DUST SEAL, DRUM BRAKE | MODEL J

54124-19B00

Unavailable

10

DUST SEAL, DRUM BRAKE | MODEL K/L/M/N/P/R

54124-19B10

$80.85

11

WASHER, HUB

09164-18004

$3.38

12

NUT, HUB | MODEL J/K/L/M/N/P ->09141 -18008 This part replaces 09141-18004.

09141-18008

$7.67

12

NUT, HUB | MODEL R

09141-18008

$7.67

13

PIN, COTTER | ->04111 -40408 This part replaces 04111-40356.

04111-4040A

$1.37

13

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

14

HOLDER, CENTER CAP

64726-19B00

$3.12

15

CAP, WHEEL CENTER | MODEL J/K/L/M/N/P This part replaces 54725-19B00.

54725-39D00

$13.90

15

CAP, WHEEL CENTER | MODEL R

54725-39D00

$13.90

16

RIM, FRONT WHEEL (SILVER)

55310-20B00-13L

Unavailable

17

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-21108.

08322-01107

$1.88

17

WASHER,10.5X22X | MODEL R This part replaces 09160-10119.

09160-10143

$2.37

18

NUT, WHEEL SET | MODEL J/K/L/M/N/P This part replaces 08316-16108.

08316-10107

$2.38

18

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.65

19

TIRE, T/L FRONT (AT22X8-10) | MODEL J/K This part replaces 55100-20B50.

55100-20B51

Unavailable

19

TIRE, T/L FRONT (AT22X8-10) (DUNLOP) | MODEL L/M/N/P/R

55100-20B51

Unavailable

20

VALVE ASSY, WHEEL RIM | ->43130 -78030 This part replaces 43130-75150.

43130-78030

$8.71

20

VALVE ASSY, WHEEL RIM

43130-78030

$8.71
