1987 Suzuki LT-F230 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

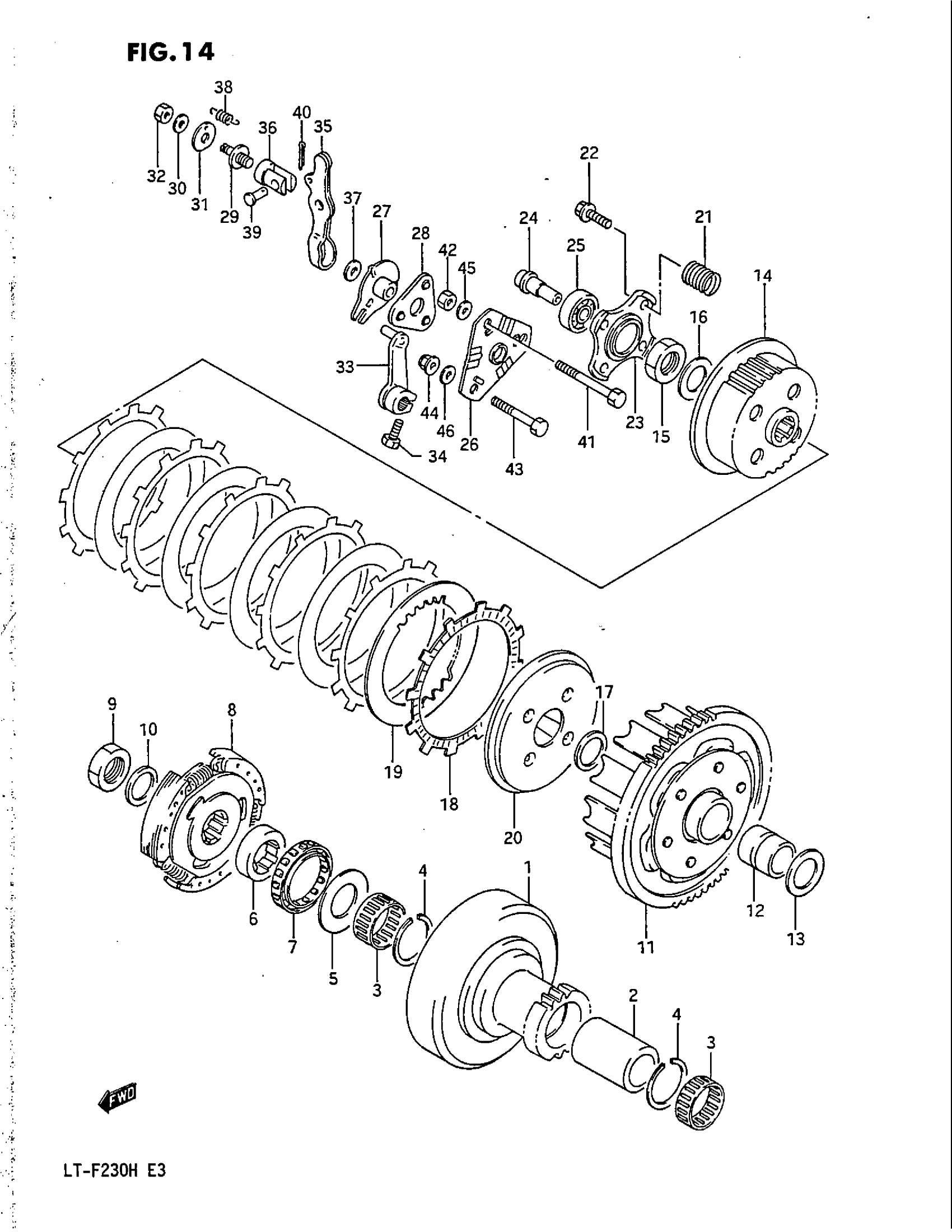

1987 Suzuki LT-F230 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (NT:22)

21110-18A01

1
Out of stock

2

SPACER

09180-22034

1
Out of stock

3

BEARING (28X32X16.8)

09263-28023

2
Out of stock

4

CIRCLIP

09381-33002

2
Out of stock

5

WASHER (22X48X2.5)

09160-22036

1
Out of stock

6

RACE, INNER

21631-18A00

1
Out of stock

7

CLUTCH, ONE WAY

21273-01401

1
Out of stock

8

SHOE CLUTCH ASS | MODEL G This part replaces 21500-18A01.

21500-19B01

1
Out of stock

8

SHOE CLUTCH ASS | MODEL H This part replaces 21500-18A02.

21500-19B01

1
Out of stock

9

NUT

09140-20013

1
Out of stock

10

LOCK WASHER

09164-20007

1
Out of stock

11

GEAR ASSY, PRIMARY DRIVEN | NT:69 This part replaces 21200-18A01.

21200-18A02

1
Out of stock

12

SPACER

09180-22035

1
Out of stock

13

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

1
Out of stock

14

HUB, CLUTCH

21410-18A00

1
Out of stock

15

NUT This part replaces 09140-20002.

09140-20001

1
Out of stock

16

WASHER

09164-20007

1
Out of stock

17

WASHER

08211-20323

1
Out of stock

18

PLATE, DRIVE This part replaces 21441-11900.

21441-22A01

6
Out of stock

19

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

5
Out of stock

20

DISC, PRESSURE

21462-24501

1
Out of stock

21

SPRING

09440-19017

4
Out of stock

22

BOLT This part replaces 01517-06208.

01550-06207

4
Out of stock

23

PLATE, RELEASE

21465-24500

1
Out of stock

24

PIECE, PUSH This part replaces 23121-18A01.

23121-18A03

1
Out of stock

25

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

1
Out of stock

26

GUIDE, BALL OUTER

23231-18A00

1
Out of stock

27

BALL GUIDE, INNER This part replaces 23211-18A01.

23211-18A02

1
Out of stock

28

BALL, RELEASE

23250-24500

1
Out of stock

29

BOLT, ADJUSTER

23223-18A00

1
Out of stock

30

WASHER (6.5X14X2.3) This part replaces 09160-06017.

09160-06127

1
Out of stock

31

WASHER

09169-06046

1
Out of stock

32

.NUT This part replaces 08310-22067.

08310-00067

1
Out of stock

33

ARM, RELEASE

23220-18A00

1
Out of stock

34

BOLT This part replaces 09100-06091.

01500-06207

1
Out of stock

35

ARM, RELEASE NO.2 This part replaces 23225-18A00.

23225-18A01

1
Out of stock

36

BOSS, RELEASE NO.2

23224-18A00

1
Out of stock

37

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

1
Out of stock

38

SPRING

09443-06053

1
Out of stock

39

PIN

09200-07005

1
Out of stock

40

PIN This part replaces 04111-16158.

04111-1620A

1
Out of stock

41

BOLT

09119-06064

2
Out of stock

42

.NUT This part replaces 08310-11067.

08310-00067

1
Out of stock

43

BOLT

09119-06063

1
Out of stock

44

NUT This part replaces 08313-21065.

08313-2006A

2
Out of stock

45

WASHER

08212-06121

1
Out of stock

46

SEAL, BOLT

09168-06023

1
Out of stock
