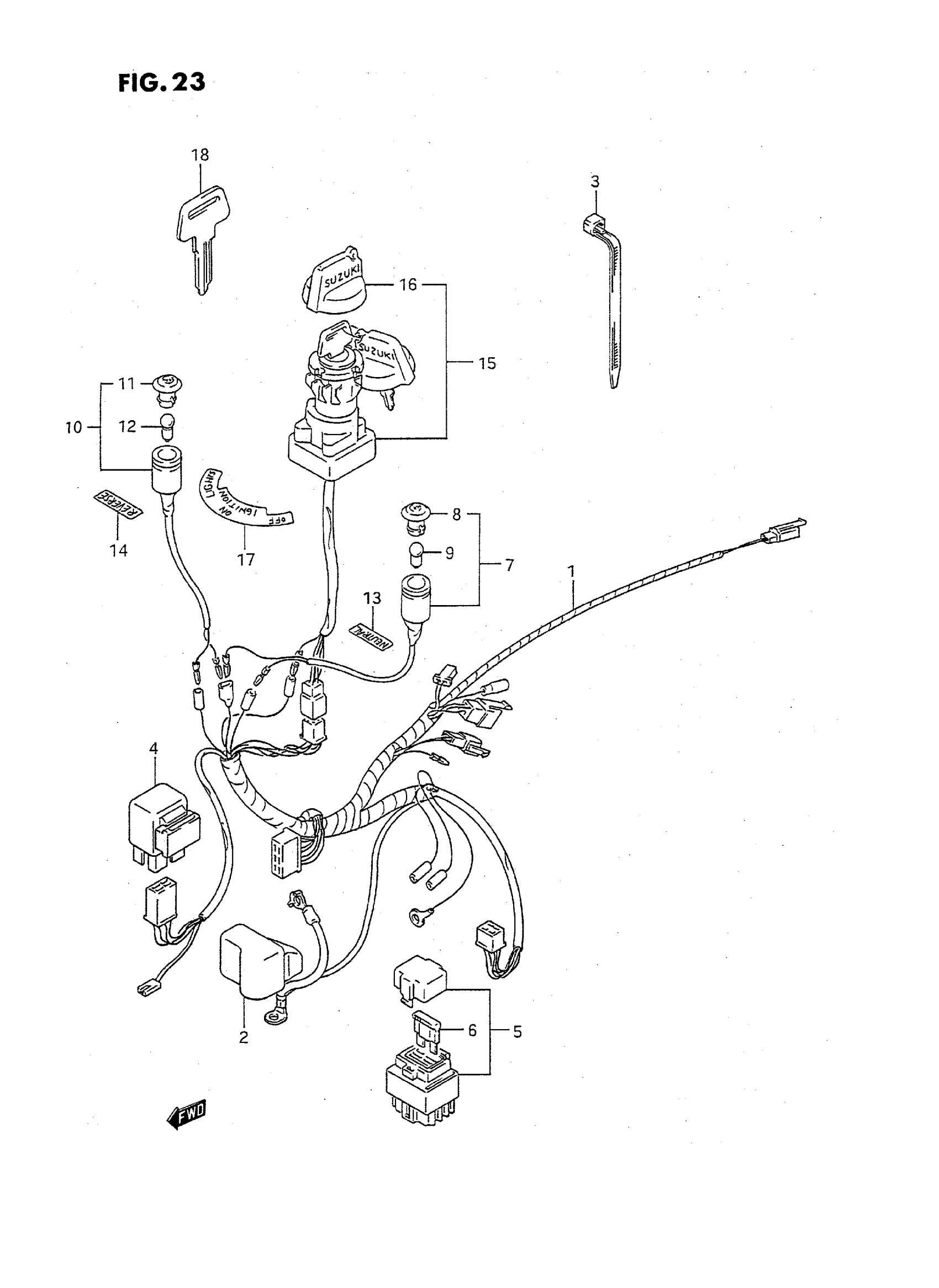

Suzuki LT-F160T (1996) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 2

36610-02C30

Unavailable

2

CAP, BATTERY (+) TERMINAL

33624-02C00

Unavailable

3

CLAMP (L:125) | MODEL M/N/P/R/S

09407-14403

$2.26

3

CLAMP (L:95) | MODEL T

09407-11401

$2.63

3

CLAMP (L:125) | MODEL M/N/P/R/S This part replaces 09407-144A3.

09407-14403

$2.26

3

CLAMP (L:125) | MODEL T

09407-14403

$2.26

3

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

3

CLAMP (L:235)

09407-25401

$4.66

4

RELAY, NEUTRAL START

38740-24X50

$45.20

5

BOX ASSY, POWER SOURCE FUSE | MODEL M/N/P/R This part replaces 36740-02C00.

36740-04701

$22.22

5

BOX ASSY, FUSE | MODEL S/T; Includes Item(s) 6

36740-04701

$22.22

6

FUSE (15A)

09481-15101

$2.53

7

LAMP ASSY, NEUTRAL | Includes Item(s) 8 - 9

36320-02C00

Unavailable

8

LENS

36321-43000

$4.96

9

BULB (12V,3.4W)

09471-12001

$1.65

10

LAMP ASSY, REVERSE | Includes Item(s) 11 - 12

36360-02C00

Unavailable

11

LENS

36361-43200

$5.32

12

BULB (12V,3.4W)

09471-12001

$1.65

13

LABEL, NEUTRAL

36367-02C00

$3.65

14

LABEL, REVERSE

36367-02C10

$3.65

15

SWITCH ASSY,IGN | Includes Item(s) 16 This part replaces 37110-02C00.

37110-02C01

$116.80

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

17

LABEL, CONTRAL IDENTIFICATION This part replaces 37139-02C00.

37139-02C01

$5.52

18

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

18

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07
