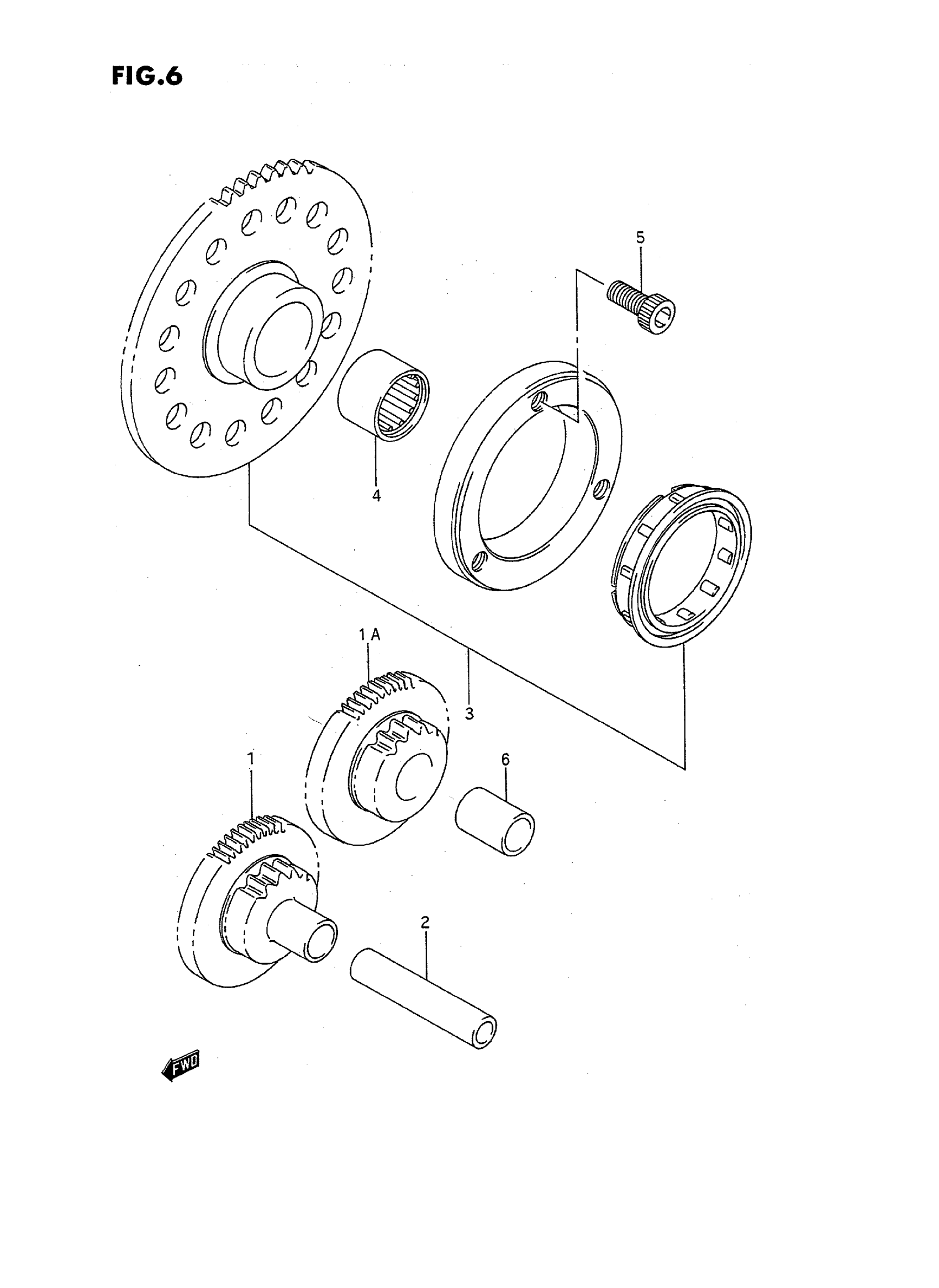

Suzuki LT-F160T (1996) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE | NT:17/61 MODEL M/N/P/R/S This part replaces 12611-35B01.

12611-35B10

$103.83

1A

GEAR, STARTER IDLE | NT:17/61 MODEL T

12611-35B10

$103.83

2

PIN

09206-13009

Unavailable

3

CLUTCH SET, STARTER | MODEL M/N/P This part replaces 12600-02830.

12600-02831

$272.72

3

CLUTCH SET, STARTER | MODEL R/S/T; Includes Item(s) 4

12600-02831

$272.72

4

BEARING

09263-22037

$26.60

5

BOLT | MODEL M/N/P This part replaces 09106-08043.

07130-0816A

$3.16

5

BOLT | MODEL R/S/T This part replaces 07130-08163.

07130-0816A

$3.16

6

SPACER | MODEL T

09180-13006

$4.92
