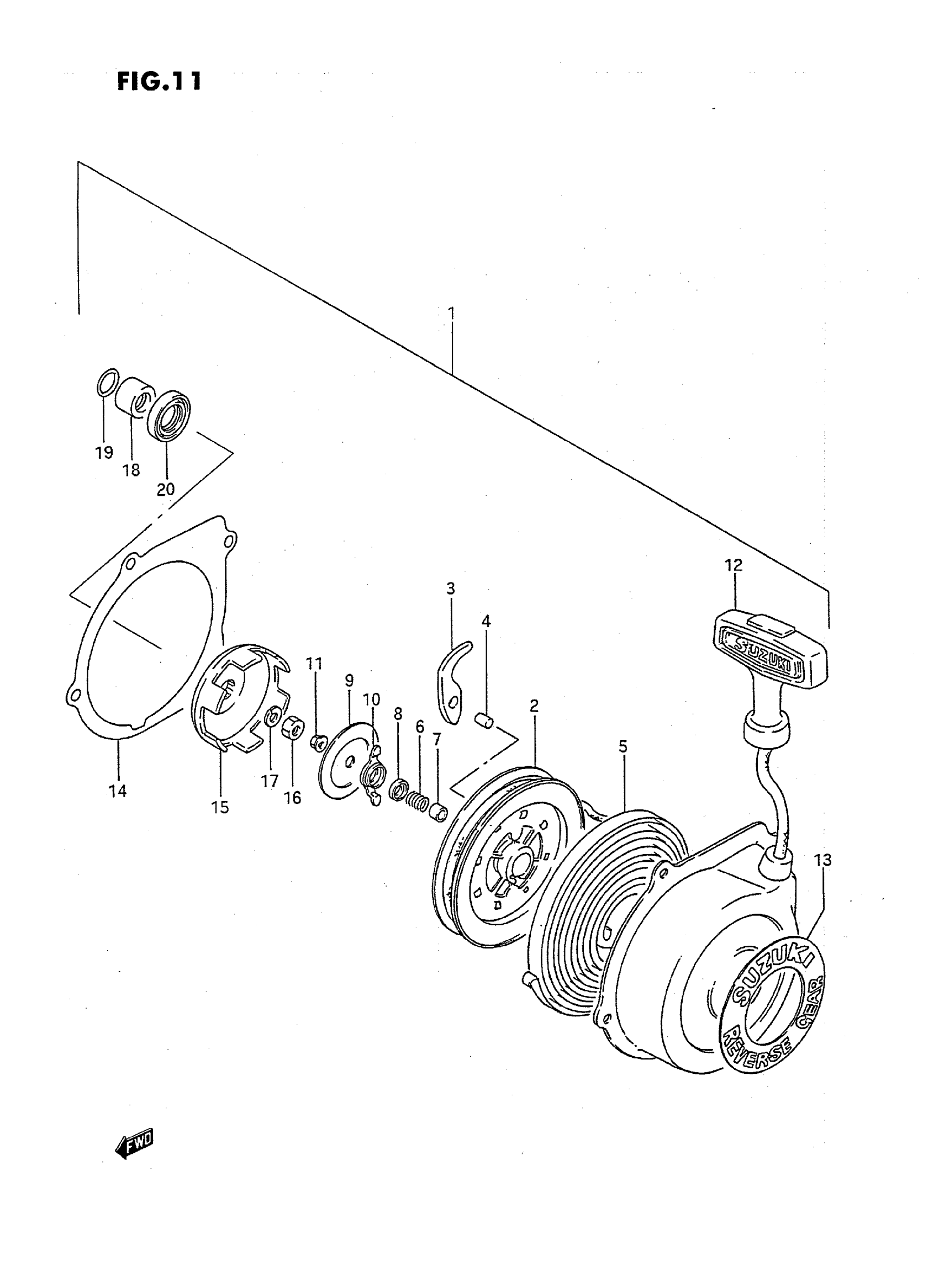

Suzuki LT-F160T (1996) RECOIL STARTER (OPTIONAL) Diagram

#

Description
Price

1

STARTER SET, RECOIL | Includes Item(s) 2 - 20 This part replaces 18000-35B00.

18000-02820

$199.05

2

REEL

18120-24400

$33.83

3

RATCHET

18131-24411

$9.17

4

PIN, RATCHET

18344-24400

Unavailable

5

.SPRING,SPIRAL

18142-24400

$27.09

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$22.50

10

..GUIDE,RATCHET

18132-24400

$2.80

11

NUT | MODEL M/N/P/R This part replaces 18334-24400.

08316-1006B

$2.50

11

NUT | MODEL S/T This part replaces 08316-10063.

08316-1006B

$2.50

12

ROPE ASSY

18200-24400

$32.26

13

EMBLEM

68398-24410

$18.33

14

GASKET, RECOIL STARTER

18299-18A00

$6.00

15

CUP, STARTER

18411-18A03

Unavailable

16

NUT | MODEL M/N/P

08310-00107

$2.19

16

NUT | MODEL R/S/T This part replaces 08310-00103.

08310-0010A

$1.86

17

LOCK WASHER | MODEL M/N/P

08321-01107

$1.83

17

LOCK WASHER | MODEL R/S/T This part replaces 08321-01103.

08321-0110A

$1.86

18

SPACER

12359-18A02

$23.08

19

O RING (D:1.9,ID:12.6) | MODEL M/N/P/R This part replaces 09280-13007.

09280-12009

$2.87

19

O RING | MODEL S/T

09280-12009

$2.87

20

OIL SEAL (22X35X7)

09289-22008

$20.93
